YEARS: 2017-PRESENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
For more information log onto www.curtmfg.com & for helpful towing tips log onto www.hitchinfo.com
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
TORQUE
WRENCH
RATCHET
8mm
10mm
21mm
TORXBIT
T25
SOCKET
SOCKET
MASKING
PLASTIC PRY
TAPE
TOOL
SAFETY
GLASSES
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
CURT Manufacturing LLC. may repair or replace the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product
SCAN FOR
voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
MORE INFO
For more information log onto www.curtmfg.com , & for helpful towing tips log onto www.hitchinfo.com
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
13291

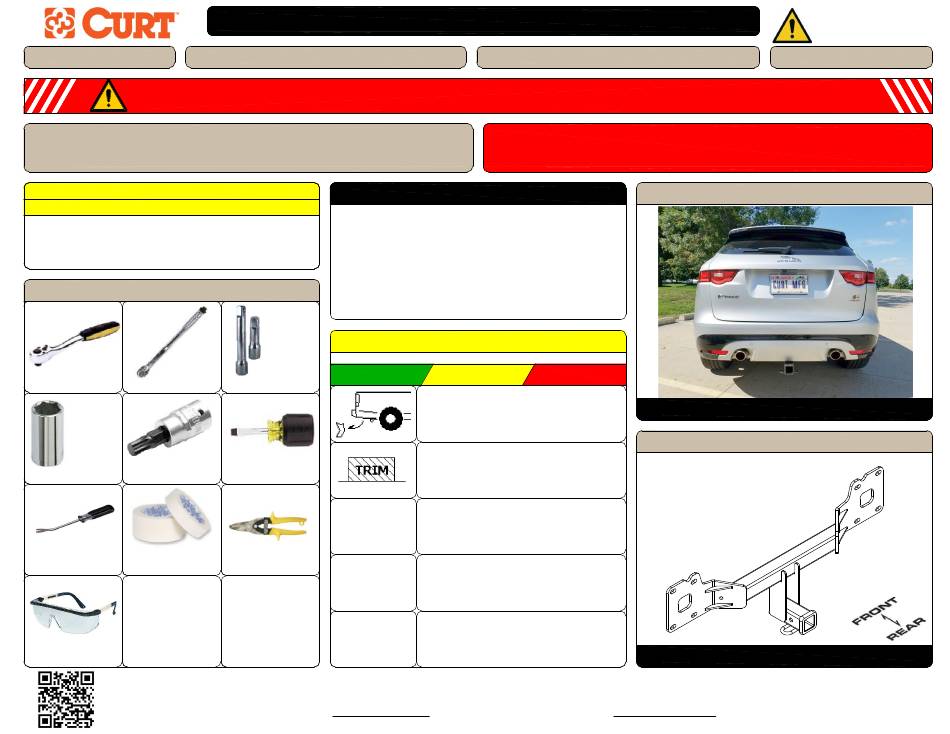

INSTALLATION INSTRUCTIONS
JAGUAR
TRAILER WEIGHT:
6,000
TONGUE WEIGHT:
900
60
MIN.
INSTALLATION TIPS:
120 MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
6"
LEVEL OF DIFFICULTY:
SOCKET
EASY
EXTENSION
PART REMOVAL
SCREW
DRIVER
AVIATION
SHEARS
MODEL: F-PACE
WARNING:
LBS.
WE RECOMMEND THE USE OF 18050 STABILIZING STRAPS FOR ALL NON-TRAILER
(WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT
LBS.
WWW.CURTMFG.COM FOR FURTHER INFORMATION.
MODERATE
MODERATE
CHALLENGING
TEMPORARILY REMOVE
UNDERBODY PANEL
AND BUMPER FASCIA
TRIMMING REQUIRED
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO
HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
CUV
9/16/2016
Advertisement
Table of Contents
Related Manuals for curt 13291
Summary of Contents for curt 13291
- Page 1 PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT Manufacturing LLC.
- Page 2 INSTALLATION WALKTHROUGH: 1. On the underbody panel, remove (3) screws using a 10mm socket and (4) screws using a screwdriver. Once removed, mark out a 3.25" x 6" section using masking tape and trim using aviation shears. Set aside for later reinstallation. NOTE: Dimensions are approximate, confirm prior to reinstallation.
- Page 3 INSTALLATION WALKTHROUGH: 3. Locate and remove plastic cover next to each tail light 5. Locate along the panel and remove (5) screws using an 8mm socket. Next locate and remove (8) M14 bolts, (4) revealing (1) screw and remove using an 8mm socket. Locate on each side (1) plastic screw and remove using on each side of the bumper beam using a 21mm socket.
- Page 5 CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Scan If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, for more with proof of purchase.
