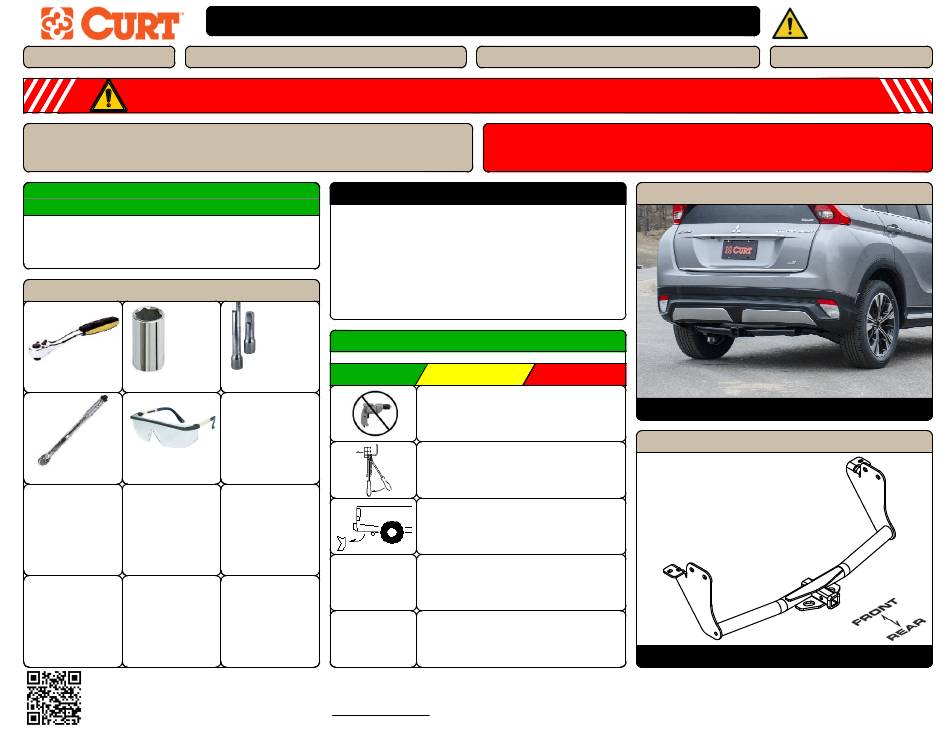

YEARS: 2018-PRESENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
For more information log onto www.curtmfg.com & for helpful towing tips log onto www.hitchinfo.com
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
14mm
17mm
3/4"
RATCHET
SOCKET
TORQUE
SAFETY
WRENCH
GLASSES
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
CURT Manufacturing LLC. may repair or replace the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product
SCAN FOR
voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
MORE INFO
For more information log onto www.curtmfg.com
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.
12154
INSTALLATION INSTRUCTIONS
MITSUBISHI
TRAILER WEIGHT:
LBS.
3500
TONGUE WEIGHT:
350
LBS.
25
MIN.
MIN.
INSTALLATION TIPS:
60
MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
6"
LEVEL OF DIFFICULTY:
SOCKET
EASY
EXTENSION
PART REMOVAL
MODEL: ECLIPSE CROSS
WARNING:
ALL NON-TRAILER (WHEEL-LESS) LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED
BY 18050 STABILIZING STRAPS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT
WWW.CURTMFG.COM FOR FURTHER INFORMATION.
EASY
MODERATE
CHALLENGING
NO DRILLING REQUIRED
TEMPORRAILY LOWER
EXHAUST (3 RUBBER
HANGERS)
REMOVE TOW LOOP
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO
HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
CUV
4/4/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for curt 12154
Summary of Contents for curt 12154
- Page 1 PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT Manufacturing LLC.
- Page 2 HEX FLANGE NUT rubber hangers. M10 - 1.25 x 25 HEX BOLT 3/8" CONICAL TOOTHED WASHER 12154-SP SPACER DRIVER SIDE FRAME RAIL DESIGNED FOR USE WITH BALL MOUNT # 45521 2. If present, remove the tow loop on the passenger side of the vehicle frame.
- Page 3 INSTALLATION WALKTHROUGH: 3. Place (2) bolts through each 12154-SP plate and install 5. Torque all 10mm fasteners to 48 lb-ft and all 1/2" fasteners thought the frame as shown in the diagram above. to 110 lb-ft. Temporary removal of the (1) fastener supporting the canster on the driver side frame rail will aid access but is not required.
- Page 5 CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Scan If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, for more with proof of purchase.
