YEARS: 2015-PRESENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
WEIGHT CARRYING:
PRO INSTALL TIME:
NOVICE INSTALL TIME:
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
TORQUE
RATCHET
WRENCH
MASKING
TAPE
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
SCAN FOR
CURT Manufacturing LLC. may repair or replace the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product
MORE INFO
voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
13118

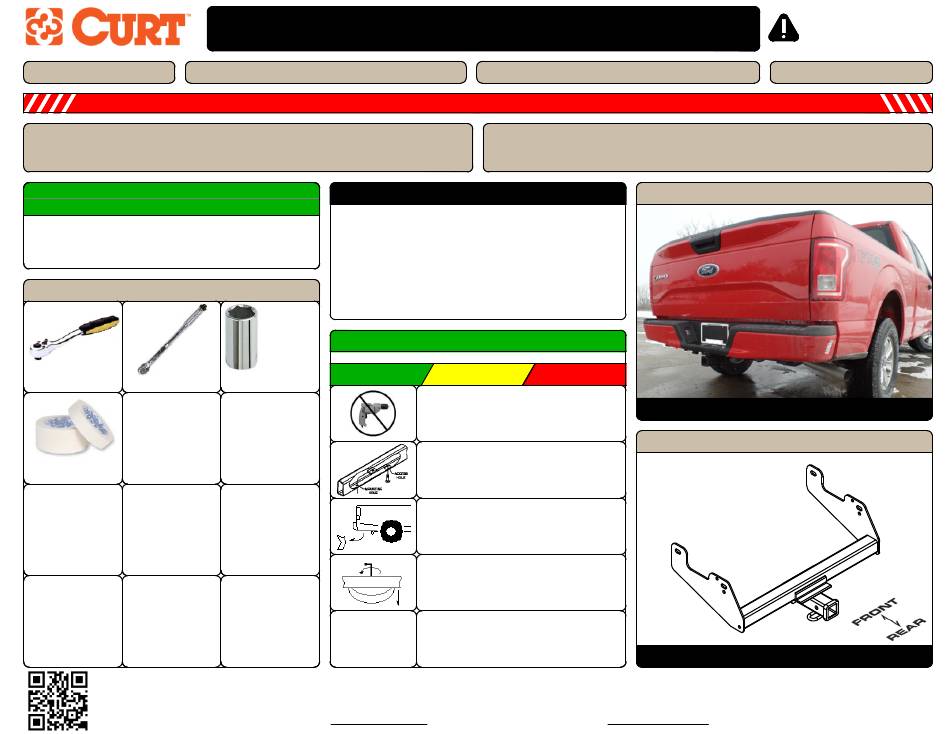

INSTALLATION INSTRUCTIONS
FORD
TRAILER WEIGHT:
6,000
LBS.
TONGUE WEIGHT:
900
LBS.
25
MIN.
INSTALLATION TIPS:
50
MIN.
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
15/16"
13mm
LEVEL OF DIFFICULTY:
10mm
EASY
SOCKET
PART REMOVAL
MODEL: F-150
WEIGHT DISTRIBUTION:
EASY
MODERATE
CHALLENGING
NO DRILLING REQUIRED
FISHWIRING REQUIRED
IF PRESENT TEMPORARILY
REMOVE GROUND CABLE
LOWER SPARE TIRE
Safety glasses should be
worn at all times while
installing this product .
STYLE:
10,000
TRAILER WEIGHT:
LBS.
1,000
TONGUE WEIGHT:
LBS.
VEHICLE PHOTO:
REPRESENTATIVE PHOTO

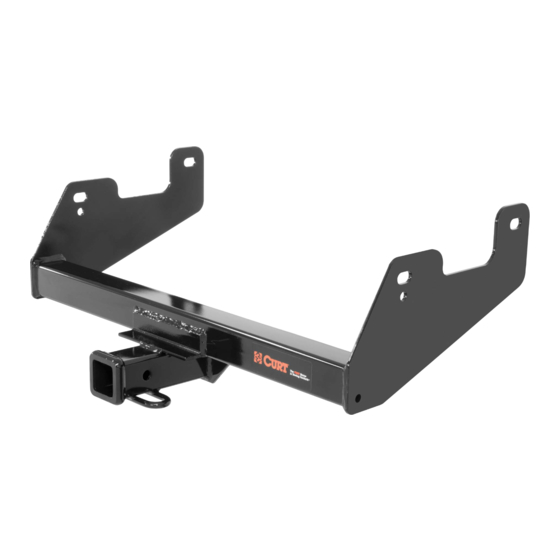

HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
TRUCK
4/7/2015
Advertisement
Related Manuals for curt 13118
Summary of Contents for curt 13118
- Page 1 PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, SCAN FOR CURT Manufacturing LLC.
-
Page 2: Installation Walkthrough
INSTALLATION WALKTHROUGH: 1. If present, remove the grounding cable from Parts List ITEM PART NUMBER DESCRIPTION the rear of the passenger side frame rail. CM-SP27 .188 x 1.00 x 2.00" U-SHAPE SPACER Return fastener to owner. Lower spare tire CM-SP9 .250 x 1.25 x 2.50"... - Page 3 INSTALLATION WALKTHROUGH: 3. Fishwire (2) 5/8" carriage bolts and spacers 5. Torque all 5/8" fasteners to 210 lb-ft. through either an access hole or the end of the frame rail. Leave them in the frame with the Raise spare tire back into position. fishwires attached.
-
Page 5: Installation Steps
CURT Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. Scan If the product is found to be defective, CURT Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, for more with proof of purchase.
