curt 14374 Installation Instructions

14374 DODGE RAM 1500 WITHOUT OEM HITCH
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT DISTRIBUTION HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***

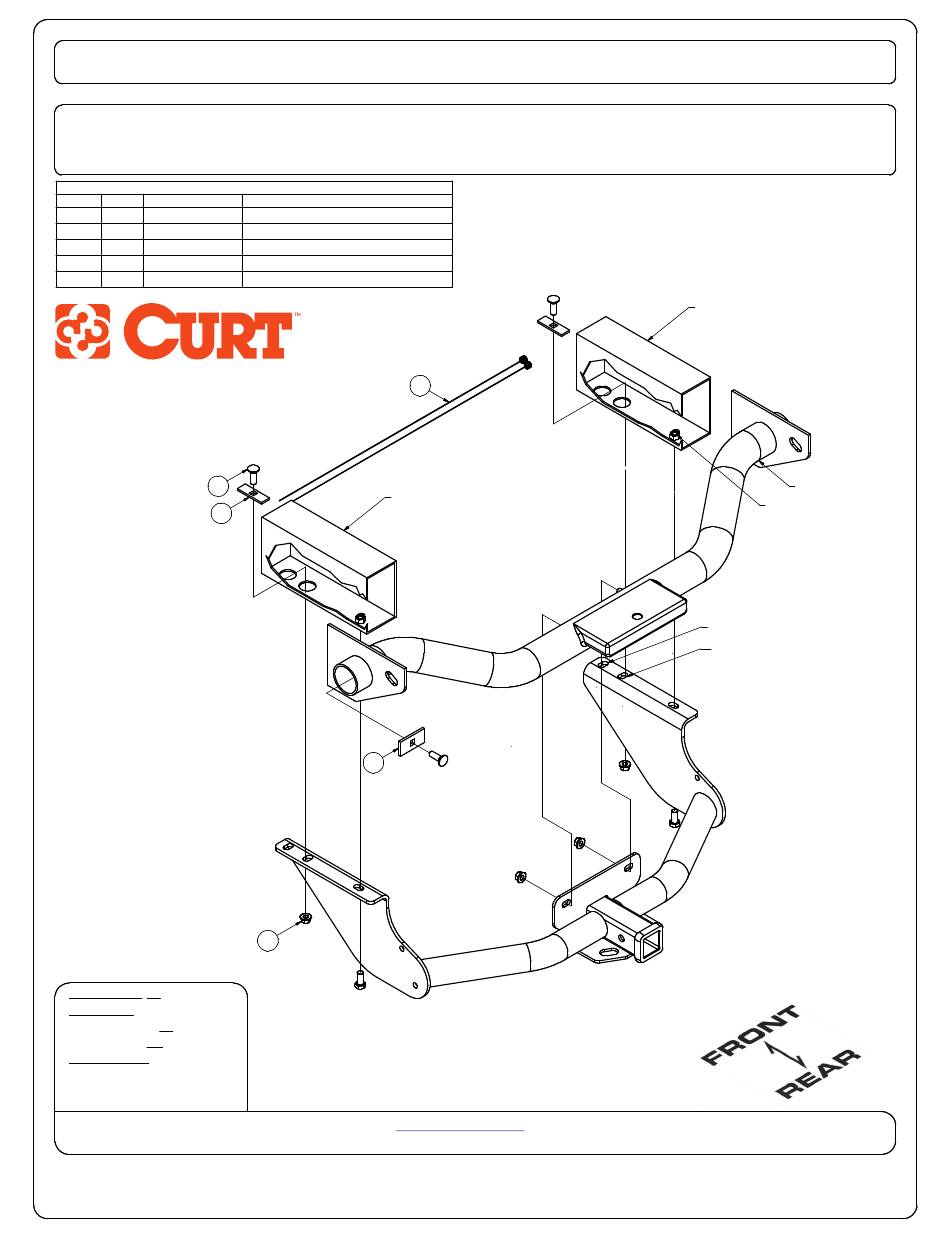

Parts List

ITEM QTY PART NUMBER
1 2 CM-SP4
2 2 CM-SP40
3 4 HFN 1213
4 4 1/2-13 x 1 1/2
5
2 1_2 x 30 FISHWIRE
4
2
HITCH WEIGHT: 49 LBS.
INSTALL TIME
PROFESSIONAL: 30 MINUTES
NOVICE (DIY): 60 MINUTES
INSTALL NOTES:
-NO DRILLING REQUIRED
-FISHWIRE HARDWARE
-LOWER SPARE TIRE
-REMOVE EXISTING BOLTS
PERIODICALLY CHECK THIS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
DESCRIPTION
.250 x 1.50 x 3.00" SQUARE HOLE SPACER
.188 x 1.00 x 3.00" SQUARE HOLE SPACER
HEX FLANGE NUT
CARRIAGE BOLT
1/2" x 30" FISHWIRE
5
DRIVER SIDE
FRAME RAIL
1
3
RECEIVER HITCH
10,000 LBS. TRAILER WEIGHT &
12,000 LBS. TRAILER WEIGHT &
TO ENSURE THAT ALL FASTENERS
1,000 LBS. TONGUE WEIGHT.
1,200 LBS. TONGUE WEIGHT
PASSENGER SIDE
FRAME RAIL
EXISTING BUMPER BEAM
EXISTING WELDNUT
(BOTH SIDES)
FOR LONG BEDS
FOR SHORT BEDS
