YEARS: 2012-PRESENT
MAKE:
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
WEIGHT CARRYING:
INSTALLATION TIME:
THE
INSTALL TIME LISTED IS FOR PROFESSIONAL
INSTALLERS. IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
CURT INSTALLER FOR ADDITIONAL ASSISTANCE.
INSTALLATION REQUIRES:
TORQUE
RATCHET
WRENCH
9/16"
11/16"
DIE GRINDER
SOCKET
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC. may repair or replace
the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. Curt Manufacturing LLC.'s liability is limited to repair or replacement
of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com
11291

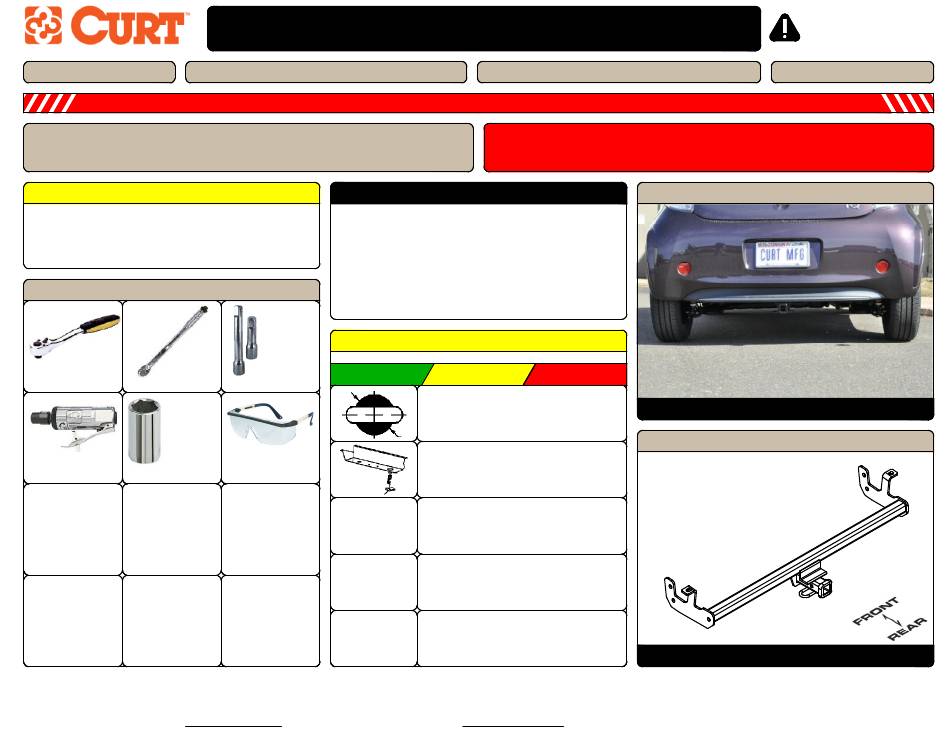

INSTALLATION INSTRUCTIONS
SCION
TRAILER WEIGHT:
LBS.
1,000
TONGUE WEIGHT:
150
LBS.
20
MIN.
INSTALLATION TIPS:
1. BEFORE YOU BEGIN INSTALLATION, READ ALL
INSTRUCTIONS THOROUGHLY.
2. TO EASE INSTALLATION, 2 PEOPLE MAY BE
REQUIRED.
3. USING PROPER TOOLS WILL GREATLY IMPROVE
THE QUALITY OF THE INSTALL AND REDUCE THE
TIME REQUIRED.
4. NEED HELP OR HAVE SOME QUESTIONS?
CALL TECHNICAL SUPPORT AT 800.798.0813
6"
LEVEL OF DIFFICULTY:
SOCKET
EASY
EXTENSION
SAFETY
GLASSES
MODEL: iQ
WARNING:
WE RECOMMEND THE USE OF 18050 STABILIZING STRAPS FOR ALL NON-TRAILER
(WHEEL-LESS) LOADS. PLEASE SEE THE CURT CATALOG OR VISIT US ONLINE AT
WWW.CURTMFG.COM FOR FURTHER INFORMATION.
MODERATE
MODERATE
CHALLENGING
- HOLE ENLARGEMENT
- FISHWIRE HARDWARE
Safety glasses should be
worn at all times while
installing this product .
STYLE:
VEHICLE PHOTO:
REPRESENTATIVE PHOTO
HITCH ILLUSTRATION:
MAKE SURE YOUR HITCH MATCHES
COMPACT
3/22/2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for curt 11291
Summary of Contents for curt 11291
- Page 1 CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC. may repair or replace...
- Page 2 INSTALLATION WALKTHROUGH: 1. Enlarge existing hole to allow 7/16" carriage bolts and Parts List SP7 spacers to pass through, both sides. ITEM PART NUMBER DESCRIPTION 7/16-14 HEX FLANGE NUT 3/8-16 X 1 1/2 HEX BOLT 3/8" WASHER 7/16-14 x 1 1/2 CARRIAGE BOLT ENLARGED ACCESS HOLE NOTE: ENLARGE EXISTING...
- Page 3 INSTALLATION WALKTHROUGH: 3. Raise hitch into position and loosely secure to carriage 5. Torque all 7/16" hardware to 70 ft-lbs. bolts using 7/16" hex flange nuts. Note: The side plates Torque all 3/8" hardware to 45 ft-lbs. will slide between the inside of the tow loops. 4.
- Page 4 ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND. Curt Manufacturing LLC., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing LLC., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase.
