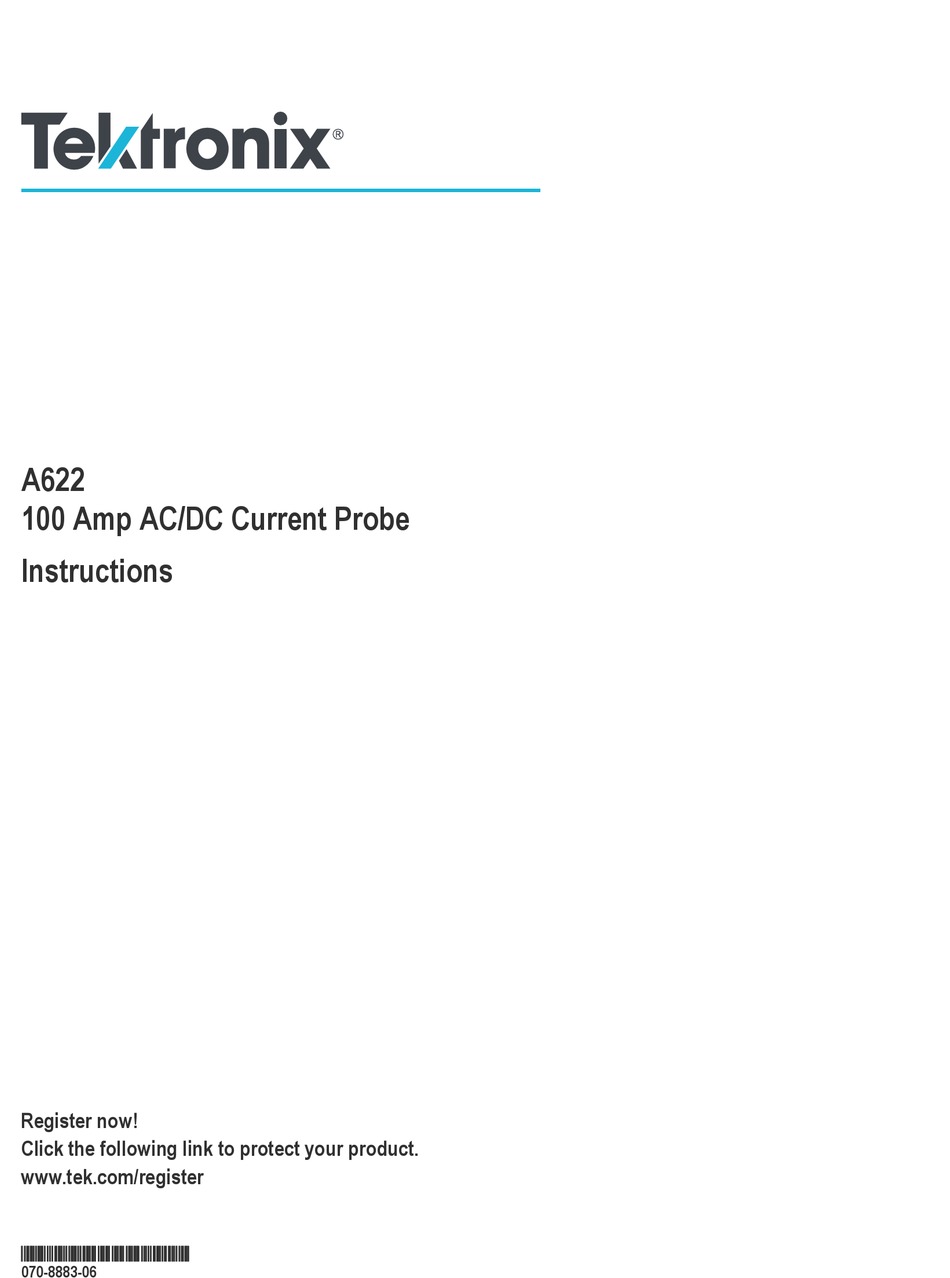

- Page 1 A622 100 Amp AC/DC Current Probe Instructions Register now! Click the following link to protect your product. www.tek.com/register *P070888306* 070-8883-06...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved.
-
Page 3: Important Safety Information
Be aware that condensation may occur if a unit is moved from a cold to a warm environment. Do not operate in an explosive atmosphere. Keep product surfaces clean and dry. Remove the input signals before you clean the product. A622 100 Amp AC/DC Current Probe Instructions... -
Page 4: Service Safety Summary
DANGER indicates an injury hazard immediately accessible as you read the marking. • WARNING indicates an injury hazard not immediately accessible as you read the marking. • CAUTION indicates a hazard to property including the product. A622 100 Amp AC/DC Current Probe Instructions... -
Page 5: Symbols On The Product
(This symbol may also be used to refer the user to ratings in the manual.) The following symbols(s) may appear on the product. A622 100 Amp AC/DC Current Probe Instructions... -
Page 6: Compliance Information
Products should be used only in the environment for which they are rated. • Pollution Degree 1. No pollution or only dry, nonconductive pollution occurs. Products in this category are generally encapsulated, hermetically sealed, or located in clean rooms. A622 100 Amp AC/DC Current Probe Instructions... -
Page 7: Environmental Compliance
This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2012/19/EU and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Tektronix Web site (www.tek.com/productrecycling). A622 100 Amp AC/DC Current Probe Instructions... -
Page 8: Getting Started
Overview The A622 current probe enables a general purpose oscilloscope to display AC and DC current signals up to 100 amps Peak (70 A RMS). The A622 current probe can also make AC and DC measurements with a multimeter by using the BNC-to-banana plug adapter available as a recommended accessory (see on page 15). -
Page 9: Operating Basics
2. Move the OFF/Range switch to the 10 mV/A or 100 mV/A position to power on the probe. The A622 current probe has a green LED power/battery indicator. If the LED does not light, replace the battery. 3. Use the ZERO adjustment to zero or offset the probe output. - Page 10 To increase the measurement sensitivity of the A622 current probe, loop additional turns of the wire under test through the jaws. See on page 10. The sensitivity of the A622 current probe is multiplied times the number of loops in the jaws. For example: 10 mV/A Figure 4 ×...
-
Page 11: Maintenance
Table 2 on page 12. As the battery in the A622 current probe is drained, significant gain errors can occur. The green LED will continue to light until a low battery voltage of 6.5 V is reached. If probe gain errors are detected, replace the battery with a fresh one. -
Page 12: Specifications
Maintenance Specifications These characteristics apply to an A622 AC/DC Current Probe installed on a Tektronix TDS 220 oscilloscope. The oscilloscope must be warmed up for at least 20 minutes and be in an environment within the specified limits in Table 5 on page 13. - Page 13 Humidity 0 °C to 40 °C, 95% humidity 40 °C to 50 °C, 45% humidity Pollution Degree Figure 6: Gain versus frequency at 1 A peak, typical Figure 7: Maximum current versus frequency A622 100 Amp AC/DC Current Probe Instructions...
- Page 14 Maintenance Figure 8: DC signal linearity in the 10 mV/A range, typical Figure 9: Phase versus frequency at 1 A peak, typical A622 100 Amp AC/DC Current Probe Instructions...
-
Page 15: Preparation For Shipment
• One BNC to banana plug adapter Tektronix part number 012-1450-XX The A622 does not have any user repairable assemblies. If you should have trouble with your probe, contact your local Tektronix Service Center or representative for help. A622 100 Amp AC/DC Current Probe Instructions...
