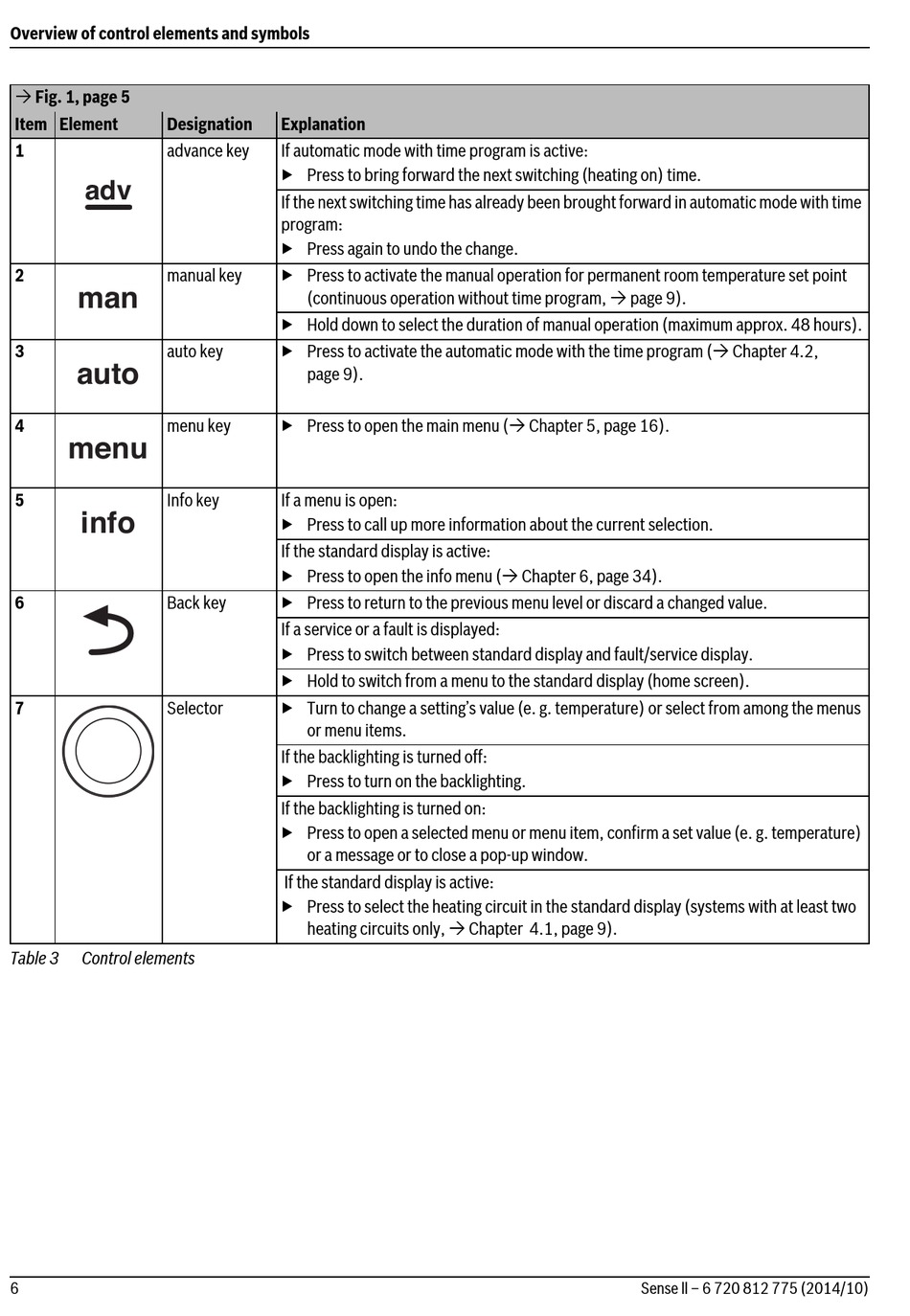

Worcester Sense ll Operating Instructions Manual page 6

Overview of control elements and symbols
 Fig. 1, page 5
Item Element Designation
1
advance key
adv
2 manual key
man
3
auto key
auto
4 menu key
menu
5 Info key
info
6 Back key
7 Selector
Table 3 Control elements
6
Explanation
If automatic mode with time program is active:
▶ Press to bring forward the next switching (heating on) time.
If the next switching time has already been brought forward in automatic mode with time
program:
▶ Press again to undo the change.
▶ Press to activate the manual operation for permanent room temperature set point
(continuous operation without time program,  page 9).
▶ Hold down to select the duration of manual operation (maximum approx. 48 hours).
▶ Press to activate the automatic mode with the time program ( Chapter 4.2,
page 9).
▶ Press to open the main menu ( Chapter 5, page 16).
If a menu is open:
▶ Press to call up more information about the current selection.
If the standard display is active:
▶ Press to open the info menu ( Chapter 6, page 34).
▶ Press to return to the previous menu level or discard a changed value.
If a service or a fault is displayed:
▶ Press to switch between standard display and fault/service display.
▶ Hold to switch from a menu to the standard display (home screen).
▶ Turn to change a setting's value (e. g. temperature) or select from among the menus
or menu items.
If the backlighting is turned off:
▶ Press to turn on the backlighting.
If the backlighting is turned on:
▶ Press to open a selected menu or menu item, confirm a set value (e. g. temperature)
or a message or to close a pop-up window.
If the standard display is active:
▶ Press to select the heating circuit in the standard display (systems with at least two
heating circuits only,  Chapter 4.1, page 9).
