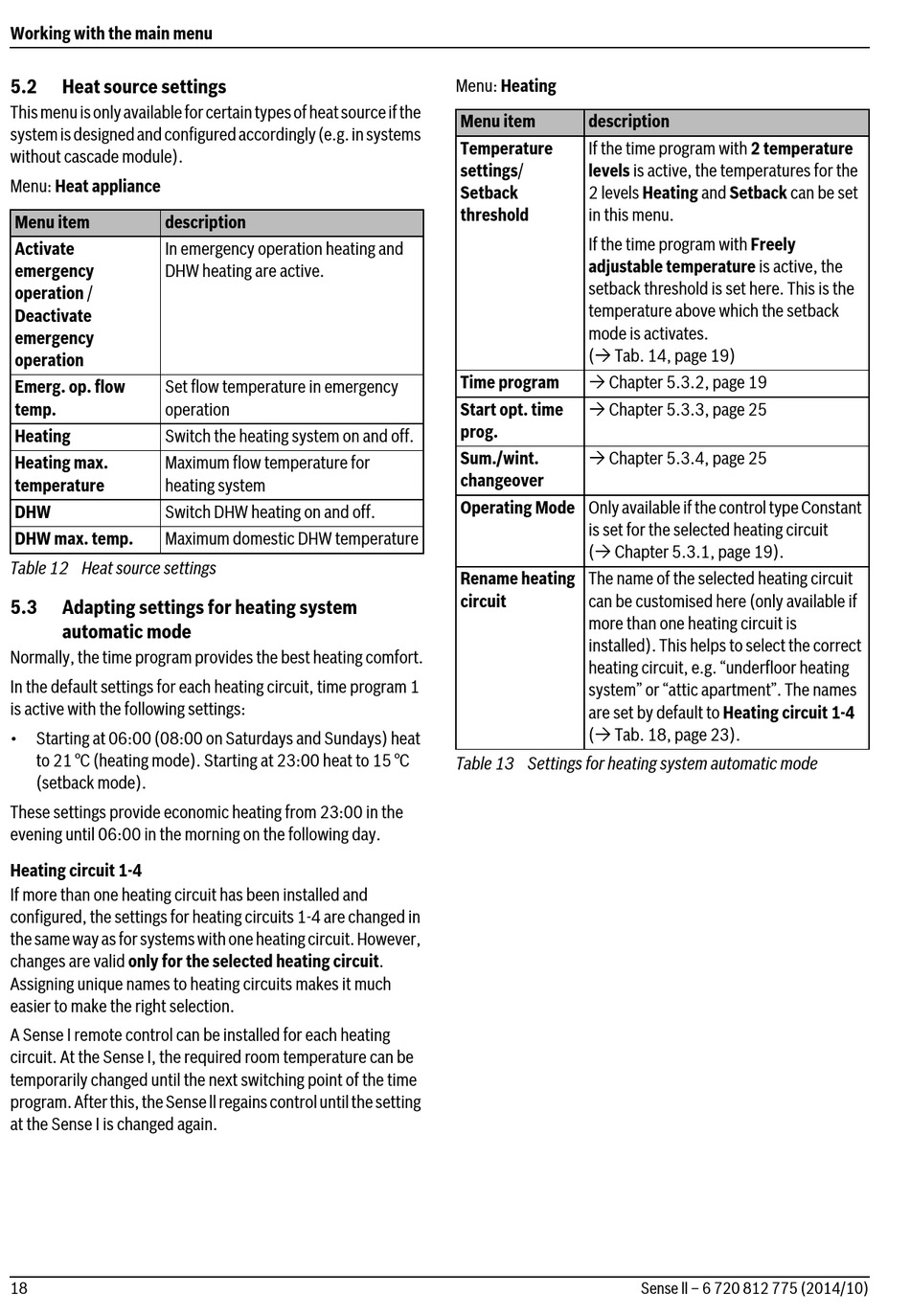

Heat Source Settings; Adapting Settings For Heating System Automatic; Mode - Worcester Sense ll Operating Instructions Manual

Working with the main menu
5.2

Heat source settings

This menu is only available for certain types of heat source if the
system is designed and configured accordingly (e.g. in systems
without cascade module).
Menu: Heat appliance
Menu item description
Activate In emergency operation heating and
emergency DHW heating are active.
operation /
Deactivate
emergency
operation
Emerg. op. flow Set flow temperature in emergency
temp. operation
Heating Switch the heating system on and off.
Heating max. Maximum flow temperature for
temperature heating system
DHW Switch DHW heating on and off.
DHW max. temp. Maximum domestic DHW temperature
Table 12 Heat source settings
5.3 Adapting settings for heating system
automatic mode
Normally, the time program provides the best heating comfort.
In the default settings for each heating circuit, time program 1
is active with the following settings:
• Starting at 06:00 (08:00 on Saturdays and Sundays) heat
to 21 °C (heating mode). Starting at 23:00 heat to 15 °C
(setback mode).
These settings provide economic heating from 23:00 in the
evening until 06:00 in the morning on the following day.
Heating circuit 1-4
If more than one heating circuit has been installed and
configured, the settings for heating circuits 1-4 are changed in
the same way as for systems with one heating circuit. However,
changes are valid only for the selected heating circuit.
Assigning unique names to heating circuits makes it much
easier to make the right selection.
A Sense I remote control can be installed for each heating
circuit. At the Sense I, the required room temperature can be
temporarily changed until the next switching point of the time
program. After this, the Sense ll regains control until the setting
at the Sense I is changed again.
18
Menu: Heating
Menu item description
Temperature If the time program with 2 temperature
settings/ levels is active, the temperatures for the
Setback 2 levels Heating and Setback can be set
threshold in this menu.
If the time program with Freely
adjustable temperature is active, the
setback threshold is set here. This is the
temperature above which the setback
mode is activates.
( Tab. 14, page 19)
 Chapter 5.3.2, page 19
Time program
 Chapter 5.3.3, page 25
Start opt. time
prog.
 Chapter 5.3.4, page 25
Sum./wint.
changeover
Operating Mode Only available if the control type Constant
is set for the selected heating circuit
( Chapter 5.3.1, page 19).
Rename heating The name of the selected heating circuit
circuit can be customised here (only available if
more than one heating circuit is
installed). This helps to select the correct
heating circuit, e.g. "underfloor heating
system" or "attic apartment". The names
are set by default to Heating circuit 1-4
( Tab. 18, page 23).
Table 13 Settings for heating system automatic mode
Sense ll – 6 720 812 775 (2014/10)
