Leviton SS0AV-091 User Manual

SAVE THESE INSTRUCTIONS
WARNING WARNING: TO AVOID FIRE, SHOCK OR DEATH, DISCONNECT POWER BEFORE SERVICING PRODUCT!
In order to ensure the reliable performance of the Switcher/Scaler, and the safety of the user, please observe the following matters during installation, use, and
maintenance:
• If you are unsure about any part of these instructions, consult an electrician.
• To be installed and/or used in accordance with appropriate electrical codes
and regulations.
• Improper use can lead to damage or deterioration to the product.
• Do not use this product in the following locations:
- areas with excessive dust, soot, corrosive gas, or combustible gas;
- areas with temperatures higher than product rating;
- areas with condensation, exposure to wind and/or rain;
- areas that are susceptible to vibrations or impact.
• For proper operation and cooling, make sure all vented areas of the equipment
are free of debris and excessive dust.
• To reduce potential interference, choose shielded cables as the high frequency
signal input or output cable.
• To reduce risk of electric shock and damage to equipment, wiring should only
be done with all external power off.

SAFETY INSTRUCTIONS

This product may cause radio interference with other electronics.
Proper shielding may be required to reduce interference.
Risk of electric shock. Disconnect power before servicing.
This product was found to be in compliance with the council EMC
directive 2004/108/EC and the council LVD directive 2006/95/EC.
NOTICE
This manual is designed for user instruction, not as a repair or service
•
manual. For a full version of the manual, go to www.Leviton.com.

PRODUCT OVERVIEW

Leviton's Scaler / Switcher can be used stand-alone, or, integrated with the Sapphire
touch-screen as a system controller. In stand-alone mode, it's source selection is from the

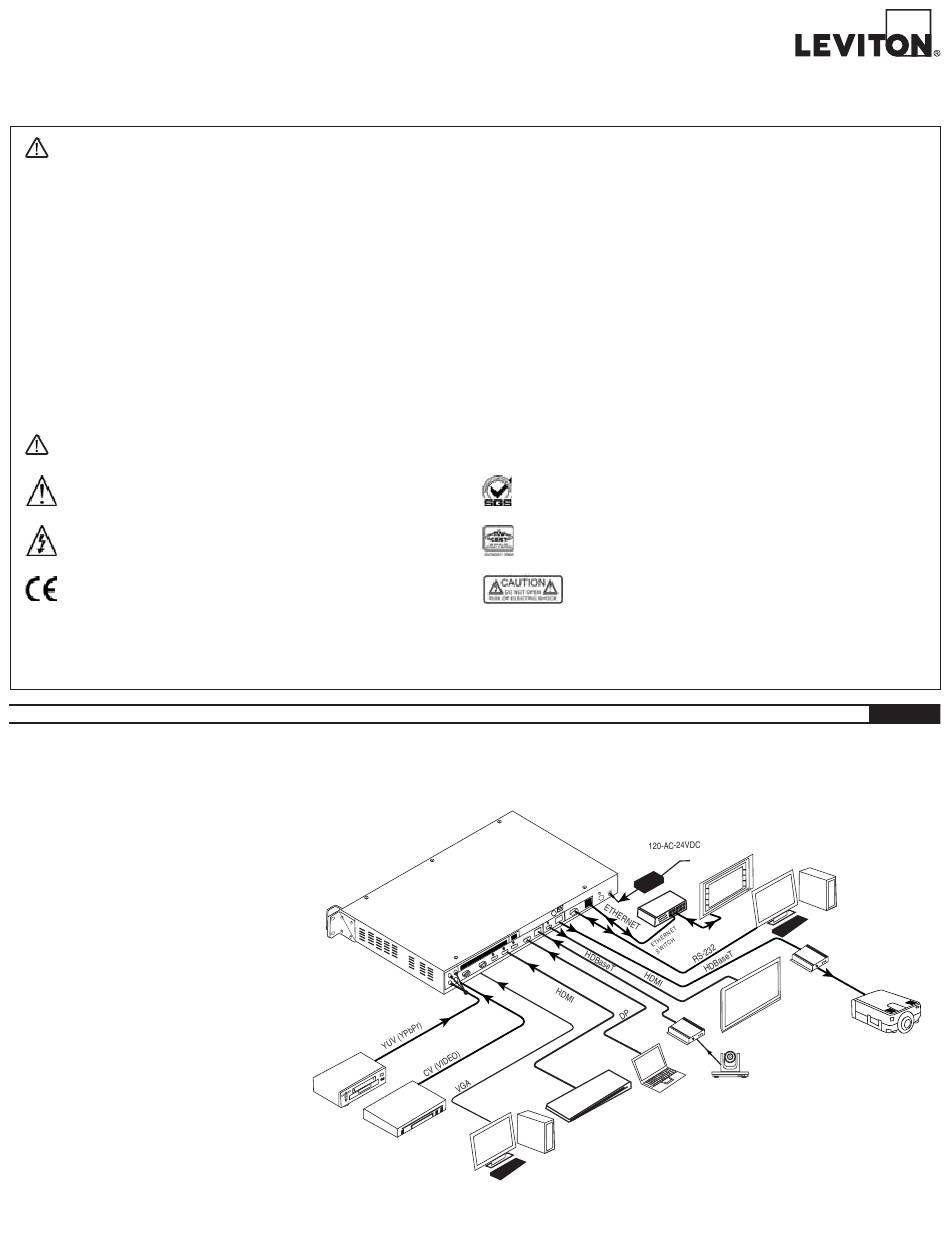

front panel controls. When used with Sapphire,
control is between the Sapphire and Scaler /
Switcher over a TCP/IP Ethernet network as
shown in the diagram.
Leviton's SS0AV Scaler / Switcher is designed
to switch different types of signal inputs to
HDMI and HDBaseT output. It has 9 input
video signal sources:
• CVBS, (Y, Pb/Cb, Pr/Cr), VGA , HDMI and
HDBaseT signals convert/switch to unified
HDMI/HDBaseT signal output; all input
signals can fold lines to a user-defined
output resolution.
SS0AV also supports 9 unbalanced analog
stereo audio inputs, by switching to the audio
amplifier output. HDMI input and output can
support audio signal synthesis or separation.
SS0AV is ideal for multimedia conference
rooms, educational classrooms, command and
control centers and other applications.
One of the primary target applications is
classrooms where the output is connected to
the projector and in-room audio system, and
inputs are from Blu-ray players, computers,
student provided equipment, and other. Control
of both lighting and a/v systems would be
through the Sapphire touch-screen controller.
© 2016 Leviton Mfg. Co., Inc.
SWITCHER / SCALER
Cat. No. SS0AV-091
USER'S MANUAL
SWITCHER/SCALER
COMPONENT
PLAYER
DVD
• To avoid electric shocks, grounding wires and the earth must be linked
together. Before the connection of input or output terminal, make sure this
product is correctly grounded.
• When installation is complete, cover the terminals before equipment is
powered on to reduce risk of electric shock.
• To avoid risk of shock or damage to equipment, do not touch terminals when
power is on.
• When cleaning or servicing unit, make sure power is turned completely off.
• All cables or interconnects to other units/modules should be connected when
the power is off.
• Please be sure to fully read the manual prior to any assembly, installation, or
operation of the equipment.
This product has found to be in compliance with SGS international
regulations and standards.
This product passed the ISO9001 international quality certification
(certification body: TUV Rheinland,Germany).
WARNING: To avoid risk of electrical shock, do not open the cover
when in use. Contact a qualified service personnel for all servicing.
BLU-RAY
PLAYER
DESKTOP
www.leviton.com
PK-A3162-10-A0-5A
SAPPHIRE
TOUCH
SCREEN
DESKTOP
LCD TV
HD
VIDEO
CAMERA
LAPTOP
PK-A3162-10-A0-5A
AR3156
ENGLISH
PROJECTOR
AR3156
