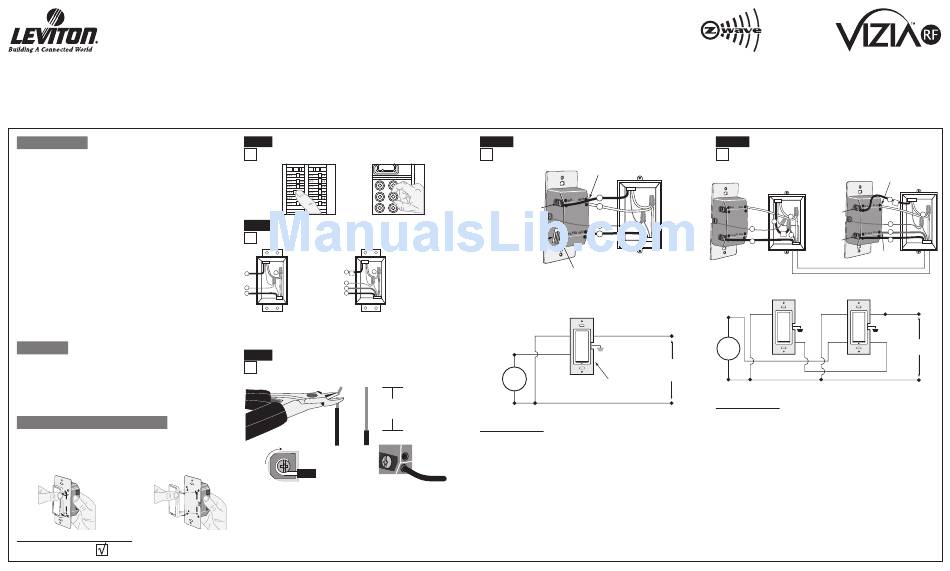

Leviton Scene Capable Electronic Switch Installation Instructions

DI-000-RZS15-00A-X3
WARNINGS AND CAUTIONS
:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Vizia™ RF electronic switches are not compatible with standard 3-way or 4-way switches. They must be used with compatible Vizia™ or Vizia™ RF controllers.
• Recommended minimum wall box depth is 2-1/2".
INTRODUCTION
Leviton's Vizia™ RF Z-Wave™ components are designed to communicate
with each other via Radio Frequency (RF) to provide remote control of
your lighting. Using RF technology allows Leviton to provide the greatest
signal integrity possible. Each module in Leviton's Vizia™ RF component
line is a Z-Wave™ enabled device. In a Z-Wave™ network, each device
is designed to act as a router. These routers will re-transmit the RF signal
from one device to another until the intended device is reached. This
ensures that the signal is received by its intended device by routing the
signal around obstacles and radio dead spots. The Scene Capable Plug-In
Appliance Module is compatible with any Z-Wave™ enabled network,
regardless of the manufacturer and can also be used with other devices
displaying the Z-Wave™ logo.
CAUTION:
Remember to exercise good common sense when using the Timer
features of your Remote – especially when scheduling unattended devices.
There can be some unexpected consequences if not used with care. For
example, an empty coffee pot can be remotely turned on. If that should
happen, your coffee pot could be damaged from overheating. If an electric
heater is turned on by remote control while clothing is draped over it, a
fire could result. DO NOT USE the remote for the control of high power
heating appliances such as portable heaters. This device will not control
lighting that is used with electronic low-voltage and high frequency power
supply transformers, nor high pressure discharge lamps (HID lighting).
This includes mercury-vapor, sodium vapor and metal halide lamps.
FEATURES
• Switch ON/OFF
• Scene Capable
• ON/OFF LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave™ enabled devices
Tools needed to install your Switch
Slotted/Phillips Screwdriver Electrical Tape
Pencil Cutters
Changing the color of your Switch:
Your switch includes three color options. The switch ships with the White
frame attached. To change color of frame, proceed as follows:
Push in line up tabs
side at tab
and press in
to release side to attach
INSTAllING YOUR SWITCH
NOTE: Use check boxes when Steps are completed.
Single Pole (One location) or 3-Way (Multi-location)
Incandescent-1800W – Magnetic Low-Voltage-1800VA (1440W)
Electronic Low-Voltage-1800W – Fluorescent-1800VA – Supplemental-1/2 HP
WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
Step 1
OFF POWER at circuit breaker or fuse and test that power is off
before wiring!
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in your wall box does not resemble any of
these configurations, consult a qualified electrician.
Single Pole
1. Line (Hot)
2. Neutral
1
2
1
3. Ground
4. Load 3
3 4
4 5
IMPORTANT : For 3-Way applications, note that one of the screw terminals
from the old switch being removed will usually be a different color (Black)
or labeled Common. Tag that wire with electrical tape and identify as the
common (Line or Load) in both the switch wall box and remote wall box.
Preparing and connecting wires:
Step 3
This switch can be wired using side wire terminal screws or
through backwire openings. Choose appropriate wire stripping
specifications accordingly.
Cut
(if necessary)
Pliers
Ruler
Side Wire Connection Back Wire (either hole may be used)
Side wire terminals accept #14 Back wire openings use #14-12 AWG
AWG solid wire copper only. solid wire copper only.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
• Remove insulation from each wire in the wall box as shown.
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no lEDs) Application, go to Step 4b.
Scene Capable Electronic Switch
Cat. No. RZS15-1L, (Lighted)
120VAC, 60Hz

INSTAllATION INSTRUCTIONS

WARNINGS AND CAUTIONS
• Use only one (1) Vizia
TM
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Single Pole Wiring Application:
Step 4a
Terminal
Screw marked
Black (BK)
Terminal
Screw marked
Yellow/Red
(Yl/RD)
3-Way
1. Line or Load (see
important instruction)
Terminal label:
2
2. Neutral
Use Terminal for 3-Way or More Applications Only.
3. Ground
For Single-Pole Applications, Do Not Remove This
4. First Traveler – note color label.
5. Second Traveler – note
color
Black
Load
White
5/8"
Strip Gage
(1.6 cm)
(measure bare
wire here)
WIRING SWITCH:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Load wall box wire to terminal screw marked "RD".
• Line Neutral wall box wire to terminal screw marked "WH".
• Switch terminal screw marked "YL/RD" should have Red insulation
label affixed.
NOTE: If insulating label is not affixed to terminal screw marked "YL/RD",
use electrical tape to cover.
• Proceed to Step 5.
Compatible with
:
RF electronic switch in a multi-location circuit with up to 9 Vizia coordinating remotes without LEDs or Vizia
TM
Step 4b
Terminal
Screw marked
White (WH)
Coordinating Remote
1
2
3
4
Terminal
Screw marked
Red (RD)
Coordinating Remote (no LED)
Switch
Black
Hot (Black)
WH BK
Green
Load
Ground
RD YL/RD
Line
White
120VAC, 60Hz
Use Terminal for 3-Way or
More Applications Only.
For Single-Pole Applications,
Do Not Remove This Label.
WIRING SWITCH:
Neutral (White)
Connect wires per WIRING DIAGRAM as follows:
NOTE: The switch must be installed in a wall box that has a Line Hot
connection.
NOTE: Maximum wire length from switch to all installed remotes cannot
exceed 300 ft (90 m).
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing
old switch
to terminal screw marked "BK".
• First Traveler wall box wire to terminal screw marked "RD"
(note wire color).
• Remove Red insulating label from terminal screw marked "YL/RD".
• Second Traveler wall box wire to terminal screw marked "YL/RD"
(note wire color). This traveler from the switch must go to the
terminal screw on the remote marked "YL/RD".
• Line Neutral wall box wire to terminal screw marked "WH".
TM
enabled products!
RF remotes for multi-location.
TM
3-Way Wiring with Coordinating Remote
(no lED) Application:
Terminal
Switch
Screw marked
White (WH)
1
Terminal
Screw marked
2
2
Black (BK)
1
3
3
Terminal 4
4
Screw marked
5
5
Yellow/Red
(Yl/RD)
Terminal
Screw marked
Red (RD)
Switch
Hot (Black)
WH BK WH
(unused)
BK
Green Green
Ground Ground
RD YL/RD YL/RD
Line
(unused)
RD
120VAC, 60Hz
Neutral (White)
