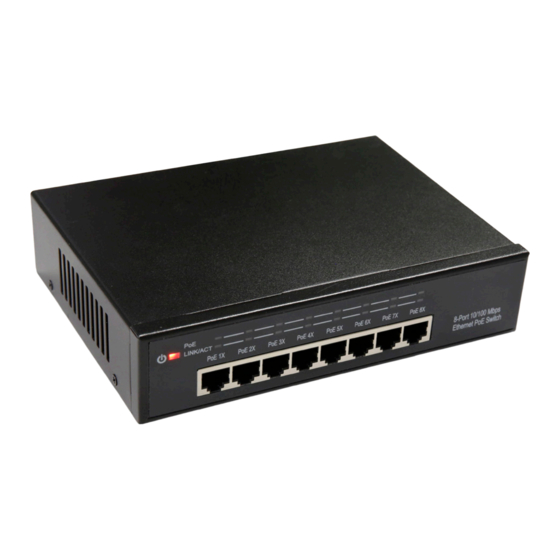

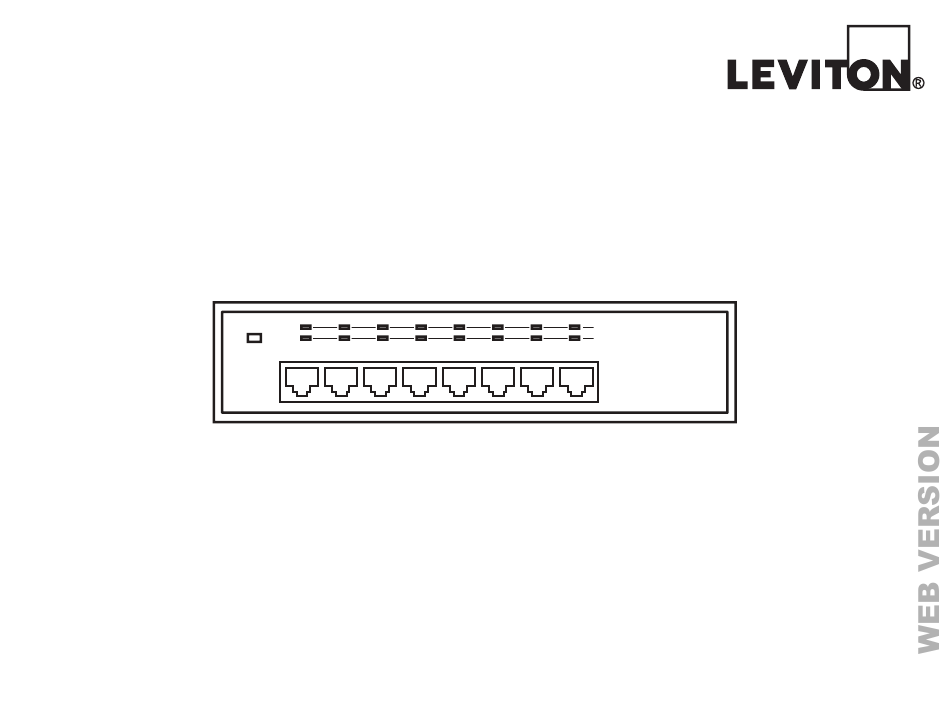

- Page 1 DI-000-POENS-05D-W 8-Port PoE Network Switch Cat. No. POENS-8PT Link/ACT PoE 1X PoE 2X PoE 3X PoE 4X PoE 5X PoE 6X PoE 7X PoE 8X 8-Port 10/100 Mbps Ethernet PoE Switch IEEE802.3af 15.4W User’s Guide...
- Page 2 • Use only the supplied AC adapter. The use of any incompatible adapter may cause damage to the equipment and void the warranty. • For indoor use only. • SAVE THESE INSTRUCTIONS. For Technical Assistance Call: 800-824-3005 - www.leviton.com Page 3...
- Page 3 FCC COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
Table of Contents Introduction …………………………………………………………………… page 6 Power Over Ethernet (PoE) ……………………………………..…………… page 7 Installation …………………………..………………………………………… page 8 Connecting Network Cables ………………………………………………… page 9 Front Panel ……….………………………………………………………… page 10 Front Panel LED Indicators .………………………………………………. page 11 Rear Panel ……………………………..…………………………………….. page 12 Technical Specifications ……..…………………………...………………... -
Page 5: Introduction
Powered Devices (PD) that comply with the IEEE 802.3af standard. The PoE ports on the POENS-8PT can also be used to power other Powered Devices (PD), such as the Leviton BitWise™ BC4, Leviton Door Station, Leviton PoE IP cameras, PoE Wireless Access Points, PoE Printer, etc., without requiring additional power on the network. -
Page 6: Power Over Ethernet (Poe)
POWER OVER ETHERNET (PoE) Power Over Ethernet (PoE): Power over Ethernet (PoE) integrates 48V power and data onto one single cable, eliminating the need to have power available at the equipment locations. Power and data are integrated onto the same cable, up to 100 meters (328 feet). Features: •... -
Page 7: Installation
INSTALLATION Unpacking: Open the shipping carton of the POENS-8PT and carefully unpack its contents: • POENS-8PT (8-Port PoE Network Switch) • AC Power adapter • User’s Guide Installation: • The surface must support at least 4.4 lb and a power outlet should be within 5 feet of the switch. -
Page 8: Connecting Network Cables
The POENS-8PT has 8 10/100Mbps Ethernet ports. Each port incorporates 10/100Mbps support using traditional UTP cables. Each of the 8 PoE ports will automatically activate when a compatible device is identified. The POENS-8PT will supply power through the port to the connected PoE device (PD). -
Page 9: Front Panel
FRONT PANEL There is an LED power indicator and 8 RJ-45 ports with LED status indicators on the front panel of the POENS-8PT. The LED status indicators provide status for each of the ports. Link/ACT PoE 1X PoE 2X PoE 3X... -
Page 10: Front Panel Led Indicators
FRONT PANEL LED INDICATORS The LED status indicators provide status for each of the ports and can be used for monitoring and troubleshooting when required. Link/ACT PoE 1X PoE 2X PoE 3X PoE 4X PoE 5X PoE 6X PoE 7X PoE 8X 8-Port 10/100 Mbps Ethernet PoE Switch... -
Page 11: Rear Panel
REAR PANEL Power Jack and Power Switch: The power jack and power switch is located on the left side of the rear panel of the POENS-8PT. Power DC Input Press power switch to turn the device ON/OFF. NOTE: Use only the supplied AC adapter. The use of any incompatible adapter may cause damage to the equipment and void the warranty. -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3af Power over Ethernet Protocol CSMA/CD Data Transfer Rate Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex) Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex) Network Cables 10BASE-T: 2-pair UTP Cat 3, 4, 5 up to 100 meters. - Page 13 Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that products manufactured by Leviton under the Leviton brand name (“Product”) will be free from defects in material and workmanship for the time periods indicated below, whichever is shorter: • OmniPro II and Lumina Pro: three (3) years from installation or 42 months from manufacture date.
