Setting Axis Properties

You can change the appearance of the time axis (x axis) and the value axis (y axis) on the plot. You can
customize the axis name, change the location, bounds, tick marks, color, and more.
To change the axis properties, complete the following steps:
1. Double-click the axis in the plot with the arrow tool, or select the axis and click the Properties icon
open the Axis Properties
2. In the field, enter up to a 40-character name for the axis. The default name for a value axis is the unit
Name
type (for example, °
does not have a default name. To add
File»Preferences»Plotting»Other Options
3. Change the location of the axis. The value axis can be located on the left or right while the time axis can be
located at the top or bottom
4. By default, tick marks are auto-calculated. Numbers or values are listed next to major tick marks and minor
tick marks are not numbered. To change the default tick marks, select
the values for Major and Minor tick marks as desired.
5. Change the default bounds used on each axis. For the time axis, select the dates and times you want the axis
to display. For the value axis, type the minimum and maximum value you want the axis to display.
6. You can also modify the appearance of the axis with these options:
o Show Gridlines:
by default for the time axis, but not for the value axis.
This controls whether the axis is displayed or temporarily hidden.
o Hide Axis:
o Lock Axis Scaling and Tick Marks:
in their original position when zooming or navigating with the hand tool. Locking the axis and tick
marks helps to avoid inadvertently zooming or navigating to an area on the graph without data.
Black is the default color for the time axis. The color of the value axis matches the series color
o Color:
by default. You can change the color for either axis as desired.
7. Click Apply to update the plot and keep the Axis Properties dialog box open. Click Done to update the plot
and close the dialog box.
dialog box.

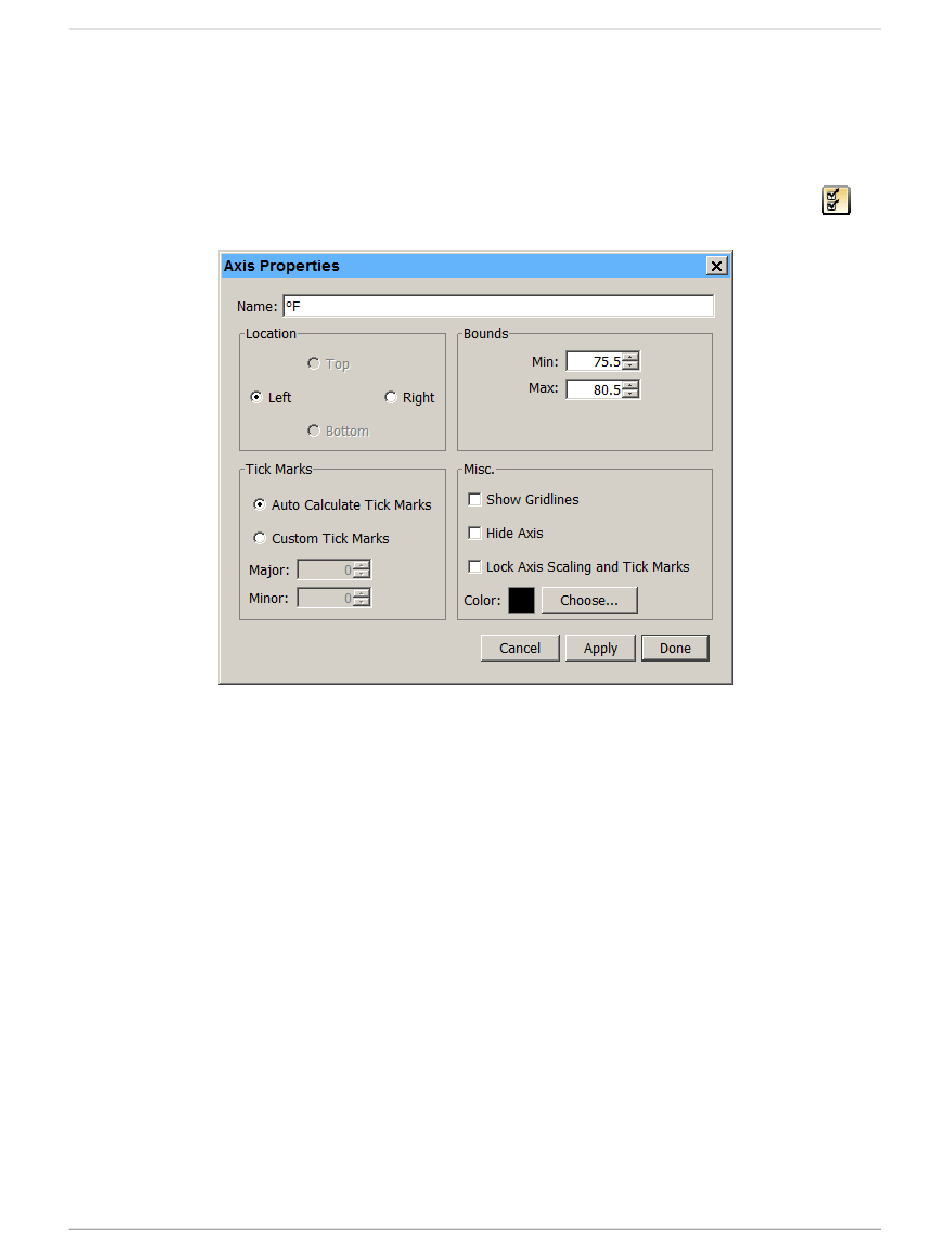

Figure 18. Axis Properties Dialog Box
F is the name for a temperature axis and
Time as the default name for this axis, select
and select the
This toggles whether gridlines are displayed in the background. Gridlines are shown
This controls whether the axis and associated tick marks remain
% is the name for an RH axis). The time axis
Label the time axis
Custom Tick Marks
36
Modifying a Plot
to
checkbox.
and then choose
