The Plot

The plot displays the data series and events in a graph. The plot has a time axis (x-axis) and a value axis (y-axis)
for each series selected in the Plot Setup dialog box. The title is displayed at the top of the plot by default. The
title text comes from the Description field in the Plot Setup dialog box.
The legend lists the keys (line colors and marker types) for each series, and is displayed to the right of the plot
by default. If the crosshair tool is in use, it also lists the date, time and point values currently selected by the
crosshair.

To hide the title, clear the

To hide the legend, clear the
Double-click a plot element (series, axis, title, or legend) to change its properties, or right-click the plot and
select the item from the context menu.
For more information about working with the plot, see

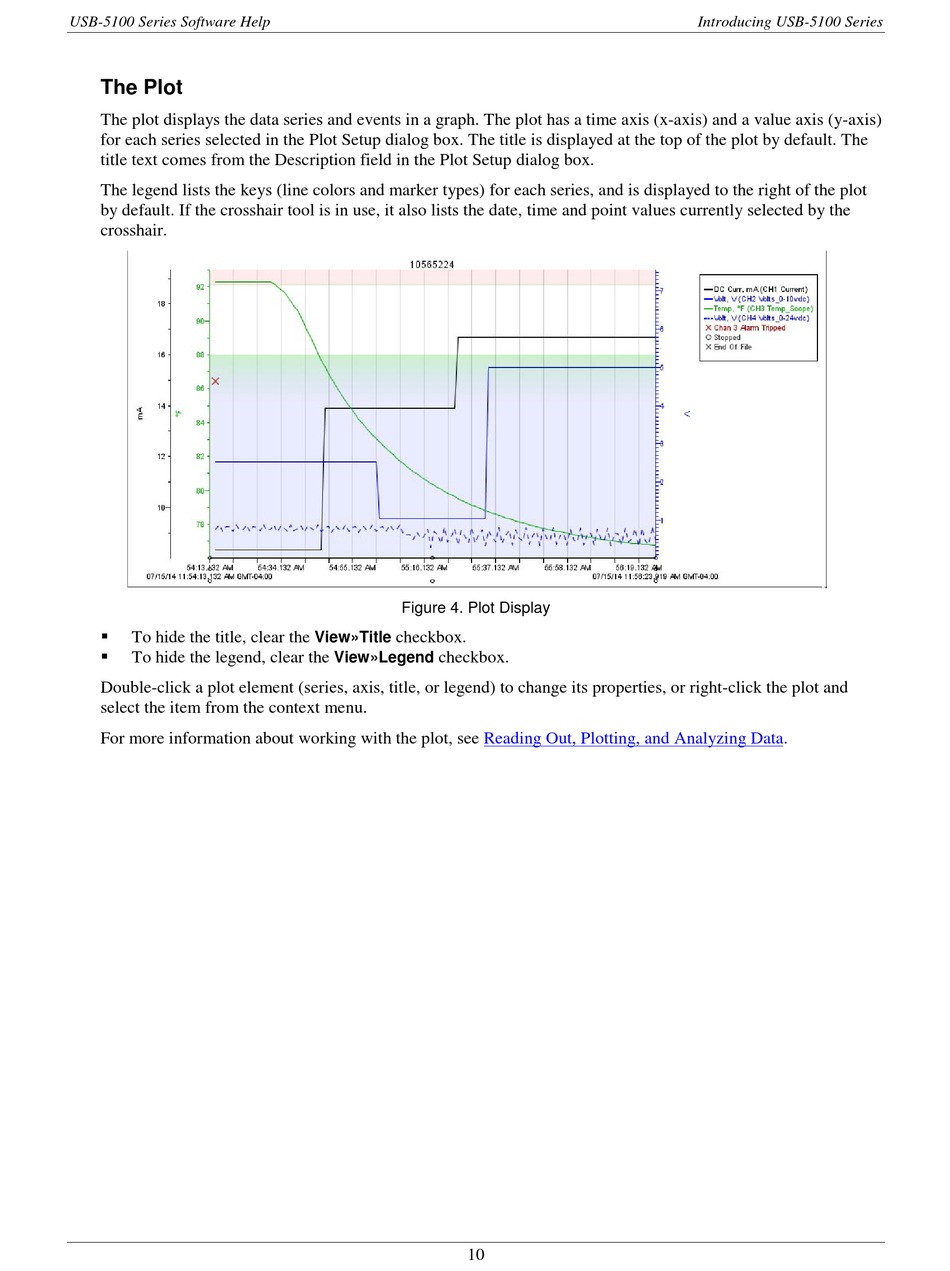

Figure 4. Plot Display
checkbox.
View»Title
View»Legend checkbox.
Reading Out, Plotting, and Analyzing
10
Introducing USB-5100 Series
Data.
