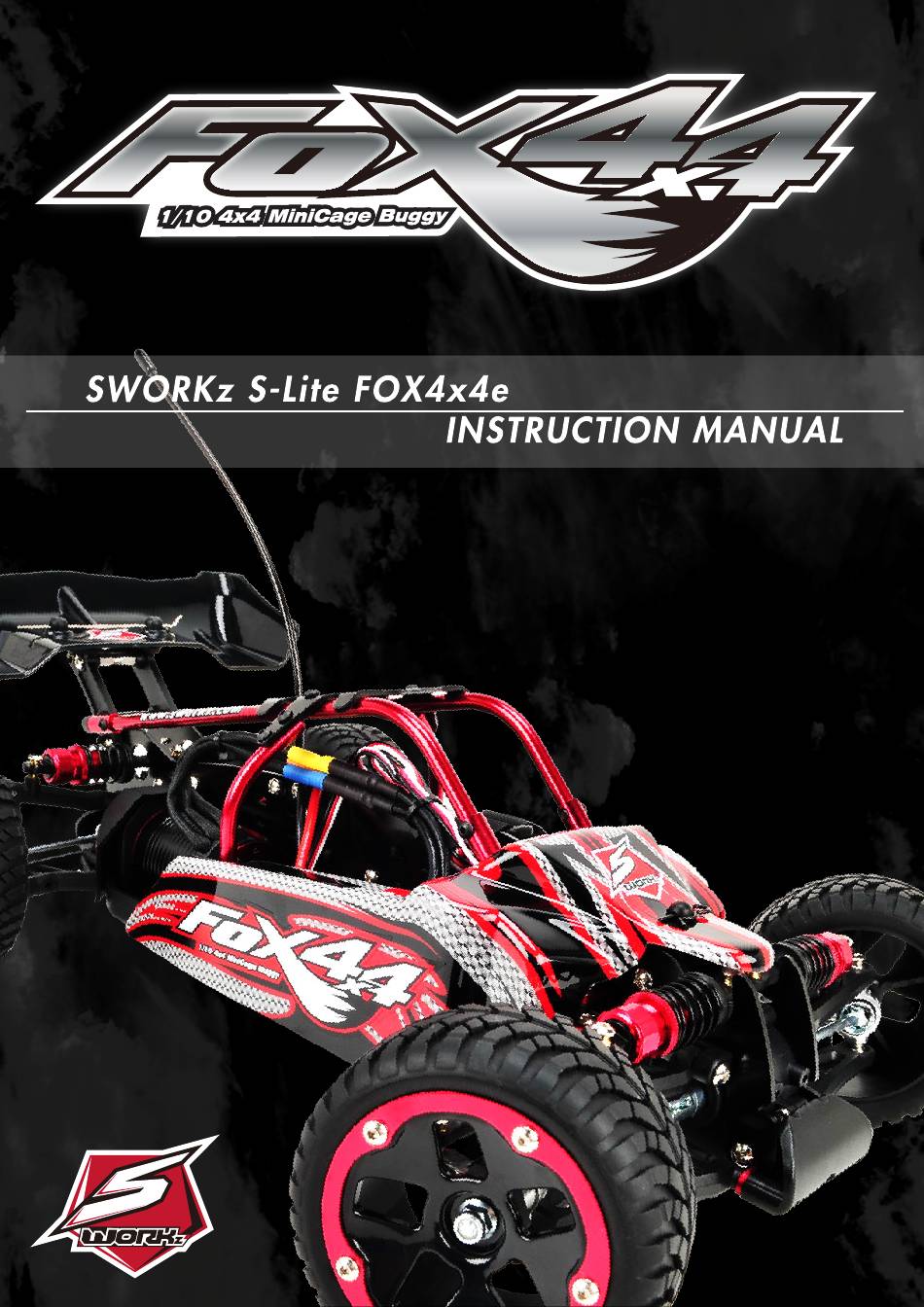

SWorkz S-Lite FOX4x4e Instruction Manual

1/10 4x4 minicage buggy
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the S-Lite FOX4x4e and is the answer not in the manual?

Questions and answers

Related Manuals for SWorkz S-Lite FOX4x4e

Summary of Contents for SWorkz S-Lite FOX4x4e

  • Page 2: Instruction

    As always, if you should ever have any questions or need help with your FOX4x4, please feel free to contact our official SWORKz dealers and distributors. You may also contact us at anytime for the most up to date information and support.

  • Page 3: Specification

    Contact your local hobby shop or SWORKz distributor for all claims and questions. Claims must be well documented. All Claims are subject to expert...

  • Page 4: Required Equipment For Operation

    I N D E X INSTRUCTION Warranty INDEX Required Equipment for Operation Operation Guide Assembly Steps 7-32 SWORKz S-Lite FOX4x4 REPLACEMENT PARTS LIST 33-35 This radio controlled racing car is not a toy! This high-performance R/C model is recommended for ages 14 and above.
  • Page 5 R e q u i re d Equ ip me nt fo r O p erat io n Included 2.4G Radio Gear Included Sworkz SE-50 50A Receiver ESC system Steering servo Wheel & Trigger Type Included Sworkz SP-3500 (3652) Charger and LiPo Battery...
  • Page 6 Compound S a fe t y Pre c au t io n s The SWORKz FOX4x4 is a high performance radio control model which needs to be operated with caution and common sense. The S350 FOX4x4 RTR is not intended for children under the age of 12 without adult supervision.
  • Page 7 Step 1 Front and Rear Differentials 1A - Grub Screw w/Threadlock 4x4mm -- 4 1B - Pin 3x19.8mm -- 2 1C - F/H Tapping Screw 2x12mm -- 8 SW-EL2228 SW-CB156 SW-VX144 1D - Shim 5x12x0.3mm -- 6 Differential Oil 1E - Shim 8x12x0.3mm -- 2 SW-CB156 SW-CB156 SW-CB156...
  • Page 8 Step 3 Front Differential Housing SW-VX103 Step 2 SW-EL162D7RE SW-EL162D7RE 3A - Button Head Tapping Screw 3x8mm -- 4 3B - Grub Screw w/Threadlock 4x4mm -- 1 Step 4 Rear Differential Housing SW-EL22821 SW-EL22901 SW-EL1631 <4-1> Step 1 (Rear) SW-EL1631 Step 4-1 4A - Pin 1.5x7.8mm -- 1 4C - Ball Bearing 5x10x4mm -- 2...
  • Page 9 Step 5 Main Gear and Main Gear Mounting 5D - Button Head Tapping Screw 3x8mm -- 4 5A - E-Ring 4mm -- 1 5B - Pin 2x9.8mm -- 1 5C - F/H Tapping Screw 3x7mm -- 3 SW-EL162D7RE Step 4 SW-EL0061 (SW-EL00612) EL0061...

  • Page 10: Servo Saver

    Step 7 Servo Saver SW-EL30731 SW-EL3701 SW-EL30761RE (SW-VA30751RE) SW-EL3701 SW-VA30751RE SW-EL3701 SW-EL30731 (SW-VA30751RE) SW-EL30731 Step 7-1 (Right) SW-EL30731 Step 7-1 (Left) SW-EL30731 <7-1> 7A - Tapping Screw 3x6mm -- 2 7B - Button Head Machine Screw w/Threadlock 3x6mm -- 2 Step 8 Steering Tie-Rods SW-CB113...

  • Page 11: Step 9 Steering Servo

    Step 9 Steering Servo Tie-RodsRods SW-CB159 Step 9-1 SW-V22151 SW-V22151 Servo Arm SW-CB159 (Included with Servo) <9-1> 9A - Grub Screw 3x12mm -- 1 9B - Button Head Machine Screw 3x12mm -- 1 9C - Lock Nut 3mm -- 1 Servo Saver Step 10 Step 8...
  • Page 12 Step 11 The Left Side Body SW-EL3002LBA SW-EL3024 SW-CB305 SW-EL1652 SW-EL3024 SW-CB305 SW-CB305 11B - Button Head Tapping Screw 3x8mm -- 3 11A - Button Head Machine Screw w/Threadlock 3x6mm -- 3 Step 12 The Right Side Body SW-EL3101 SW-EL3002RBA SW-EL3024 SW-EL3746 SW-EL3101...
  • Page 13 Step 13 Servo Saver and Side Body Mounting Step10 Step11 Pillars need to pass through the left & right Side Body. Step12...
  • Page 14 Step 14 The Left & Right Side Body Mounting 14A - Button Head Machine Screw w/Threadlock 3x6mm -- 3 14B - Button Head Tapping Screw 3x8mm -- 1 Step 13 Side body unfinished, Right side screw shortly not locking. Front Differential Housing and Side Body Mounting Step 15 Step 14 Step 3...
  • Page 15 Front Differential Housing and Side Body Mounting Step 16 16A - Button Head Tapping Screw 3x8mm -- 2 Side body unfinished, Step 15 Right side screw shortly not locking. Step 17 Rear Differential Housing and Side Body Mounting Step 16 Step 6 SW-EL3553 17A - Button Head Tapping Screw 3x8mm -- 5...
  • Page 16 Rear Differential Housing and Side Body Mounting Step 18 18A - Button Head Tapping Screw 3x8mm -- 3 Side body unfinished, Right side screw shortly not locking. Step 17 Step 19 Side Body Fixed Left & right side body slight to Step 18 pull out mounting fixed stand.
  • Page 17 The Right Side Body Mounting Step 20 Side body mount complete, Right sided screw locking. Step 21 Front CVD and Steering Knuckles 21A - Grub Screw w/Glue 3x2.6mm -- 4 21B - Pin 2x9.8mm -- 2 21C - Pin 2x11mm -- 2 21D - Ball Bearing 5x10x4mm -- 4 SW-V2357L SW-V2357L...
  • Page 18 Front Upper, Lower Suspension Arms and CVD Step 22 SW-CB113 SW-EL349F2 Step 22-1 Step 22-1 SW-CB113 Step 21 SW-EL349F2 <22-1> Step 22-2 Step 21 For Right and Left Sides (x2) SW-CB113 Step 22-2 SW-EL347F2 <22-2> 22A - Button Head Machine Screw w/Threadlock 3x12mm -- 4 Step 23 Rear Hubs 23A - Pin 2x9.8mm -- 2...
  • Page 19 Rear Upper, Lower Suspension Arms and Hubs Step 24 SW-EL349R2 SW-EL349R2 Step 24-1 SW-CB113 SW-CB113 <24-1> Step 23 Step 24-1 Step 23 Front SW-EL347R2 SW-EL347R2 24B - Hub Studs 3x27mm -- 2 24A - Hub Studs 3x13.5mm -- 2 Step 25 Front Suspension and Bumper Mounting 25A - Cap Screw 3x50mm -- 2 25D - F/H Tapping Screw 3x8mm -- 1...
  • Page 20 Steering Tie-Rods Mounting Step 26 Step 25 SW-EL30761RE 26A - Button Head Machine Screw w/Threadlock 3x12mm -- 2 26B - Button Head Machine Screw w/Threadlock 3x8mm -- 2 Step 27 Rear Suspension and Bumper Mounting 27A - Cap Screw 3x50mm -- 2 27D - F/H Tapping Screw 3x8mm -- 1 27B - Hub Studs 3x27mm -- 2 27C - Button Head Tapping Screw 3x12mm -- 1...
  • Page 21 Chassis and Support Fixed Plate Mounting Step 28 28A - F/H Tapping Screw 3x10mm -- 8 28B - F/H Machine Screw w/Threadlock 3x8mm -- 2 28C - F/H Tapping Screw 3x8mm -- 2 Step 27 SW-EL1671RE SW-EL30761RE SW-EL3014...
  • Page 22 Shock Bodies and Shock Shafts Step 29 29D - Shock Shaft 3x47mm -- 4 29A - Lock Nut 2.6mm -- 4 29B - O-Ring 3mm -- 12 29E - Shock Body 12x22.6mm -- 4 Please Lock Here SW-V213801 (SW-V213801) (SW-43D226RE) SW-43D226RE SW-43D226RE SW-V213801...
  • Page 23 Front and Rear Shock Mounting Step 31 Step 30 (SW-44A580A01) Step 30 (SW-44A580A01) Step 28 (Front) Step30 (SW-44A580A01) Step 30 (SW-44A580A01) Step 28 (Rear) 31A - Shim 3.2x4.8x0.4mm -- 8 31B - Button Head Tapping Screw 3x15mm -- 8...
  • Page 24 Steering Servo Mounting Step 32 Step 31 Servo Arm (Included with Servo) 32A - Button Head Tapping Screw 3x8mm -- 4 Step 33 Electric Speed Control and Receiver Mounting Receiver Electric Speed Control Step 32 Double Side Tape (Move Out)

  • Page 25: Step 35 Battery Mounting

    Battery Tape Mounting Step 34 Step 33 SW-540001 Step 35 Battery Mounting Battery (Not included) Step 34...
  • Page 26 Electric Speed Control Install Diagram Step 36 Li-Po Battery (Not included) Blue (Negative) SW-840019 Brushless Motor Orange (Anode) Receiver (Steering) SW-840019 (Speed) Electric Speed Control SW-840021 Servo Switch Reeceiver CH. 1 CH. 2 CH. 3 BATT...
  • Page 27 Steering Linkage Mounting Step 37 Step 36 Retaining Screw Wing Stay Step 38 SW-EL1412 SW-EL1412 SW-EL1412 SW-EL1672 SW-EL1683RE SW-EL1672 38A - Button Head Machine Screw w/Threadlock 3x8mm -- 4 38B - Cap Screw 3x8mm -- 2...
  • Page 28 Roof Plate Mounting Step 39 SW-EL1675BA SW-EL1681RE 39A - Button Head Machine Screw 3x8mm -- 2 Step 40 Roll Bar Posts Step 39 Roll bar posts unfinished, Screw shortly not locking. SW-EL1684RE 40A - Button Head Machine Screw 3x8mm -- 4...
  • Page 29 Front & Rear Center Roll Bar Step 41 SW-EL1672 SW-EL1683RE SW-EL1672 Step 38 <41-1> SW-EL1673RE SW-EL1673RE Step 40 SW-EL1673RE SW-EL1673RE Step 41-1 41A - Cap Screw 3x8mm -- 2 41B - Button Head Machine Screw 3x8mm -- 4...
  • Page 30 Roll Bar Mounting Step 42 Step 41 Step 36 Roll bar mount complete, Screw locking. 42A - Button Head Tapping Screw 3x8mm -- 2 42B - Button Head Machine Screw 3x8mm -- 2...
  • Page 31 Tires and Wheels and Wheel Rings Step 43 43A - Button Head Machine Screw 3x6mm -- 20 SW-D10B05SBA06RE SW-D10B05SBA06RE For Right and Left Sides (x4) For Left Side (x2) For Right Side (x2) SW-D10B05SBA06RE SW-D10B05SBA06RE <43-1> Please glue both sides. Use small amount instant Step 43-2 cement into the groove of...
  • Page 32 Wheels and Wing Mounting Step 44 SW-MV1201 SW-VA3751BA Step 43 Step 42 Step 43 Step 43 Step 43 44A - Flanged Lock Nut 4mm -- 4...
  • Page 33 SWORKz S-Lite 1/10 FOX4x4 REPLACEMENT PARTS LIST L=22.6mm L=68mm SW-43D226RE SW-BB051004 SW-BB081404 SW-44A580A01 F&R Shock Body Set 3mm - Red Shock Set w/Black Springs - F&R Ball Bearing 5x10x4mm Ball Bearings 8x14x4mm L=13.5mm L=22.5mm SW-CB150S SW-C10A01RE SW-CB113 SW-CB150A Balls - Copper 7x3mm...
  • Page 34 L=220.5mm SW-EL1684RE L=36mm SW-EL1681RE L=89.8mm SW-EL1683RE SW-EL2227 Connecting Sleeve - Red Differential Set Main Roll Bars - Red Side Roll Bars - Red SW-EL2228 SW-EL22811 SW-EL22821 SW-EL22891 L=21.8mm Differential Case w/Gear Pinion Gear 11T Pinion Gear Shaft - Front Bevel Gear 37T L=35.6mm SW-EL3002 SW-EL3002LBA...
  • Page 35 Wing - Black SW-EL30451 SW-840018 SW-WCAP3X50H L=50mm SW-D10B05SBA06TI Desert Tire+Wheel-Black+Insert+ SWORKz SE-50 50A 1/10 BL ESC Cap Screw 3mm Gear Cover Wheel Plate-Dark Titanium w/Glued (Made by HobbyWing) SW-840019 SWORKz SP-3500 3652 BL MOTOR FOR 1/10 RTR (Made by HobbyWing)
