Camos CM-709M2 Instruction Manual

7” 4channel digital monitor
Hide thumbs Also See for CM-709M2:

Advertisement

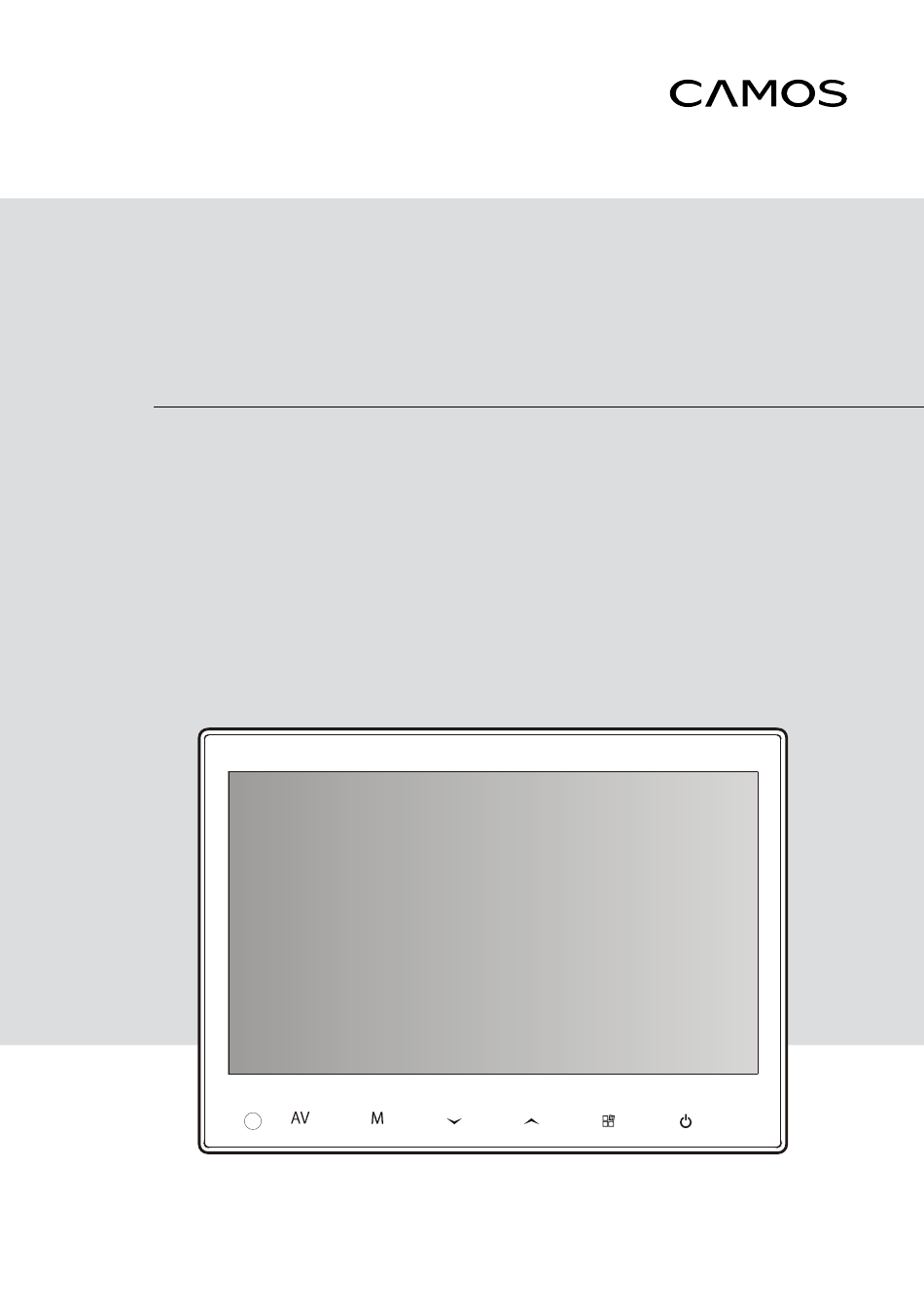

CM-709M2
7" 4CHANNEL DIGITAL MONITOR
INSTRUCTION MANUAL
Thank you for purchasing this product.
For proper usages and application,
Please read this instruction manual thoroughly.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM-709M2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Camos CM-709M2

  • Page 1 CM-709M2 7” 4CHANNEL DIGITAL MONITOR INSTRUCTION MANUAL Thank you for purchasing this product. For proper usages and application, Please read this instruction manual thoroughly.
  • Page 2: Table Of Contents

    CONTENTS ........3 SAFEGUARD INSTRUCTIONS ................5 FEATURE ............... 5 CONTENT ........6 FUNCTION OF EACH PART ................ 8 FUNCTION ................13 SETTINGS ..... 17 CONNECTING AND INSTALLATION ............. 18 SPECIFICATION...
  • Page 3: Safeguard Instructions

    SAFEGUARD INSTRUCTIONS 7” 4CHANNEL DIGITAL MONITOR Please read the “Safety Rules” carefully before using this product. Following the safety rules prevents users from damages related with the misuse of the product. It is very important to follow these safety rules. We state “Caution” and “Warning” to clarify any potential risk for a damage associated with the misuse of the product.
  • Page 4 WARNING Do not install the product where sudden temperature increasing could be and use the optimum voltage, temperature and humidity. - It may cause electronic shock or malfunction. Take care that the product doesn’ t get wet. - It may cause electronic shock or malfunction. Do not place near of air bag effective range.
  • Page 5: Feature

    FEATURE 7” 4CHANNEL DIGITAL MONITOR • 7” Wide digital TFT LCD with high resolution and low reflection • All functions are displayed on screen (OSD function) • 7 language display (ENG-DEU-ITA-FRA-ESP-KOR-JPN) • DC 12~24V • Touch buttons in front and including remote control •...
  • Page 6: Function Of Each Part

    FUNCTION OF EACH PART 7” 4CHANNEL DIGITAL MONITOR [MONITOR] SENSOR POWER MODE DOWN/UP MENU (REMOTE) ① IR-SENSOR IR-SENSOR ② AV Go into AV mode directly and change to AV input Choose split screen (Full/2/3/4 split), choose audio output ③ MODE ④...
  • Page 7 [REMOTE CONTROLLER] ② ① ⑤ ③ ⑥ ④ ⑧ ⑦ ⑨ ⑫ ⑩ ⑪ ① POWER Power On/Off ② AV Go into AV mode directly and change to AV input ③ OK Choose button on menu ④ ◀▶ Menu setting adjusting ⑤...
  • Page 8: Function

    FUNCTION 7” 4CHANNEL DIGITAL MONITOR POWER ON/OFF MODE DOWN/UP MENU POWER After connecting cigar jack, press POWER button on remote control or monitor then the picture of the camera will be shown on the monitor. ※ If there is no image, the screen will be BLACK. CAM1 CAM 1 image signal receive No image signal...
  • Page 9 MUTE ON/OFF Press MUTE[ ]button on remote control for MUTE function ON/OFF. When MUTE is ON it will be displayed. It disappears for a while OSD MENU is used. ※ When user controls volume while mute function is set, the mute function turns off.
  • Page 10 CHANGE SPLIT MODE MODE DOWN/UP MENU POWER Each split screen has two options. On split mode, press DOWN/UP button of monitor or split screen button of remote control then the screen switches between both options. 2 SPLIT 3 SPLIT 4 SPLIT 2 SPLIT 3 SPLIT H 4 SPLIT...
  • Page 11 2) AV mode MODE DOWN/UP MENU POWER On camera mode, press AV button of monitor or remote control then the screen goes to AV mode directly. AUX1 AUX2 3) SPLIT mode MODE DOWN/UP MENU POWER To choose the OSD MENU [SETUP] on each split mode, press menu button of moni- tor or SETUP button of remote control.
  • Page 12 SCREEN SWITCH WHILE TRIGGER INPUT <Trigger input> or <trigger signal> is when a circuit works by a signal, for example if driver uses right/left turn signal or reverse gear, the monitor shows connected camera on driving mode. ※ Below example is based on {TRG1 (Left turn signal)=CAM1 / TRG2 (Right turn signal)=CAM2 / TRG3 (Reverse gear)=CAM3 / TRG4 (Front or something else)=CAM4 }.
  • Page 13 3) When there is the TRG3(Rear light) input, CAM3 will be shown as full screen and user can also choose 2 split screen. ※ This function is available for rear and side screen. CAM1 CAM3 CAM3 Press ▼button of remote control (or DOWN button of monitor), then it shows 2 split screen as right for CAM3 (Rear) and left...
  • Page 14 5) When there is an input signal of more than 2 triggers, the monitor displays fully connected screen (Trigger input screen) as the priority order. And the screen switsches back when the signal switsches off, the rest will be displayed as the priority order ※...
  • Page 15: Settings

    SETTINGS 7” 4CHANNEL DIGITAL MONITOR Video Standard System, NTSC/PAL conversion If use PAL system on NTSC system using country, it may cause a malfunction. This products can convert NTSC/PAL system manually but it is not automatic. Before use, please check and set the system. NTSC system country : USA, CANADA, JAPAN, KOREA, TAIWAN, MEXICO PAL system country : AUSTRALIA, BELGIUM, CHINA, DENMARK, FINLAND, Attention...
  • Page 16 Brightness and contrast setting User can control BRIGHT/CONTRAST/COLOR/HUE/SATUREATION. ※ Each menu is set 50 from the factory. MODE DOWN/UP MENU POWER 1) Press SETUP button of remote control PICTURE SETUP (or MENU button of monitor) to go into DIMMER AUTO OSD MENU [PICTURE SETUP].
  • Page 17 Initialization ※ It initializes monitor as from the factory mode. (Except on Video Standard System, NTSC/PAL) MODE DOWN/UP MENU POWER 1) Press SETUP button remote PICTURE SETUP control(or MENU button of monitor) DIMMER AUTO to go into OSD MENU [PICTURE BRIGHT SETUP].
  • Page 18 Screen Information MODE DOWN/UP MENU POWER Press MODE button of monitor or RECALL button of remote control, then it displays actual screen information (Input mode / Audio output / Volume). CAM1 CAM2 CAM3 CAM4 VOLUME CAMERA Mirror/Normal mode setting MODE DOWN/UP MENU POWER 1) Press SETUP button of remote control (or MENU button of monitor) to go into...
  • Page 19: Connecting And Installation

    CONNECTING AND INSTALLATION 7” 4CHANNEL DIGITAL MONITOR TAPPING SCREW T1 M4.0 X 12 (3ea) ⑤ INSERT BOLT (2ea) FLAT WASHER M3 (4ea) ⑥ ⑥ (1) Clean the place where to install stand and install stand firmly after removing protect tape of stand bottom. (2) Fix the stand with enclosed screws.
  • Page 21: Specification

    SPECIFICATION 7” 4CHANNEL DIGITAL MONITOR NTSC Screen size 7 inch WVGA (800 X 480) Resolution LCD Panel Brightness 250 cd/m 400 : 1 Contrast ratio 70/70/45/55 View angle(L/R/U/D) DC 12V-24V Voltage Power supply Current 500mA (DC 12V, monitor set only) NTSC/PAL Input system Horizental...
  • Page 24 INSTRUCTION MANUAL ver. 1.0 PRINTED IN KOREA...
