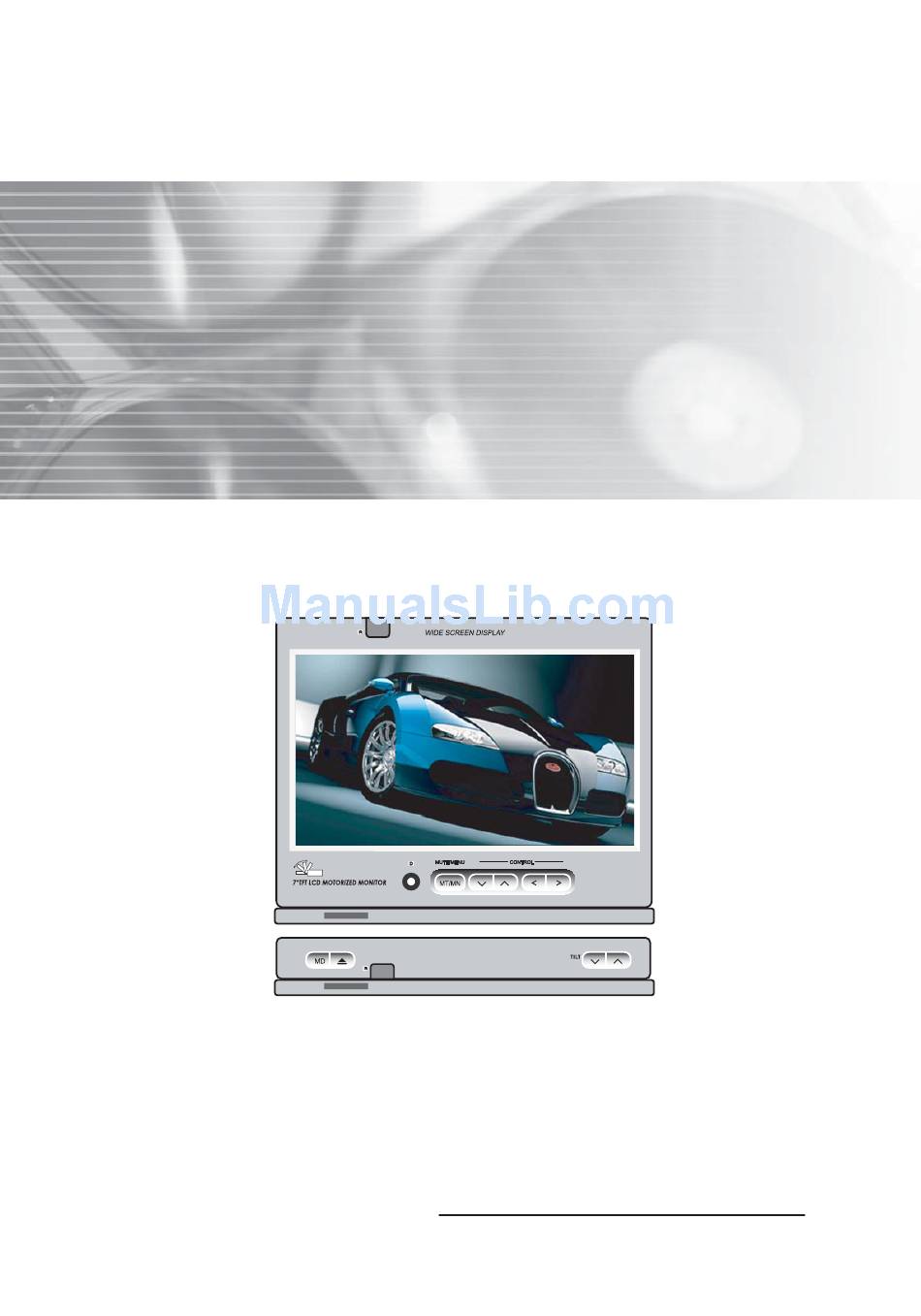

OWNER'S MANUAL
PW
MOTORIZED 7" WIDE
TFT LCD COLOR MONITOR
CNT-701

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CNT-701 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Camos CNT-701

Summary of Contents for Camos CNT-701

  • Page 1 OWNER’S MANUAL MOTORIZED 7” WIDE TFT LCD COLOR MONITOR CNT-701...
  • Page 2 ANY CHANGES OR MODIFICATIONS IN ANY CHANGES OR MODIFICATIONS IN CONSTRUCTION OF THIS UNIT DEVICE WHICH CONSTRUCTION OF THIS UNIT DEVICE WHICH IS NOT APPROVED BY THE PARTY RESPONSIBLE IS NOT APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIACE COULD VOID THE USER’S FOR COMPLIACE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

  • Page 3: Installation Location

    WARNING The WARNING mark is intended to alert the user to the important operating instructions. Wrong operations will result in severe injury to the unit. DO NOT WATCH MONITOR WHILE DRIVING Watching the video while driving may interrupt driving and may cause an accident. DO NOT OPERATE ANY FUNCTION THAT TAKE YOUR ATTENTION AWAY FROM DRIVING YOUR VEHICLE Operation of some functions for this unit is very complicated.

  • Page 4: Table Of Contents

    CONTENTS Contents GETTING STARTED …………………………………………………………… ……………………………………………………………… FEATURES …………………………………………………………… ACCESSORIES …………………………………………………………… CONNECTION …………………………………………………………… INSTALLATION ………………………………………………………………… MONITOR …………………………………………………… REMOTE CONTROL …………………………………………………………… BASIC OPERATION ……………………………………………………… POWER ON / OFF ……………………………………………… OPENING THE MONITOR ……………………………………………… CLOSING THE MONITOR …………………………………………… ADJUSTING TILT POSITION ………………………………………… ADJUSTING MOVE POSITON ……………………...

  • Page 5: Getting Started

    Getting Started FEATURES 7" wide high resolution TFT active matrix display Slim size (1/2 DIN) design NTSC/PAL compatible Built-in FM transmitter 2 Video input / 1 Video output ACCESSORIES Remote control & 1. Speaker Lithium battery CR2025 SPK-L MENU SPK-R MODE MUTE OPEN...

  • Page 6: Connection

    Getting Started Connection RS-232/TMC YELLOW BLACK To AUDIO OUTPUT (R) WHITE To AUDIO OUTPUT (L) YELLOW To VIDEO OUTPUT YELLOW To REAR VIEW CAMERA VIDEO INPUT AVIN-R To AUDIO INPUT (R) AVIN-L WHITE PINK - ILLUMINATION To AUDIO INPUT (L) AVIN-V YELLOW SPK-L...

  • Page 7: Monitor

    Getting Started MONITOR Function Short Key Long Key Mode Button Power Button Open / Close Button Tilt Up / Down Button Move Up / Down Button Mute Button Menu Button Cursor Up / Down Cursor Left / Right , Volume Up / Down Button Remote sensor SD-Card Reader...

  • Page 8: Remote Control

    Getting Started REMOTE CONTROL Power Mode MENU MENU Volume Up / Down , Cursor Left / Right Tilt In / Out Mute Menu Cusor Up / Down Tilt Up / Down Open IN IN TILT TILT TILT TILT OPEN OPEN Remote Control replacing battery Opening the battery cover.

  • Page 9: Basic Operation

    Basic Operation POWER ON / OFF 1. POWER ON Press any button on the unit or Power Button of the remote control to turn the power on. The monitor is automatically opened. When REVERSE wire is connected to the signal output (12V) of the reverse gear, the monitor is automatically opened and the mode is set to RVC 2.

  • Page 10: Adjusting Move Positon

    Basic Operation ADJUSTING MOVE POSITION The move position can be adjusted in 4 steps by pressing more than 2 sec Tilt Up / Down Button or Tilt In / Out Button of the remote controller. If the monitor is not parallel to the front of the unit, the MOVE function is not operated.

  • Page 11: Setting The Camera In

    Basic Operation SETTING THE CAMERA IN When you install a rear view camera, you must connect a rear view camera to RVC. If you put the gear lever to R (Reverse) to move your car backward, the rear view camera video will be displayed on the screen through the RVC mode.

  • Page 12: Function

    Function SELECTING THE MENU You can select the menu to make this unit or VIDEO sources connected to this unit in the best conditions. 1. Press Menu Button to select desired menu. Each time you press Menu Button, the menu changes as follows. PICTURE AUDIO SETTING...

  • Page 13: Audio Control

    Function : Each time you press SCREEN FLIP button, screen display will be changed 7. SCREEN FLIP flip mode and normal mode. The FLIP screen will be useful when this unit is installed in reversed mode as follows (FLIP mode: 180° rotated image) For memorizing re-adjusting value, press Menu Button and exit PICTURE page.

  • Page 14: Menu Setting Control

    Function MENU SETTING CONTROL Press Menu Button repeatedly to show MENU SETTING on the screen. Press Cursor Up / Down Button to select the desired item. Press Cursor Left / Right Button to change the item’s value or level. : TV output type select (AUTO, PAL, NTSC) 1.

  • Page 15: Trouble Shooting

    GENERAL Power does not turn on. (No sound is produced) Fuse is blown Replace with a fuse of the same amperage. If the ● ● fuse blow again, consult installation shop where you purchased it from. Incorrect wiring Consult installation shop where you purchased it ●...

  • Page 16: Specification

    GENERAL Power Supply DC 14V ( 11V ~ 15V ) Power Consumption 1.5 A Operating Temperature -10℃ ~ +60℃ Video Input signal 1.0 Vpp / 75Ω Video output signal 1.0 Vpp / 75Ω Dimension (W × H × D) 178 × 25 × 189 mm Polarity Negative Ground Weight...
