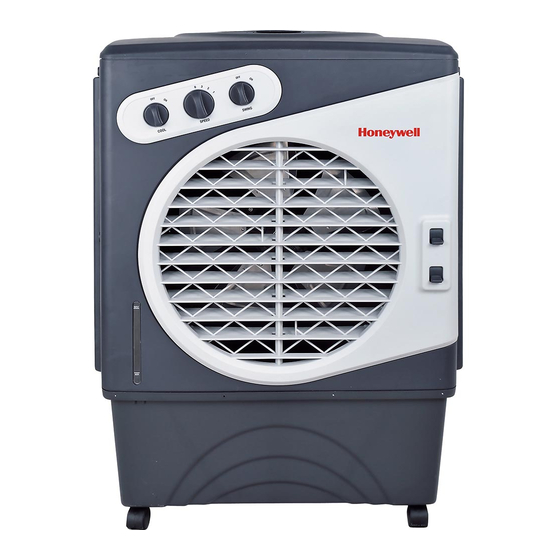

Honeywell CO60PM Owner's Manual

Portable evaporative air cooler ideal for indoor & outdoor use power rating: 220 watts voltage rating: 220 volt ac, 50hz
Hide thumbs

Advertisement

Portable Evaporative Air Cooler
Ideal for Indoor & Outdoor Use
OWNER'S MANUAL
Read and save these instructions before use
Model: CO60PM
Power rating: 220 Watts
Voltage rating: 220 Volt AC, 50Hz
Made in P.R.C.

Advertisement

Table of Contents
loading

  Related Manuals for Honeywell CO60PM

  Summary of Contents for Honeywell CO60PM

  • Page 1 Portable Evaporative Air Cooler Ideal for Indoor & Outdoor Use OWNER’S MANUAL Read and save these instructions before use Model: CO60PM Power rating: 220 Watts Voltage rating: 220 Volt AC, 50Hz Made in P.R.C.
  • Page 2: Quick Start Guide

    QUICK START GUIDE Fill with water and plug into standard power outlet. Note : Please make sure that the power outlet is set to correct settings as per product specifications. Place near open door or window. (When used in Indoors) Note : Evaporative Air Coolers work on evaporative cooling mechanism which requires cross ventillation.
  • Page 3: Table Of Contents

    INDEX Read all instructions carefully before setting up and operating the unit, and please keep this instruction manual for future reference. This manual is designed to provide you with important information needed to setup, operate, maintain, and troubleshoot your cooler. Failure to follow these instructions may damage and/or impair its operation and void the warranty.
  • Page 4: Thank You

    THANK YOU! THANK YOU! Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For optimum cooling performance from your unit, fill the water tank with water & ice (if available) to increase its cooling power. COOLER LOCATION (IMPORTANT TO READ) (When used in Indoors) Place the cooler in front of an open door or window.
  • Page 5: User Tips

    USER TIPS COOL ~ EFFICIENT ~ NATURAL Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This breeze drops the temperature and has a relaxing cooling effect. The evaporative air cooler cools the air by means of the evaporation of water. When water evaporates into the air, the result is a mixture of air and water molecules.
  • Page 6 USER TIPS The recommended maximum relative humidity level is 60% orless, which allows a noticeable temperature decrease. Thetemperature decrease will be greater in drier climates becausehigher evaporation occurs when the humidity is low. The evaporative air cooler should not be used in enclosedspaces.
  • Page 7: Safety Rules

    SAFETY RULES READ AND SAVE THESE INSTRUCTIONS: When using electrical appliances, basic safety precautions should always be followed: Your cooler runs on 220 Volts, 50 Hz current. Check • thehousehold voltage to ensure it matches the appliance's 220 Volt AC 50Hz ratespecification.
  • Page 8 SAFETY RULES • DO NOT attempt to repair or adjust any electrical or mechanicalfunctions of the cooler, as this may void the warranty. • DO NOT cover the air inlet or outlet on the appliance as this may cause motor damage. •...
  • Page 9: Parts Description

    PARTS DESCRIPTION 1 Water / Ice Inlet 8 Water Level Indicator 2 Handle 9 Control Panel 3 Left Honeycomb Panel 10 Right Honeycomb Panel 4 Lever for Horizontal Louvers 11 Continuous Water Inlet 5 Water Tank 12 Water Drain Plug 6 Castors Wheels 13 Backside Honeycomb Panel 7 Horizontal Louvers...
  • Page 10: Use & Operation

    USE & OPERATION CONTROL PANEL OFF ON OFF ON COOL SWING SPEED NOTE: Speed control may be marked as High / Med / Low in certain units.
  • Page 11 USE & OPERATION CONTROL KNOBS SPEED / ON - OFF Connect to the power supply and turn the Speed knob. The fan will start. Change the speed from 1 for Low to 2 for Medium to 3 High. To switch OFF the unit turn the Speed know to "0". SPEED COOL To begin cooling the desired area press the ''COOL'' button.
  • Page 12: Fill Water

    USE & OPERATION INSTALLING HOSE ADAPTER NOTE : Continuous water supply connection is optional, and may not be provided with all models. Connect the garden hose Connector and turn on the water. Verify water tight connections by visually examining boththe float/hose connections.
  • Page 13: Cleaning & Maintenance

    CLEANING & MAINTENANCE WARNING • Before cleaning the unit, switch it to the ''off'' position and remove the plug from the power socket. • To clean the outside, use a damp cloth to remove dirt and dust. • Never use corrosive elements or any chemicals to clean this product. •...
  • Page 14 CLEANING & MAINTENANCE MAINTAINING AND CHANGING THE HONEYCOMB • The appliance is supplied with Honeycomb cooling media. • The cleaning frequency for the Honeycomb media depends on local air and waterconditions. In areas where the mineral content of water is high, mineral depositsmay build up on the honeycomb cooling media and restrict air flow.
  • Page 15: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION No discharge of air Cord is not plugged in. Make sure power cord is plugged in and the supply switch in ON. Power is not on. Try to turn the unit ON by changing operation settings of manual knobs on the control panel.
  • Page 16: Technical Specifications

    TECHNICAL SPECIFICATIONS MODEL NO. CO60PM Voltage 220V 50Hz Frequency Wattage 200 Watts Water Tank Capacity 60 Litre Cooling Media Honeycomb Product Dimension 700 (L) x 466 (W) x 1017 (H) 20 Kg Net Weight...
  • Page 17: Electrical Wiring Diagram

    ELECTRICAL WIRING DIAGRAM...
  • Page 18 © 2012 AirTek International Corporation Limited The Honeywell Trademark is used under license from Honeywell International Inc. Honeywell International Inc. makes no representation or warranties with respect to this product. Manufactured by AirTek International Corporation Limited.
