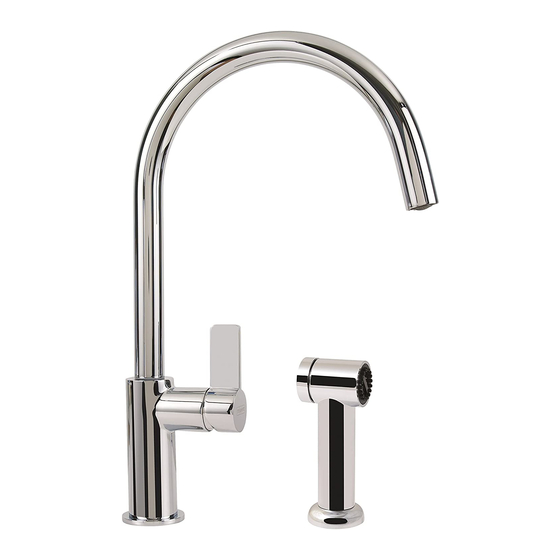

Franke FFS3100 Installation Manual

STANDARD MAINTENANCE AND TROUBLESHOOTING
REPLACING THE CARTRIDGE
1. Shut o the water supply to the faucet.
2. Turn on the faucet brie y to relieve any pressure inside the faucet.
3. Move the faucet handle to the " OFF" position.
4. Remove indicator cap C from the lever handle.
5. Remove the screw B using an allen key.
6. Pull the lever handle A from the faucet body .
7. Unscrew the cap D.
8. Unscrew the cartridge lock nut E.
9. Lift ceramic disk cartridge F from the body and replace it with new
cartridge. Ensure the two lugs on bottom of the cartridge sit properly
in the allocated holes at the base of the body.
10. Re-assemble faucet in reverse order.
11. Test for leakage.
GENERAL MAINTENANCE
Clean aerator periodically for any buildup .
Do not use harsh detergents, solvents, chemical agents, metallic sponges,
etc. that could harm the surface and damage the nish.
Clean only with a soft sponge and soapy water.

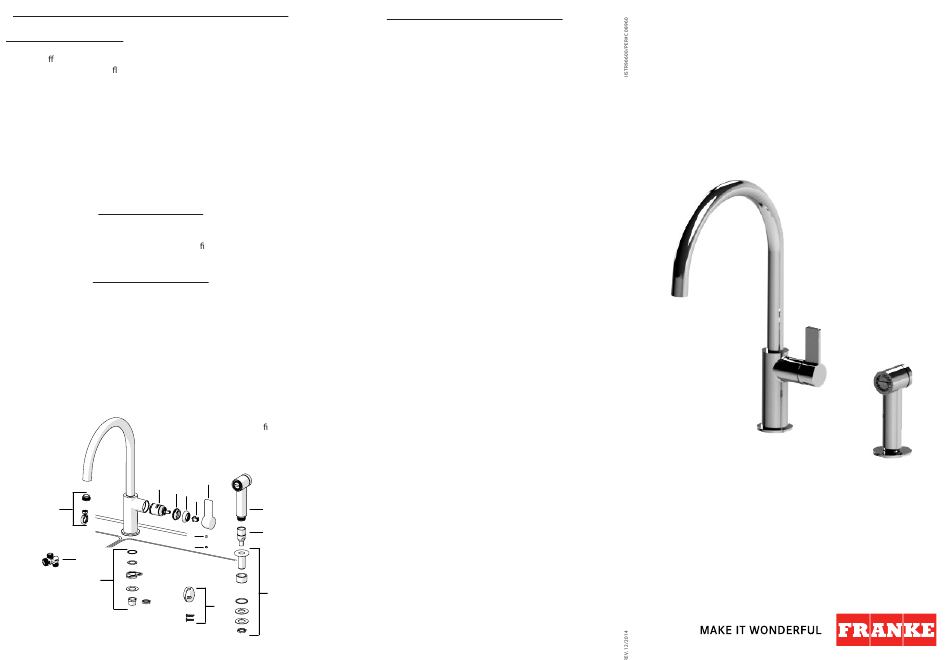

SPARE / REPLACEMENT LIST
A+B+C+G Handle assembly
D. Cap
E. Lock nut
F. Cartridge
H. Side Spray Supply Hose
J. Aerator WithWrench
K. Side Spray Shower
L. Mounting HandwaveKit
M. Side Spray Diverter
N. Weight
O. Side Spray Mounting Hardware Kit F3109
F
E
D
J
M
L
Franke Consumer Products, Inc., Kitchen Systems Division extends
the following warranty to the original purchaser of its faucets effective
January 1, 2003.
All faucets installed in a private residence will carry a limited lifetime
warranty on all mechanical parts to be free of manufacturing defects
in material and workmanship under normal usage. All chrome finishes
carry a limited lifetime warranty; all other finishes are warranted for
five (5) years form the original date of purchase.
Marine and Outdoor Installation: Franke Consumer Products, Inc.
faucets are NOT warranted for Marine and Outdoor installations.
This warranty applies only to the original owner, providing the product
has been installed in accordance with our installation instructions,
used as recommended and in a normal residential application. In the
event of a warranty claim, the owner will be required to provide proof
of purchase - save sales receipt. This warranty covers all components
which make the product operational. Franke, at its option, may repair
or replace the product or components necessary to restore the pro-
duct to good working condition. Franke reserves the right to inspect
the installation prior to the actual replacement of the product or com-
ponent part. This warranty does not cover misuse or abuse, acciden-
F3101* tal damages, scuffs or scratches, improper installation, abnormal
F2902*
usage, negligence or damage caused by improper maintenance or
F2903
cleaning. Normal wear of parts is excluded from the warranty.
F2904
Damage caused by impurities or acts beyond our control are not
F3107
covered. Any product or part which has been repaired or altered in
F3106
any manner outside of Franke's factory, unless previously authorized
F3108*
in writing by Franke, will void warranty. Any replacement excludes
F3110
transportation and any labor re-installation costs. This warranty
F3112
does not allow recovery of incidental or consequential damages such
F3102
as loss of use, delay, property damage or other consequential dama-
ge, and Franke accepts no liability for such damages.
*Must specify nish
The Franke warranty is limited to the above conditions and to the
CH chrome
warranty period specified herein and is exclusive. Franke DISCLAIMS
SN satin nickel
all other warranties, expressed or implied, including IMPLIED
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS
FOR AS PARTICULAR PURPOSE. This warranty gives you
A
specific legal rights that may vary from state to state.
G
K Further information
For any further information about our products, about the installation of
them or about the guarantee, please dial the number of the customer
H
B
service:
C
Franke Kitchen Systems
800 Aviation Parkway
O
Smyrna, TN 37167, USA
N
Phone: 800-626-5771
Email: ks-customerservice.us@franke.com
LIMITED LIFETIME WARRANTY
INSTALLATION MANUAL
FFS3100 - FFS3180
