Franke FFS5200 Installation Manual

STANDARD MAINTENANCE AND TROUBLESHOOTING
REPLACING THE CARTRIDGE
1. Shut o the water supply to the faucet.
2. Turn on the faucet brie y to relieve any pressure inside the faucet.
3. Unscrew lever handle C from the handle A and remove the pin handle
screw B using an allen key.
4. Remove handle A from the faucet body .
5. Use 20 mm socket to unscrew valve from faucet body and replace
with new cartridge E/D, tighten new cartridge E/D,
DO NOT exceed 177 in-lbs of torque.
6. Reassemble faucet in reverse order and test for leakage.
GENERAL MAINTENANCE
Clean aerator periodically for any buildup .
Do not use harsh detergents, solvents, chemical agents, metallic sponges,
etc. that could harm the surface and damage the nish.
Clean only with a soft sponge and soapy water.
Do not store chemicals or cleaning agents in the immediate vicinity of the
faucet and connection hoses. Chemical vapors could cause damage.

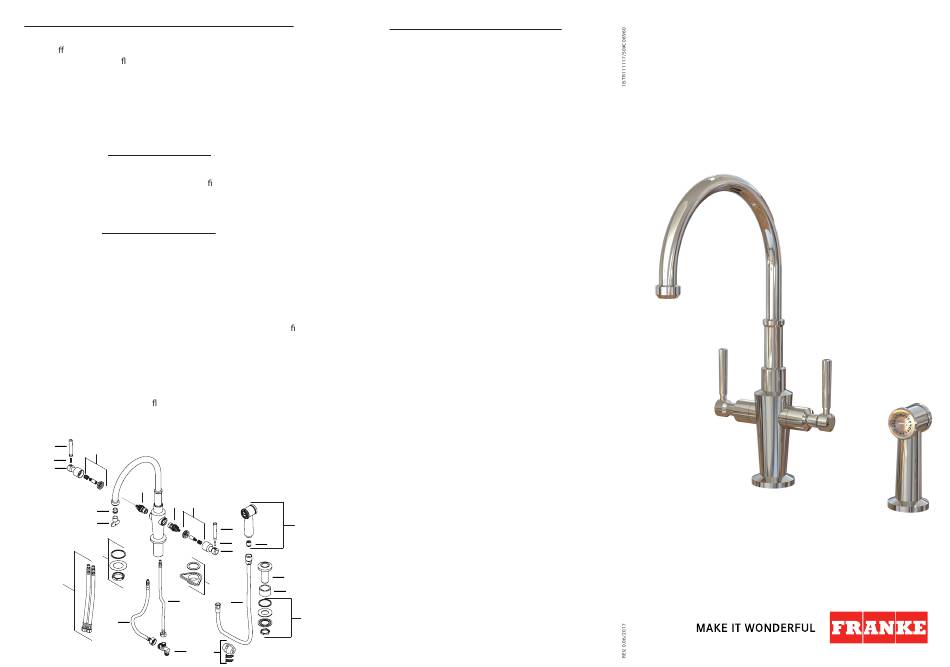

SPARE / REPLACEMENT LIST
A+B+C+G. Handle assembly F5212*
. D Cartridge right F4315
E. Cartridge left FT3102
F. Aerator F2810
H. Aerator Key F2809
I. Mounting Hardware Kit F5219
J . Side spray diverter F3112
K. F5213
Side spray supply hose
L. Side spray return hose F5214
M. Supply hoses F5203
N . Fixing Kit F3125
O. Side spray supply hose F3107
P. Weight F3102
Q Hardware Set F3127
R. Plastic spacer F3126
S . Side spray mounting ange F5221*
T. F5215*
Side spray assembly
U. Check Valve 1.75 gpm F5216
C
G
B
A
E
G
D
F
H
I
M
K
L
J
Franke Kitchen Systems,LLC extends the following warranty to
the original purchaser of its faucets effective January 1, 2003.
All faucets installed in a private residence will carry a limited lifetime
warranty on all mechanical parts to be free of manufacturing defects
in material and workmanship under normal usage. All chrome finishes
carry a limited lifetime warranty; all other finishes are warranted for
five (5) years form the original date of purchase.
Marine and Outdoor Installation
warranted for Marine and Outdoor installations.
This warranty applies only to the original owner, providing the product
has been installed in accordance with our installation instructions,
used as recommended and in a normal residential application. In the
event of a warranty claim, the owner will be required to provide proof
of purchase - save sales receipt. This warranty covers all components
which make the product operational. Franke, at its option, may repair
or replace the product or components necessary to restore the pro-
duct to good working condition. Franke reserves the right to inspect
the installation prior to the actual replacement of the product or com-
ponent part. This warranty does not cover misuse or abuse, acciden-
tal damages, scuffs or scratches, improper installation, abnormal
usage, negligence or damage caused by improper maintenance or
cleaning. Normal wear of parts is excluded from the warranty.
*Must specify nish
Damage caused by impurities or acts beyond our control are not
CH chrome
covered. Any product or part which has been repaired or altered in
SN satin nickel
any manner outside of Franke's factory, unless previously authorized
PN polished nickel
in writing by Franke, will void warranty. Any replacement excludes
MB matt black
transportation and any labor re-installation costs. This warranty
does not allow recovery of incidental or consequential damages such
as loss of use, delay, property damage or other consequential dama-
ge, and Franke accepts no liability for such damages.
The Franke warranty is limited to the above conditions and to the
warranty period specified herein and is exclusive. Franke DISCLAIMS
all other warranties, expressed or implied, including IMPLIED
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS
FOR A PARTICULAR PURPOSE. This warranty gives you
specific legal rights that may vary from state to state.
Further information
For any further information about our products, about the installation of
T
C
them or about the guarantee, please contact our customer service
B
U
department:
A
Franke Kitchen Systems
S
800 Aviation Parkway
N
R
Smyrna, TN 37167, USA
O
Phone: 800-626-5771
Q Email: ks-customerservice.us@franke.com
P
LIMITED LIFETIME WARRANTY
: Franke faucets are NOT
INSTALLATION MANUAL

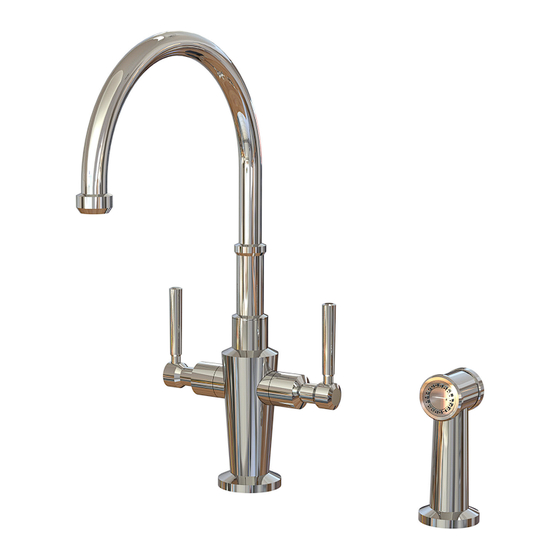

ABSINTHE SIDE SPRAY
FFS5200 - FFS5220 - FFS5270 - FFS5280
