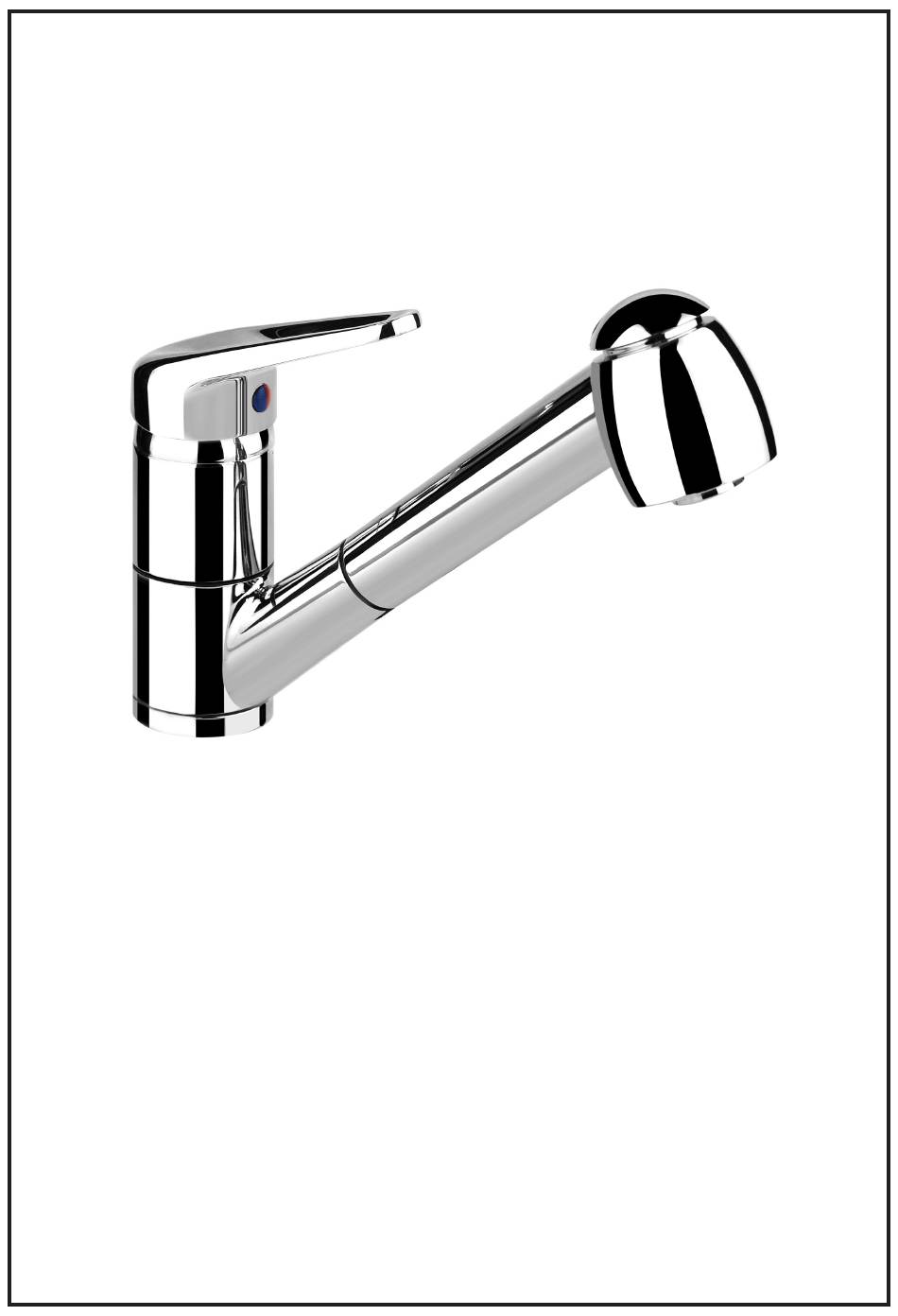

- Page 1 FF2200-FF2280 SERIES Pull-Out Spray Faucet Installation guide...
- Page 2 Pre-installation information - Préliminaires - Preliminares Fig. 1...
-
Page 3: Technical Features
Pre-installation information - Préliminaires - Preliminares Before installation and start-up Attention! The supply pipes have to be rinsed thoroughly before the installation of the mixer, so that no shavings, welding or packaging residues or other dirt are left in the pipes. Foreign bodies can enter the mixer through the rinsed pipes and could damage the washers/O-rings. - Page 4 Pre-installation information - Préliminaires - Preliminares - Failure to comply with these requirements will void the warranty. - Le respect de ces indications, assure les droits de garantie, garantit les caractéristiques déclarées des produits et il en assure la complète fiabilité. - El respeto de dichas indicaciones salvaguarda los derechos de garantía, garantiza las características declaradas de los productos y asegura su perfecta fiabilidad.
- Page 5 Pre-installation information - Préliminaires - Preliminares - Avoid cleaning braided hoses with harsh chemicals, as this may cause damage to the hoses. - Le contact prolongé avec des substances même peu agressives peut provoquer la détérioration de la tresse et l’éclatement conséquent du flexible. - El contacto prolongado con sustancias, aun si poco agresivas, puede perjudicar la trenza y provocar la consecuente ruptura del flexo.
- Page 6 Pre-installation information - Préliminaires - Preliminares Fig. 2 Package content: 1 - Mixer 2 - Fastening set 3 - Lead counterweight 4 - Check valve-holder 5 - Handshower Contenu de l’emballage: 1 - Mèlangeur 2 - Set de fixage 3 - Poids en plomb 4 - Porte-vanne de non retour 5 - Douchette Contenido del embalaje:...
- Page 7 Pre-installation information - Préliminaires - Preliminares Fig. 3 1-7/16” 9/16” [37 mm] [14 mm] 5/8” 13/16” [16 mm] [20 mm] - Installation tools - Outils nécessaires pour l’installation - Herramienta necesaria para la instalación...
- Page 8 Installation - Installation - Instalación Fig. 4 Fig. 5 1-7/16” [37 mm] Fig. 6 Fig. 7 Fig. 8 13/16” [20 mm] Fig. 9 9/16” 5/8” [14 mm] [16 mm] Blue Cold...
-
Page 9: Installation
Installation - Installation - Instalación INSTALLATION Before inserting the single lever group in the hole of the sink, make sure that the base gasket is properly positioned in its seat and that the flexible hoses are well tightened to the body of the tap. Place the single lever group in the hole of the sink, orienting the spout toward the sink bowl. - Page 10 Use - Usage - Uso Fig. 10 Fig. 11 Fig. 12 120°...
- Page 11 Use - Usage - Uso - Open the handle to the right to start water supply; the more the handle is opened the more water is supplied. When idle the handle is placed with the lever towards the top and when opened cold water is supplied - Turn up the handle to open cold water, turn it down to open hot water.
- Page 12 Maintenance - Entretien - Manutención Fig. 13 Spare parts: Piezas de repuesto: 1 - Complete lever 1 - Palanca completa 2 - Metal ring 2 - Virola de fijación del cartucho 3 - Cartridge 3 - Cartucho 4 - Fastening set 4 - Juego de fijación 5 - Supply hoses 5 - Flexibles de alimentación...
-
Page 13: Cartridge Replacement
Maintenance - Entretien - Manutención Fig. 14 Fig. 15 1/8” [2,5 mm] 13/16” [30 mm] CARTRIDGE REPLACEMENT Before carrying out this operation make sure that water supply is turned off. Remove the finish plug paying attention not to damage it and unscrew the screw (A) to extract the handle (B). - Page 14 Damage caused by impurities or acts beyond our control are not covered. Any product or part which has been repaired or altered in any manner outside of Franke’s factory, unless previously authorized in writing by Franke, will void warranty. Any replacement excludes transportation and any labor re-installation costs.
- Page 15 Conditions de garanties à vie Franke consumer Products. Inc. kitchen systems division étend la durée de sa garantie. A partir du 01 janvier 2003, le produit est garanti à vie ( en référence à la personne ayant acheté le produit.).
- Page 16 La presente garantìa concierne todos los elementos ata- dos a la funciòn del produco. Franke, a su jucio, podrà arreglar o reemplazar el produco o los miembros necesarios a restablecer el buen funcionamiento del mismo. Franke se reserva el derecho a inspeccio- nar el produco antes de la sustituciòn del mismo o sus partes.
