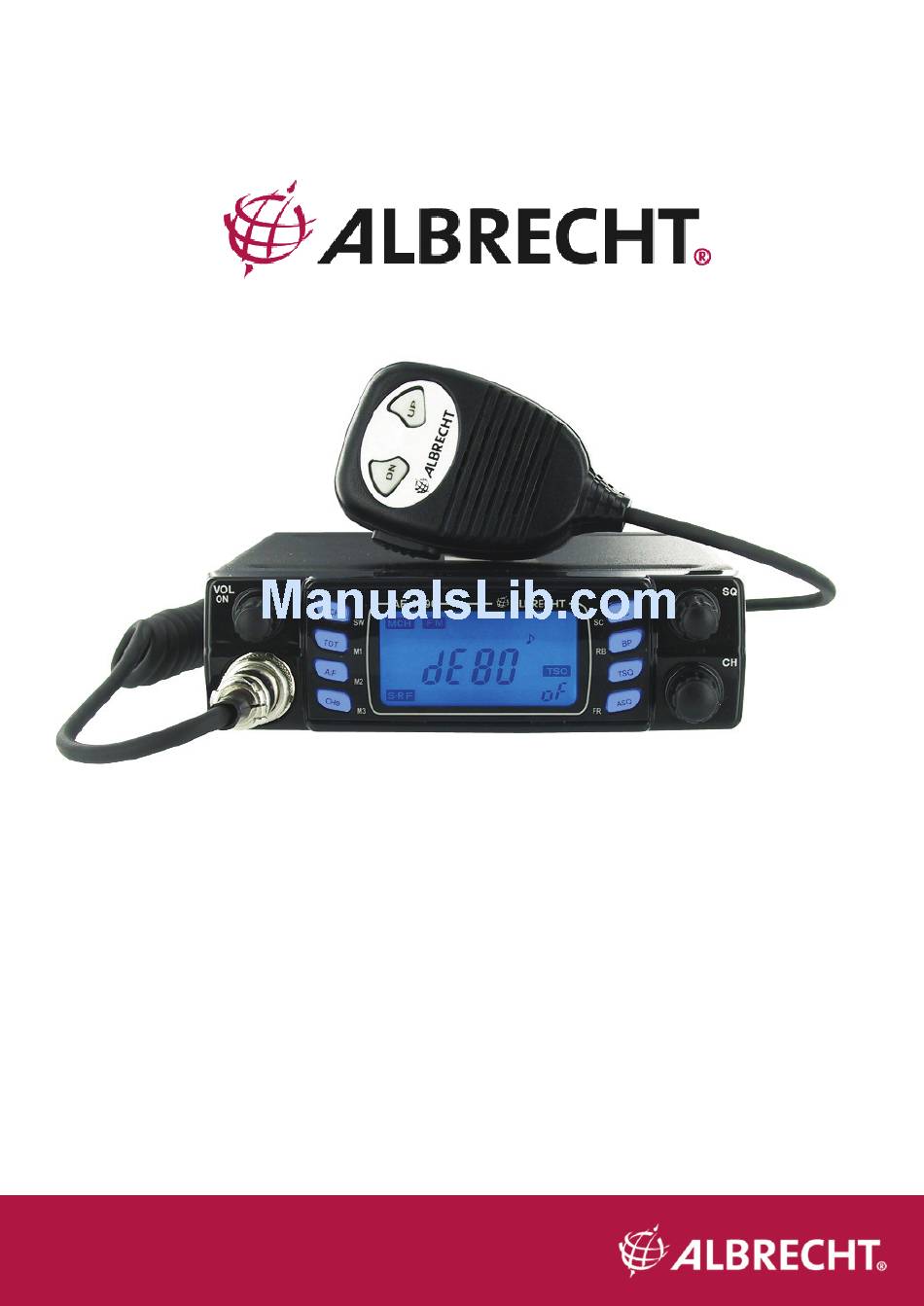

- Page 1 CB RADIO Operating Manual AE 6690 Instrucciones breves AE 6690 Aide-mémoire AE 6690 Downloaded from www.cbradio.nl...
-
Page 2: Table Of Contents
Index Introduction Accessories included Installation of the radio Power supply connection Replacing a fuse Antenna connection / Rear view Installation instructions of the vehicle manufacturers Legal Details CE-label Safety Precautions Radio Passport Front view / Operation Country-programming Most important functions Receiving Switching on and adjusting volume Selecting the operating channel... -
Page 3: Introduction
Your new Albrecht CB Radio AE 6690 offers you: • 40 channels FM / 4 watt, 40 channels AM / 1 watt (programming 40/40 EU) •... -
Page 4: Installation Of The Radio
Installation of the radio You can either operate your ALBRECHT AE 6690 in the car or at home as a base station. For installation as a mobile station in the car, a mobile mount device is enclosed. Mount the set in such a way that it is not exposed to direct sunlight if possible, as this would lead to an increase in the temperature and can decrease the (set’s) working life. -
Page 5: Replacing A Fuse
1,5 – 2 Ampere at 12 – 13,8 Volt constant voltage. A good and suitable power supply would be a power supply with order-nr. 4744 from ALBRECHT. Unstabilised power supplies, charger for car batteries or the popular cooling bag - power supplies are... -
Page 6: Antenna Connection / Rear View
Plus (+) connection of the power supply and the black wire with the Minus (-) connection. Antenna connection Connect your CB antenna to the ANT socket on the rear side of your ALBRECHT AE 6690. Most CB antennas must be tuned to best radiation during installation to give highest effective communication range. -
Page 7: Safety Precautions
Please also take road safety into account! CB Radio (even when only receiving, particularly when volume is turned up) can divert your attention from the road! Road safety is of course to be given priority! Therefore only use your ALBRECHT AE 6690 when the traffic situation enables it to be used safely. -
Page 8: Radio Passport
ALBRECHT RADIO PASSPORT AE 6690 This international standard version and the FM only version of this CB radio complies to the latest European regulations (R&TTE directive and European harmonised standards) and has been notified in the countries according to following table: (as of January 2009), while we also offer special country restricted versions only for certain countries,... -
Page 9: Front View / Operation

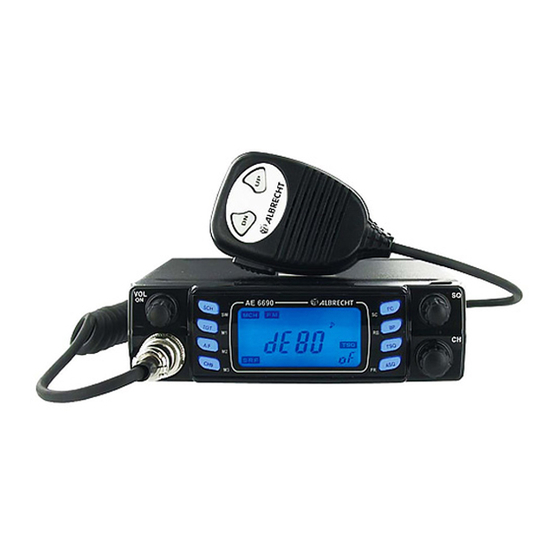

Operation Receive Volume LCD Channel & On-Off Status Display Squelch Rotary control FC – BP – TSQ - ASQ SCH – TOT - AM/FM – 6 pin MIC socket Channel Channel 9 Programming the country-settings Your CB radio can always be switched between 6 different country versions. To switch you need to hold one or two buttons on the front side while you turn on the radio with the VOL/ON (volume and on-/off). -
Page 10: Most Important Functions
Some countries of the European Union (Setting EC) do not allow the use of the AM band. In Croatia, Denmark, Great Britain, Greece, Iceland, Luxemburg, Lithuania, Malta, Norway, Romania, Sweden, Slovenia, Hungary and Cyprus you should use only the EC 40 FM programming. •... -
Page 11: Direct Channel Access
The further the control knob is turned to the right, the stronger a signal has to be in order to be audible through the loudspeaker. In order to adjust the set to be the most sensitive to incoming signals, switch to a free channel: •... -
Page 12: Transmitting And Correct Use Of The Microphone
Scan mode Your AE 6690 has an automatic channel scan, which can be used to observe all channels consequently. First choose the mode (AM or FM). Adjust the muting control to the point at which the receiver should open (see also ‘Adjusting squelch’). Start channel scan •... -
Page 13: Left Side Of The Keys
• The primary function is printed directly on the key and is achieved with a short or longer push on the regarded key • The secondary function you can achieve by first pushing FC and afterwards the regarded key. The printing for the secondary functions is directly next to the keys. •... -
Page 14: Pilot Tone, Ctcss, Tone-Squelch, Tsq
SCAN on/off: press SC longer than 3 seconds, release. Now the scanning of all channels starts. Here all channels are scanned one after another. When the scan function recognizes a busy channel the scan stops for some seconds so that you can listen to the conversation. -
Page 15: External Sockets
UP and Down from the microphone, the socket has a special wiring at Pin No. 4 only valid for this and similar Albrecht transceivers. Apart from the hand microphone included in the package, you can also hook up other microphones, with or without preamplifier, or with or without selective calling devices. -
Page 16: Internet Link Addresses
European warranty regulations The distributor, dealer or retail shop where You bought the radio warrants to the original retail purchaser of this product that should this product or any part of it, under normal use and conditions, be proven defective in material or workmanship within 2 years from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product without charge for parts and repair labor. -
Page 17: Technical Details
Technical Details Microphone socket wiring For Packet Radio & others Pin 1 Mic audio Pin 1 Transmit audio Pin 2 PTT-RX (on ground for receiving) Pin 2 Receive audio Pin 3 PTT-TX (on ground for transmit) Pin 3 PTT key Pin 4 up/down key Pin 4... -
Page 18: Declaration Of Conformity
Declaration of Conformity / Konformitätserklärung We hereby declare that our product: / Wir erklären hiermit, dass unser Produkt CB-Radio Albrecht AE 6690 satisfies all technical regulations applicable to the product within the scope of EU Council Directives, European Standards and national frequency applications:/ alle technischen Anforderungen im Geltungsbereich der EU Richtlinien, europäischer Normen und nationaler... -
Page 19: Short Manual
Short manual AE 6690 – Fast to the point The most important functions at a glance: Before the first time turning on, programming of the corresponding country settings Programming: hold FC + BP key and turn on the radio. Display flashes, select with channel knob CH the wished country setting and confirm with FC 80/40 dE Germany, Czech and Slovak Republic... - Page 20 or M3...
-
Page 21: Instrucciones Breves
Instrucciones breves AE 6690 – Rapidez para la tarea Un vistazo a las funciones más importantes Antes de proceder con la programación considere la configuración regional: 80/40 dE Alemania, CZ e SK 40/40 EU Bélgica, Bulgaria, Alemania, Estonia, Finlandia, Francia, Irlanda, Italia, Letonia, Países Bajos, Polonia, Portugal, Romania, Suiza, España Por favor considere las diversas regulaciones en licencias y tarifas que se tienen en algunos países (vea el manual del equipo). -
Page 22: Aide-Mémoire
Aide- mémoire AE 6690 – Droit au but ! Aperçu des fonctions principales Avant la première mise en service, programmation conforme au code du pays : 80/40 dE Allemagne, République Tchèque et Slovaquie 40/40 EU Allemagne, Bulgaria, Belgique, Espagne, Finlande, France, Grèce, Irlande, Italie, Lettonie, Pays-Bas, Pologne, Portugal, Romania, Suisse Veuillez respecter les différentes réglementations en matière d’autorisation et de taxes dans certains pays (voir carte de l’appareil !). - Page 23 Please contribute to the efficient recycling of used electronic items! Alan Electronics GmbH – Daimlerstr. 1 k – D-63303 Dreieich/ Germany Spare parts and Repair Service: (+49) 6103-9481-22 Service-Fax: (+49) 6103-9481-60 Homepage: www.albrecht-online.de, www.alan-electronics.de e-mail: service@alan-electronics.de Service-Download: www.hobbyradio.de © Alan Electronics GmbH, January 2009...
