Summary of Contents for Albrecht AE 6199

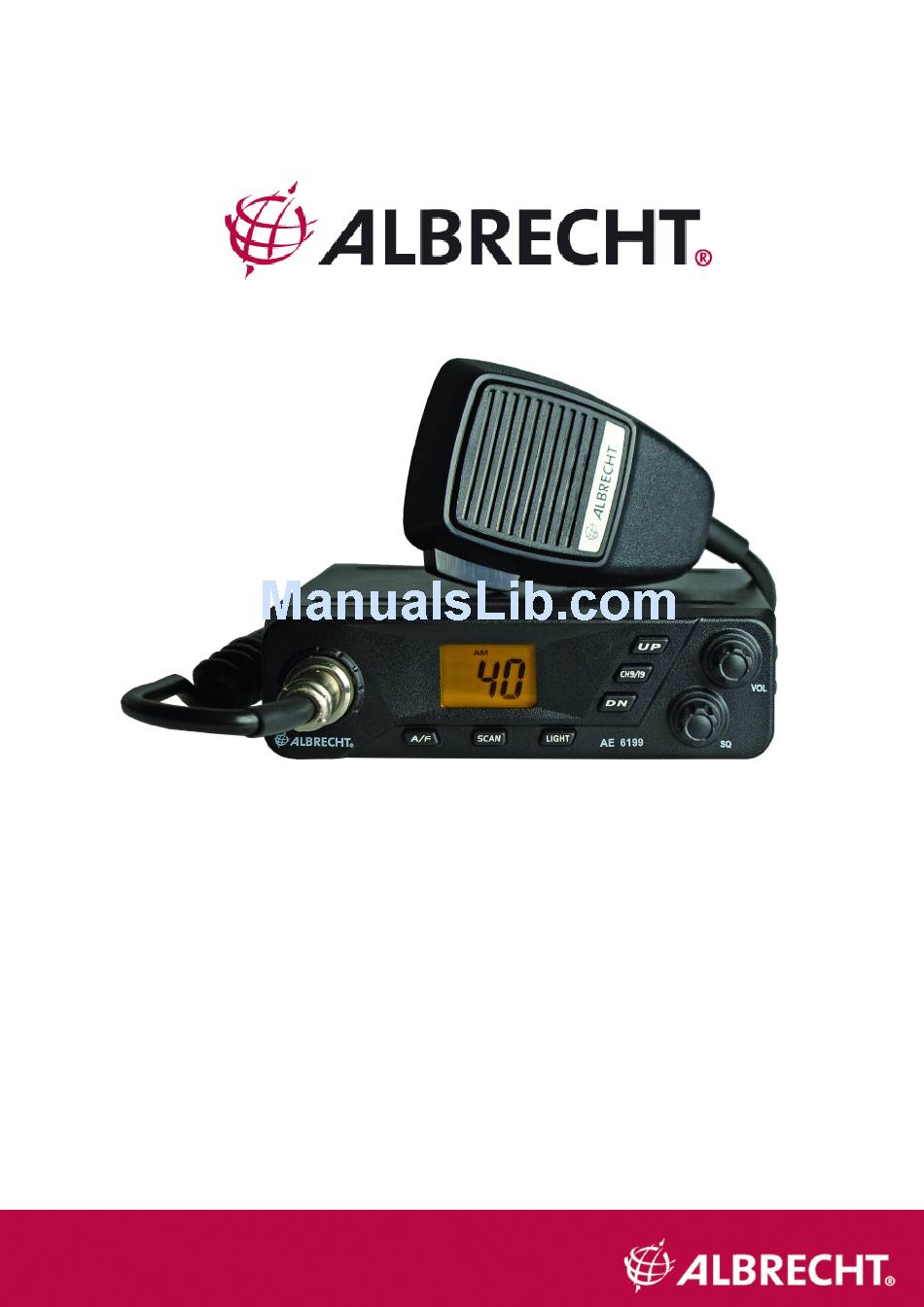

- Page 1 CB RADIO AE 6199 OPERATING MANUAL...
-
Page 2: Table Of Contents
Direct channel access to CH 9 and 19 Scan mode Select display colour Transmitting and correct use of microphone External sockets External loudspeaker Microphone socket Service and Warranty information Disposal and Recycling Technical Details Service contacts Declaration of Conformity Albrecht Radio Passport... -
Page 3: Important Note
Important Note Your Albrecht AE 6199 corresponds to the latest European CB standards. It has a software country switching which allows selecting the operation mode according to the country, where you intend to use the radio. Please make sure that you use only the operation mode which is... -
Page 4: Introduction
Please also take road safety into account! CB Radio can divert your attention from the road! Road safety is of course to be given priority! Therefore only use your ALBRECHT AE 6199 when the traffic situation enables it to be used safely. -

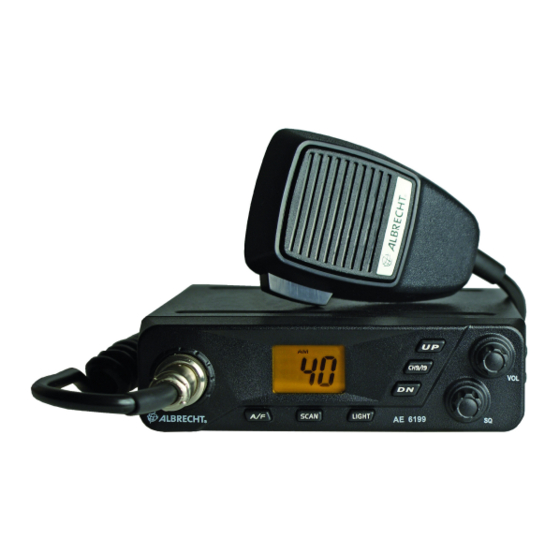

Page 5: Front View
Front View Channel Channel On-Off and Up key 6 pin MIC socket LC Display 9 / 19 Receiving Volume AM - FM Scan Display colour Channel Variable Squelch and Down key ASQ (full ccw) AM or FM Transmitting ASQ on Channel scan active Rear View Antenna socket... -
Page 6: Installation Of The Radio
Installation of the Radio You can either operate your ALBRECHT AE 6199 in the car or at home as a base station. For installation as a mobile station in the car, a mounting bracket is enclosed. Mount the set in such a way that it is not exposed to direct sunlight if possible, as this would lead to an increase in the temperature and can decrease the (set’s) working life. -
Page 7: Antenna Connection
Some antennas, like “Gamma II” are broadbanded and do not need any retuning during installations. Even if your AE 6199 is a heavy duty transceiver with a high-level output stage which can even withstand mismatching of SWR=3, you should still never transmit without... -
Page 8: Operation
ASQ Selecting the correct country code The AE 6199 has five user selectable country settings, which determine the channel count and the useable modulation mode. The factory default setting and the starting country setting (after connecting to Power) can vary depending on the sales country of this radio. -
Page 9: Selecting The Operating Channel
40 channels AM and FM 4W In Poland, it is allowed to use the European system E and the former established Poland channel system Po as well. The Poland channels are all 5 kHz shifted below the international channels. Please note that it is not allowed to use the Po setting in other countries. 40 channels + 40 UK channels FM only 4W If this mode is active, the A/F button has an alternate function and toggles between the two channel lists. -
Page 10: Am / Fm Mode Switch
Now the loudspeaker stays off when on a free channel but it switches back on when receiving even very weak signals. The muting adjustment is particularly important during channel scanning. In this mode the point to which the set is adjusted decides whether scanning is stopped at the signal or not. -
Page 11: Automatic Squelch Asq
Just press the button consecutively. Scan mode Your AE 6199 has an automatic channel scan, which can be used to observe all channels consecutively. First choose the mode (AM or FM). Adjust the muting control to the point at which the receiver should open or turn the Squelch knob to the leftmost position to switch on the automatic squelch ASQ. -
Page 12: External Sockets
3.5 mm jack plug and ensure that none of the loudspeaker connections are attached to the vehicle chassis. Microphone socket Your AE 6199 has a 6 pin microphone socket on the front side. The socket has a special wiring at PIN 4 which may be different from simple replacement microphones. -
Page 13: Disposal And Recycling
In case this does not solve the problem, please ask your dealer or consult our service hints in the Internet. If you should return the radio for repair, do not forget to describe the problem as exactly as possible. European 2 years warranty The distributor, dealer or retail shop where you bought the radio warrants to the original retail purchaser of this product that should this product or any part of it, under normal use and conditions, be proven defective in material or workmanship... -
Page 14: Technical Details
Technical Details Microphone socket wiring Pin 1 Mic audio Pin 2 PTT-RX (on ground for receiving) Pin 3 PTT-TX (on ground for transmit) Pin 4 up and down keys Pin 5 Ground Pin 6 + voltage for mic-power if needed Transmitter Frequency accuracy better than +/- 300 Hz... -
Page 15: Declaration Of Conformity
Point of contact/ Ansprechpartner: Dipl.-Ing. Norbert Dau Place and date of issue: Lütjensee, 12.12.2012 (Signature) Dipl.-Ing. Norbert Dau Alan Electronics GmbH Diese Konformitätserklärung und der Albrecht Gerätepass werden regelmäßig aktualisiert und sind unter www.service.alan-electronics.de in der jeweils gültigen neuesten Version abrufbar. -
Page 16: Albrecht Radio Passport
Albrecht Radio Passport For your AE 6199 the following programming and Operation regulations apply in countries applying R&TTE directive: 80/40 40/40 40 FM Remarks No radios with country switch allowed. Please ask Austria your dealer for a special Austria version of the radio.
