SERVSWITCH™ WIZARD EXTENDER CHASSIS AND BLANK CHASSIS PANELS
To mount a module in an Extender Chassis, take these steps, referring to the
figure below:
1. Slide the module into the chassis with the protruding tip of its endplate
pointing upwards.
2. Screw the M3 pan-head screw included with the module through the hole at
the top of the module's endplate and the matching hole in the front flange of
the chassis in order to secure the module to the chassis.
Attach a Single Blank Panel to the vhassis with the panel's included screw in the
same way you'd mount a module. Attach a Quad Blank Panel to the chassis with
one of the panel's included screws in the panel's upper left corner and the other
in the upper right corner.
To mount the chassis in your rack, hold its side flanges against the vertical rails
of your rack, then use four of your own screws, bolts, cage nuts, etc., to secure the
flanges to the rails.
Modules and Single Panels come with one
M3 pan-head screw for chassis attachment;
Quad Panels come with two such screws

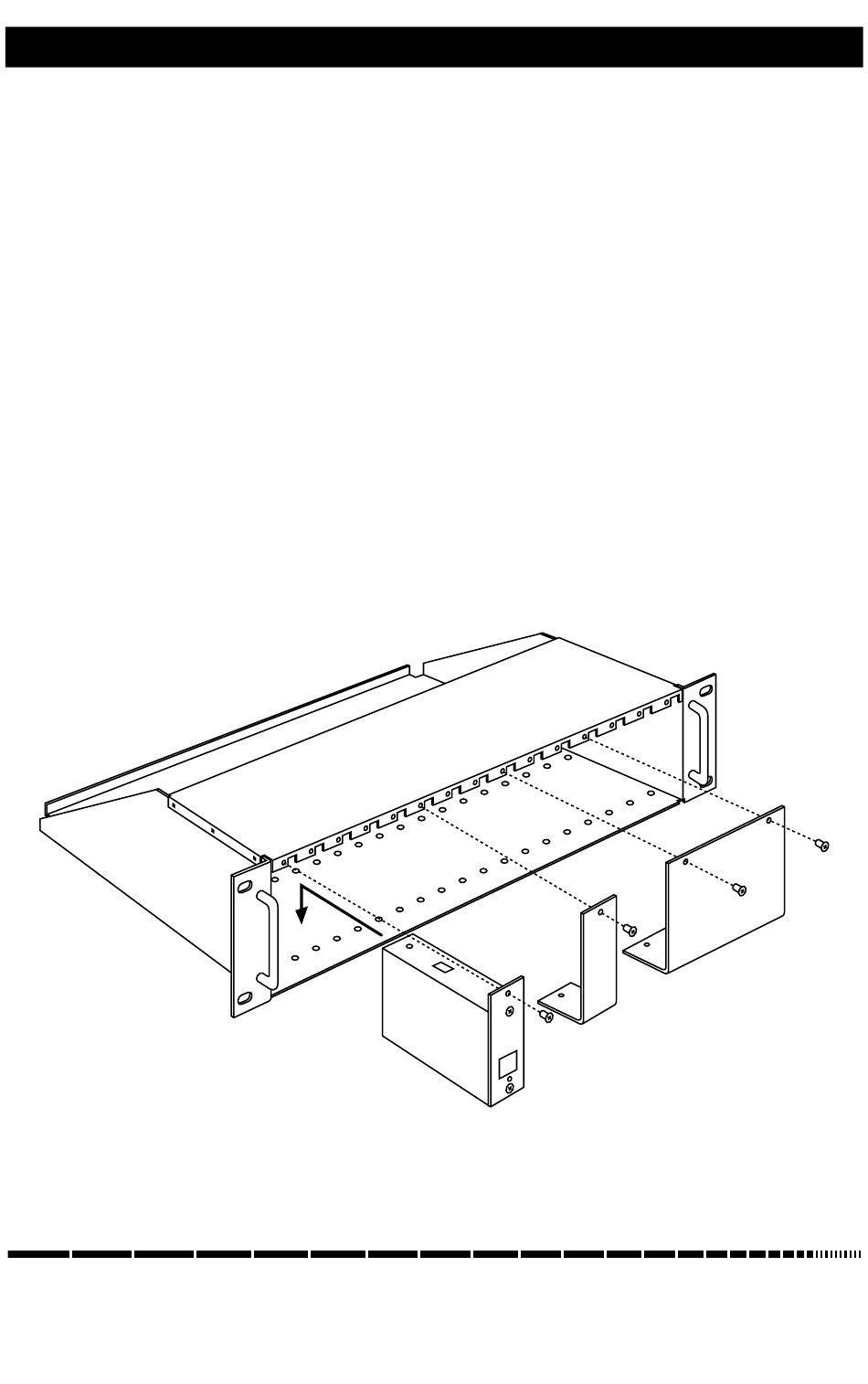

Mounting a module and panels in an Extender Chassis.

© Copyright 2002. Black Box Corporation. All rights reserved.
1000 Park Drive
ServSwitch Wizard
Extender Chassis
• Lawrence, PA 15055-1018
(ACU5000A)
• 724-746-5500
Single Panel
(ACU5003)
Extender
module
•
Quad Panel
(ACU5004)
