Blackbox IC568A Installation Manual

Specifications
Specifications
Environment S-Video equipment
Devices DVD players, VCR, satellite receivers, MPEG players, laptops,
notebooks, monitors, LCD projectors, CCD cameras, video switchers,
sequencers, digital video servers, video multiplexers, S-Video splitters,
S-Video converters and other S-Video equipment.
Transmission Transparent to the user.
S-Video
Bandwidth DC to 6 MHz
Impedance 75 ohms
Maximum Input 1.1Vp-p
Insertion Loss Less than 2 dB per pair over the
frequency range from DC to 6
MHz
Return Loss Better than 15 dB over the
frequency range
Common Mode Rejection Greater than 40 dB over the
frequency range
Max. Distance – Cat 5 1,000 ft. (305m)
UTP

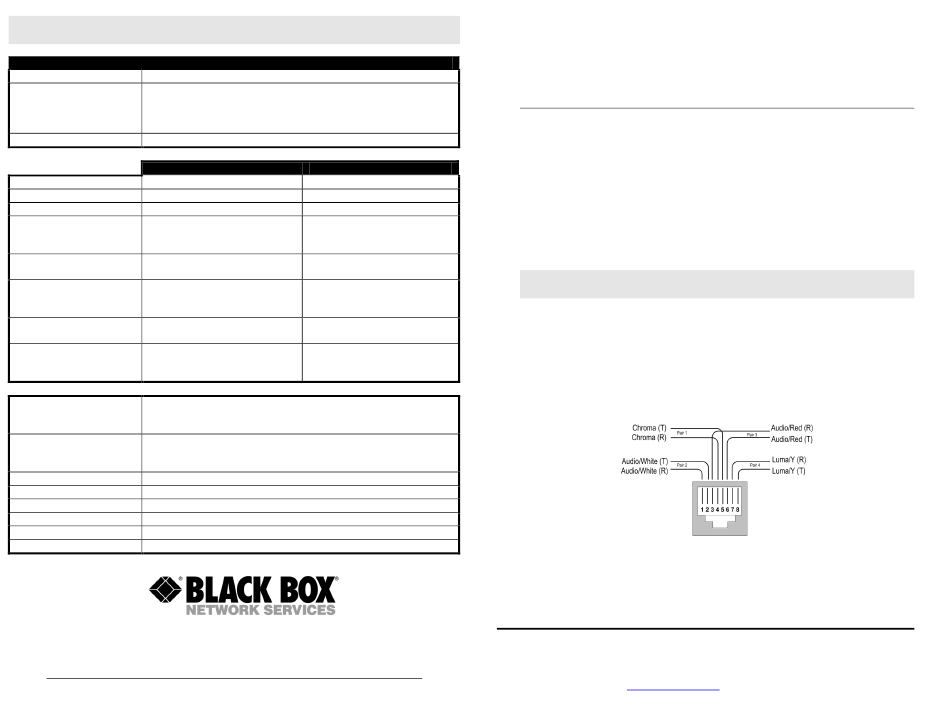

Pin Configuration (RJ45) S-Video Luma: pins 7[R] &8 [T]
EIA 568 A or B S-Video Chroma: pins 4[R] & 5 [T]
Reverse Polarity Sensitive
Cable – UTP 24AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz
Connectors One (1) 4-pin Mini DIN jack for S-Video
Two (2) RCA audio jacks for stereo audio
One (1) RJ45 for Cat5
Temperature Operating: 0º to 55º C. Storage:-20º to 85º C. Humidity: up to 95%
Enclosure Fire retardant plastic
Dimensions 2.40" x 2.25" x 1.00" (6.1 cm x 5.7 cm x 2.54 cm)
Weight 2.1 oz (60 gms)
Warranty Lifetime
Order Information IC568A
© Copyright 2006. Black Box Corporation. All rights reserved
94-000xxx-A
Audio
20 Hz to 20 KHz
600 ohms min.
1.1Vp-p
Less than 2 dB per pair over the
frequency range.
N/A
Greater than 60 dB @ 1 KHz
Greater than 40 dB over the
frequency and distance range
3,250 ft (990m)
Audio 1: pins 1[R] & 2 [T]
Audio 2: pins 3 [R] & 6 [T]
S-Video/Hi-Fi Balun, Female
SE-000xxx-A
S-Video/Hi-Fi Balun (IC568A)
Quick Installation Guide
Overview
The S-Video/Hi-Fi Balun allows one S-Video signal and one hi-fidelity stereo audio
channel to be transmitted via unshielded twisted pair (UTP) cable in a point-to-point
connection for more versatile cabling.
eliminates costly and bulky S-Video and audio cable, allowing S-Video equipment to
be connected or moved to any convenient modular outlet. The S-Video/Hi-Fi Balun
also works in conjunction with Black Box's Audio/Video Distribution Hub (IC445A)
to allow S-Video programming to be distributed via UTP.
classroom video distribution, commercial and home audio/video systems.
Installation
One (1) pair of baluns are needed to complete one composite stereo audio-video
connection via Cat5 twisted pair. To install the baluns, perform the following steps:
1. Identify the pin configuration of the baluns. Two (2) twisted pairs are required
for S-Video and two (2) twisted pairs are required for stereo analog audio. The
pin configuration follows the EIA/TIA 568A/B standard. The Stereo Hi-Fi
Video Balun is reverse polarity sensitive. Please ensure that wiring is straight-
through (Ring to Ring, Tip to Tip).
2. Plug one (1) balun into the S-Video/stereo audio output of the video source
according to the color code of the RCA cable leads.
3. Plug the second balun into the S-Video/Hi-Fi Balun input of the video screen or
receiver at the remote end.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-
0746 Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA
15055-1018. Web site: www.blackbox.com
October 2006
Used in pairs, the S-Video/Hi-Fi Balun
Applications include;
