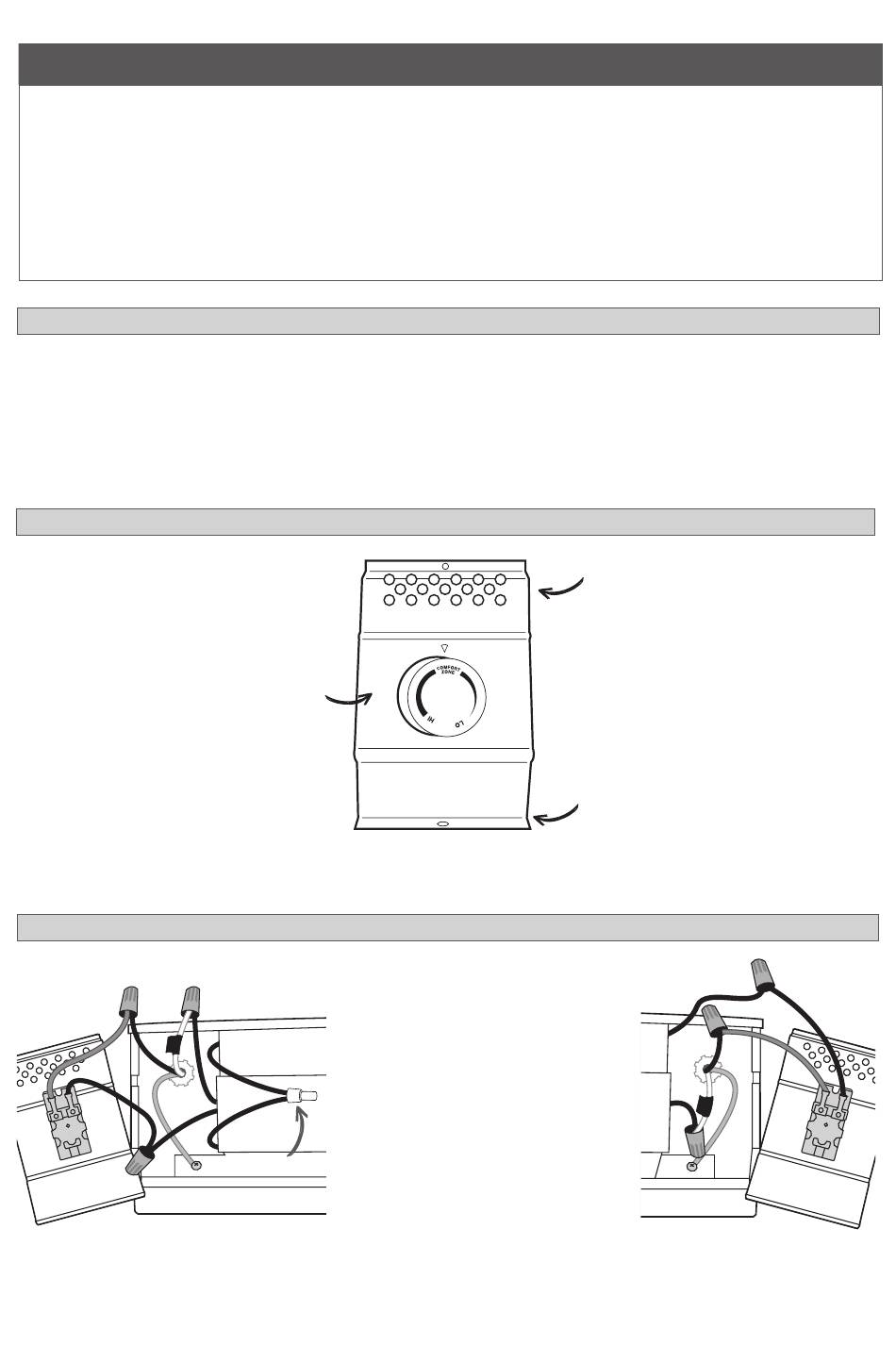

INSTALLATION INSTRUCTIONS

1. All electrical work and materials
must comply with the National Elec-
tric Code (NEC), the Occupational
Safety and Health Act (OSHA), and
all state and local codes.
2. Use copper conductors only.
3. Use only on series F baseboard
heaters.
• Verify power has been turned off before starting any work!
• Follow the instructions in your Baseboard Owner's Guide (included with your heater) until
prompted to make thermostat connections.
• IMPORTANT: If wiring on the left side, cut ONLY ONE factory connection and ONLY on the
side you will be wiring! If your baseboard is a 120 volt model, cut ONLY the factory connec-
tion that has one black and one white wire!
control knob
SINGLE POLE (2-WIRE) BTF1 - 240/208 or 208 VOLT
A
B
240/208 Volt LEFT SIDE
Proceed to OPERATING INSTRUCTIONS.
TIPS BEFORE YOU BEGIN
PARTS OF YOUR THERMOSTAT
A.
Connect one supply wire to
C the red thermostat wire.
B.
Connect the black
thermostat wire to one of the
heater wires.
C.
Connect the remaining
supply wire to the remaining
heater wire.
DO NOT
Wrap supply (white) wire with
CUT!
black tape to identify it as hot!
Tuck all the wires back into
the individual wiring compart-
ments, and make sure the
connections are tight. Attach
with small screw at bottom.
3
4. Turn off power to heater at main
disconnect panel.
5. Connect grounding lead to grounding
screw provided on the heater.
6. Use wire connectors (not included)
for all connections.
top
bottom
B
A
C
240/208 Volt RIGHT SIDE
