Cadet RMT2 Installation Instructions

Benefits You Can Depend On
• Double-pole thermostat kit for optional, built-
in control of your Cadet Register heater
• Offers a 3° to 5° comfort range
• Easy-to-use adjustable dial
• Use with Cadet 120-, 208- or 240-volt model
Register heaters
• 4-wire connection for easy installation and
positive off setting
• 25 Amp
• Your RMT2 built-in thermostat is guaranteed
with a 1 year limited warranty
TOOLS REQUIRED:
• Phillips Screwdriver
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the following:
1. Read all instructions before installing or using
this thermostat.
2. High temperatures may be generated under
certain abnormal conditions. Do not partially or
fully cover or obstruct the front of this heater.
3. Do not operate any heater after it malfunctions.
Disconnect power at service panel and have
heater inspected by a qualified electrician before
reusing.
4. To disconnect heater, turn controls to off, and
turn off power to heater circuit at main disconnect
panel.
cadetheat.com
• Needle Nose Pliers
IMPORTANT
Wiring Diagram
YELLOW
UPPER ELEMENT
YELLOW
LOWER ELEMENT BLUE
MANUAL RESET
HIGH TEMP CUTOFF
SAVE THESE INSTRUCTIONS
Tel: 855.CADET.US
RMT2 Built-In Thermostat Kit
Installation Instructions
http://cadetheat.com/products/wall-heaters/register-plus

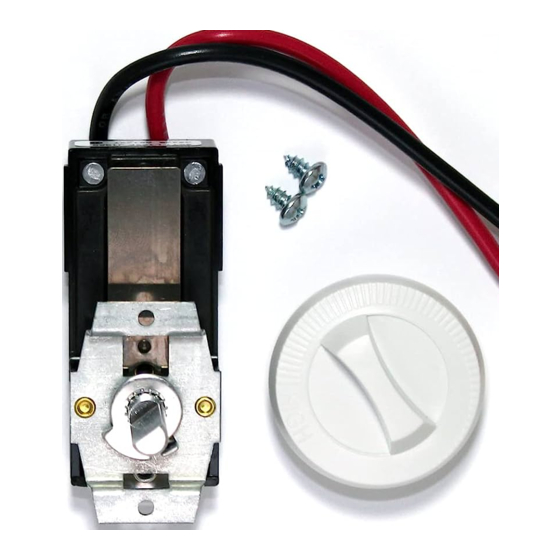

KIT INCLUDES:
• Mounting Bracket/
Thermostat Assembly
5. Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may
cause an electric shock or fire, or damage the
heater.
6. To prevent a possible fire, do not block air
intakes or exhaust in any manner.
7. A heater has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline,
paint, or flammable vapors or liquids are used or
stored.
8. Do not use outdoors.
RED RED
Double
pole built-in
WALL
MOTOR or wall
THERMOSTAT
(not provided) thermostat
L1
PO Box 1675 Vancouver, WA
RMT2
Bracket with
Thermostat
Assembly
• Knob
• #8 Screw (⅜")
• Thermostat Face Plate
L2
98668-1675
Page 1
