List of Tools
Tools required for assembly and installation of X-stream slide
1. Hammer
2. 3/8" drive rachet
3. 3/8" x 6" rachet extension
4. 1/2" socket
5. 9/16" socket
6. 9/16" box end rachet wrench
7. Drill with 3/8" masonry bit
8. Tape measure
9. PVC Pipe Cutter
Schedule One
Required Tools

ASSEMBLY AND INSTALLATION INSTRUCTIONS

Step One
• Install foot receiver on 6" PVC pipe Step Support Assembly, using 3/8"x 2"
bolts at two locations, and 2-1/2" bolt for the location directly underneath the
Step Support Assembly Column. Push bolt thru 3/8" lock washer, thru 3/8"
flat washer, thru pre -drilled holes in PVC and Foot Receiver, thru 3/8" flat
washer, and thru 3/8" nylon locking nut. This foot receiver contains only
three holes for complete attachment. (Fig. 4) Use Hardware Set #1. Tighten
all connections.

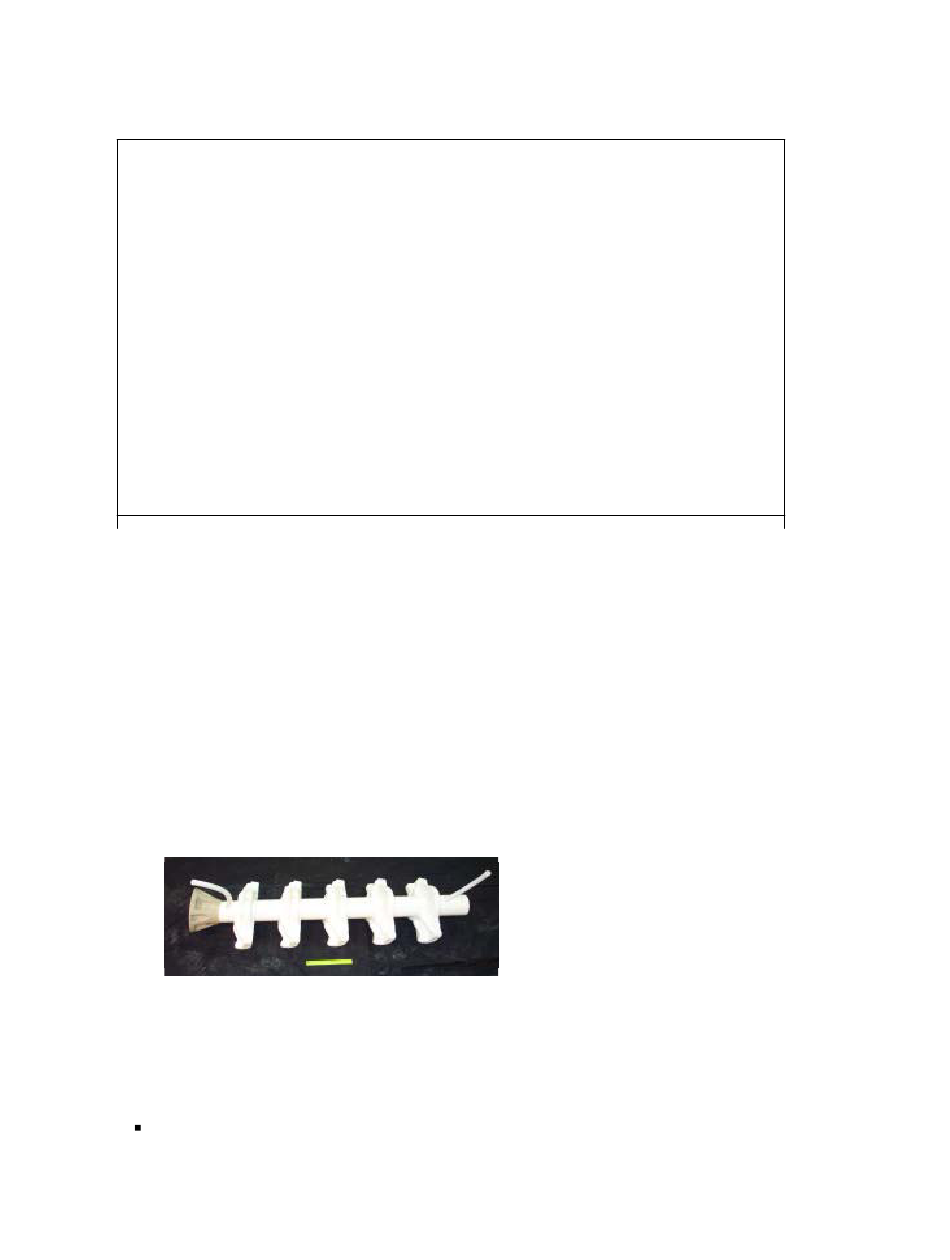

Fig. 1 (Note: The short item at the bottom is 12" rule)
Connect Step Support Assembly to Top Section (Fig. 2) This assembly may
be done with Top Section on ground, on its side. Insert 6" PVC Step Support
