Inter-fab X-stream Assembly And Instruction Manual page 11

Step Four: Erection of Assembled Slide
• Install loosely, legs to flumes as required: long leg to upper flume, short
leg to lower flume, using 3/8" X 2" bolts from Hardware Set #3. Push bolt
thru lock washer, thru flat washer, thru pre -drilled hole provided in PVC
pipe, into pre -inserted nuts in flume leg receiver. Do not tighten completely
at this time. (Fig. 7) Use Hardware Set #3.
Turn slide assembly upright, resting it momentarily on the two legs.
Now connect the Ladder Step Support Sub Assembly to the Upper
Flume by bolting to the Top Section with hardware in Hardware Set #2,
ensuring a flexible gasket has been installed by Mfr. in recess provided in the
flange for that purpose. Push 3/8" x 1-3/4" bolt thru lock washer, thru flat
washer, thru pre -drilled hole provided in Upper Flume, into pre -inserted nut
in Top Section.
top surface at the connection (see IMPORTANT NOTE in step three.)
When long and short legs are completely plumb (ensure each leg is vertical
by checking each leg at two points 90 deg. from each other), tighten all
connections. Note: Slide Step Support System is designed for 16 deg. slope
which must be installed correctly for proper functioning of slide. (Fig. 9)

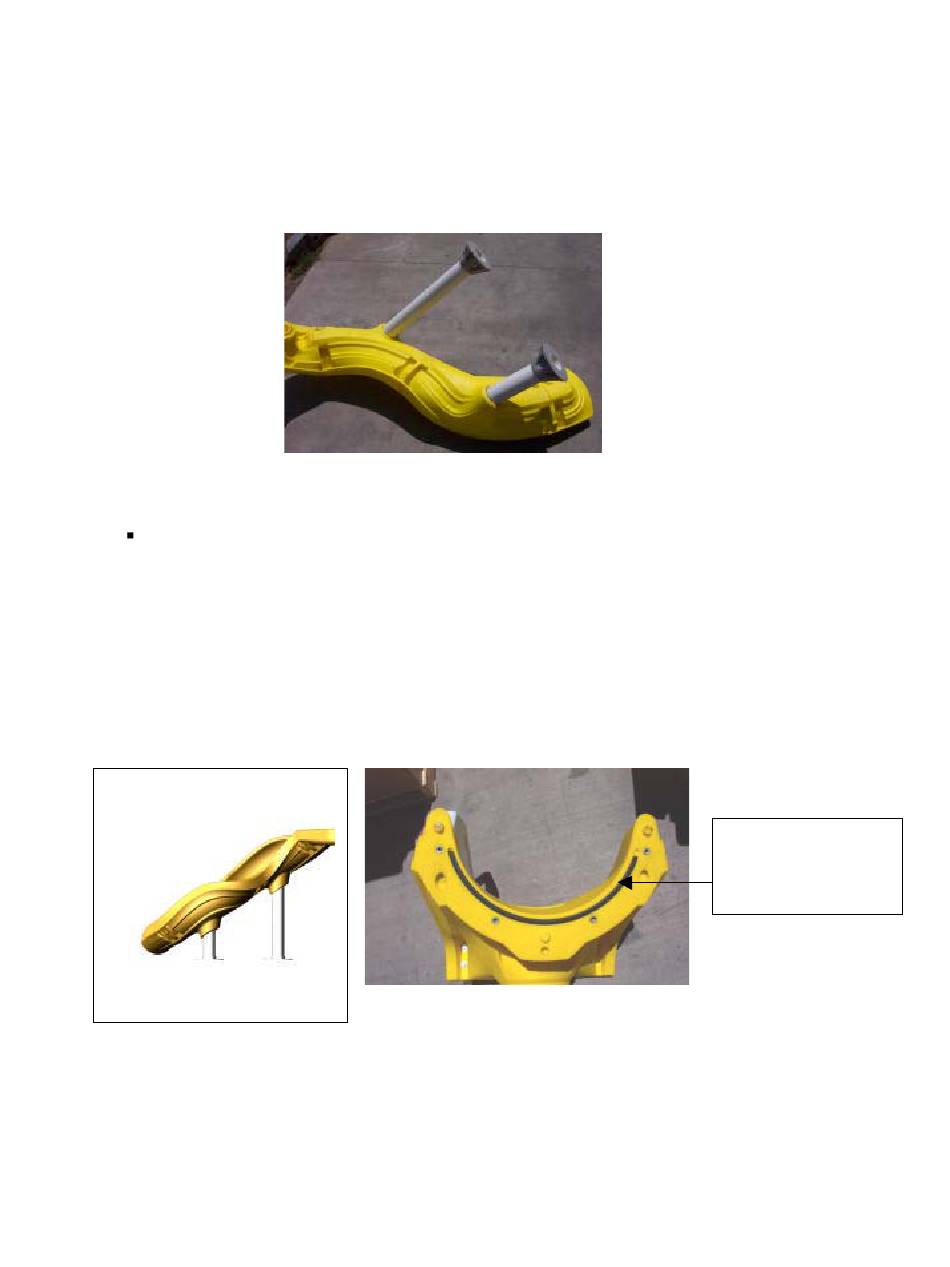

Fig. 7
(Fig. 8). Tighten all connections when there is a smooth
Fig. 8
- 11 - 11
Flexible gasket
installed by Mfr.
between flanges.
