Time Tested • Time Proven
851727-10
ROADMASTER, Inc. • 6110 N.E. 127th Ave. • Vancouver, WA 98682 • 800-669-9690 • Fax 360-735-9300 • roadmasterinc.com
Read all instructions before install-
ing the kit components. Failure to un-
derstand how to properly install the kit
could result in property damage, per-
sonal injury or even death.
Before you begin the installation...
• This kit uses four-prong connectors to conduct lighting
signals from the motorhome to the towed vehicle. If you
would prefer electrical sockets at both vehicles, optional kits
with sockets, mounting brackets and straight or Flexo-Coil
electrical cords are available from ROADMASTER.

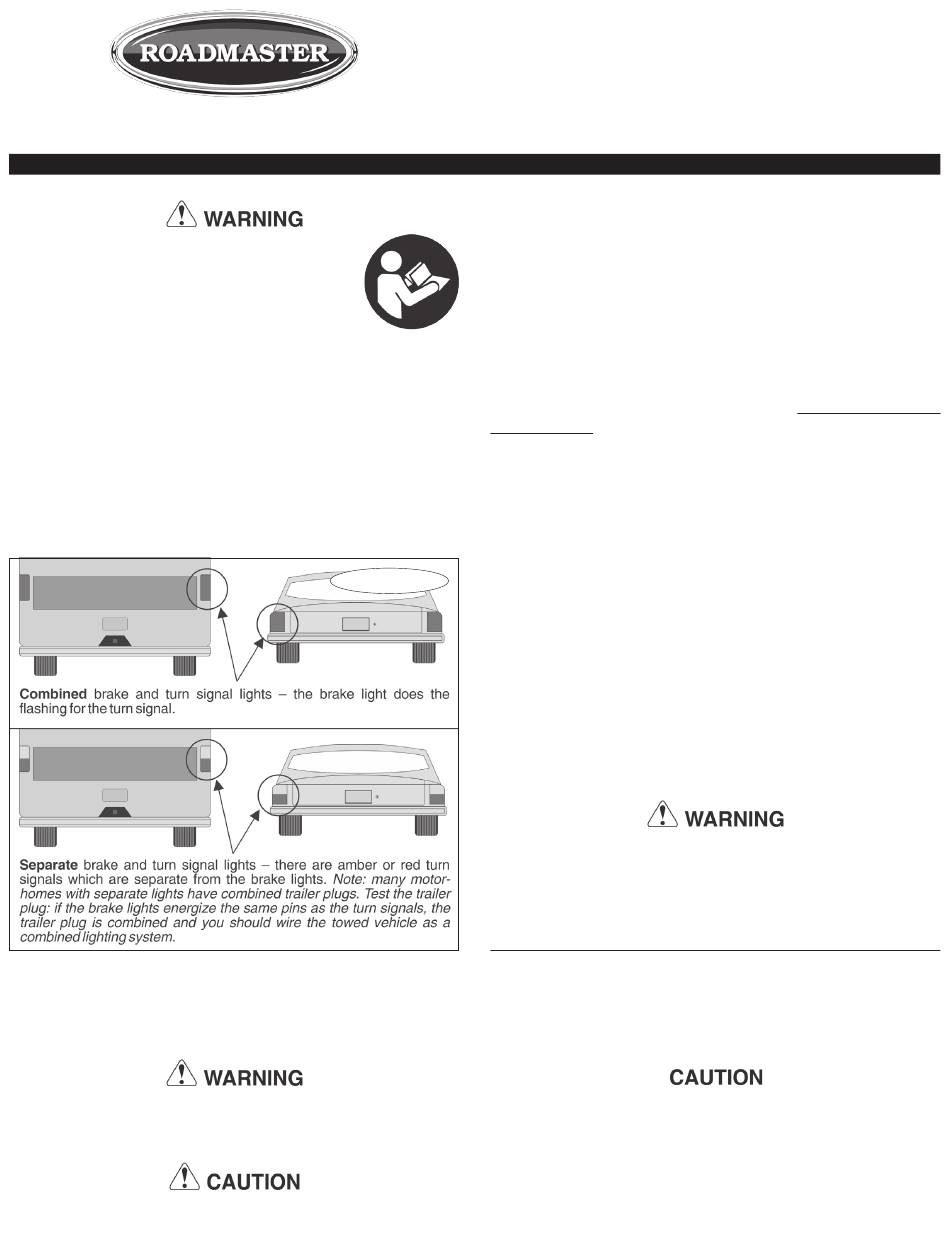

• If the motorhome has separate brake and turn signals
(Figure 1), an optional Brite-Lite
required.
These instructions contain information that is very important to know and understand. This information is provided for
safety and to prevent equipment problems. To help recognize this information, observe the following symbols:
WARNING indicates a potentially hazardous situ-
ation which, if not avoided, could result in property
damage, serious personal injury or even death.
CAUTION indicates a potentially hazardous situa-
tion which, if not avoided, may result in property dam-
age, or minor or moderate personal injury.
11.17
3-to-2 wiring converter is
Figure 1
IMPORTANT NOTICE!
Safety Definitions
Bulb and socket kit
Installation Instructions
All specifications are subject to change without notice.
Installation instructions for these accessories are included
with the kits.
Note: if the motorhome has a separate lighting system,
a 3-to-2 converter must be installed in order to use this
kit. A 3-to-2 converter converts a separate system to a
combined system.
Many late-model motorhomes come with converters
already installed — test for this before installation: if the
motorhome's trailer plug energizes the same pins for both
brake lights and turn signals, then a 3-to-2 converter is
already installed and the motorhome should be treated
as combined.
If a converter is needed, install ROADMASTER's Brite-
Lite
, part number 732.
• 1" hole saw or rotary cutting tool
• wire stripper • wire crimper • test light
Installation Instructions
1. You will attach one end of the wiring harness to the
taillight assemblies, then route the other end of the harness
to the front of the vehicle.
Before you attach the wiring harness, plan a route to
the front of the vehicle. Choose a route that avoids the pos-
sibility of fraying or melting the wiring against moving parts,
sharp edges, the fuel lines or hot components. (If the OEM
wiring harness is accessible, consider routing the harness
alongside it.)
Plan a route that will avoid moving parts, sharp edges,
the fuel lines or hot components such as the engine or
exhaust system.
Wiring exposed by moving parts, sharp edges or hot
CAUTION used without the safety alert symbol in-
dicates a potentially hazardous situation which, if not
avoided, may result in property damage.
Refers to important information and is placed in italic
type. It is recommended that you take special notice of
these items.
part number 155

Required Tools

• drill
continued on next page
NOTE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 155 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Roadmaster 155

  • Page 1 All specifications are subject to change without notice. 851727-10 11.17 ROADMASTER, Inc. • 6110 N.E. 127th Ave. • Vancouver, WA 98682 • 800-669-9690 • Fax 360-735-9300 • roadmasterinc.com Installation instructions for these accessories are included with the kits. Read all instructions before install- Note: if the motorhome has a separate lighting system, ing the kit components.
  • Page 2 7. Use the butt connectors to attach the four-wire electrical flat. Allow enough slack so that it can easily be connected harness to the sockets. Figure 2 is ROADMASTER's recom- and disconnected from the matching male connector on the mended wiring schematic.
  • Page 3 continued from preceding page away from pre-existing components, close to the center. Note: attach the connector close to the center. If the harness is attached too far to either side, it may be pulled away when the motorhome turns. 14. Attach the connector with one of the included wire ties. Allow enough slack so that it can be easily connected and disconnected from the matching male connector on the six- foot power cord.
