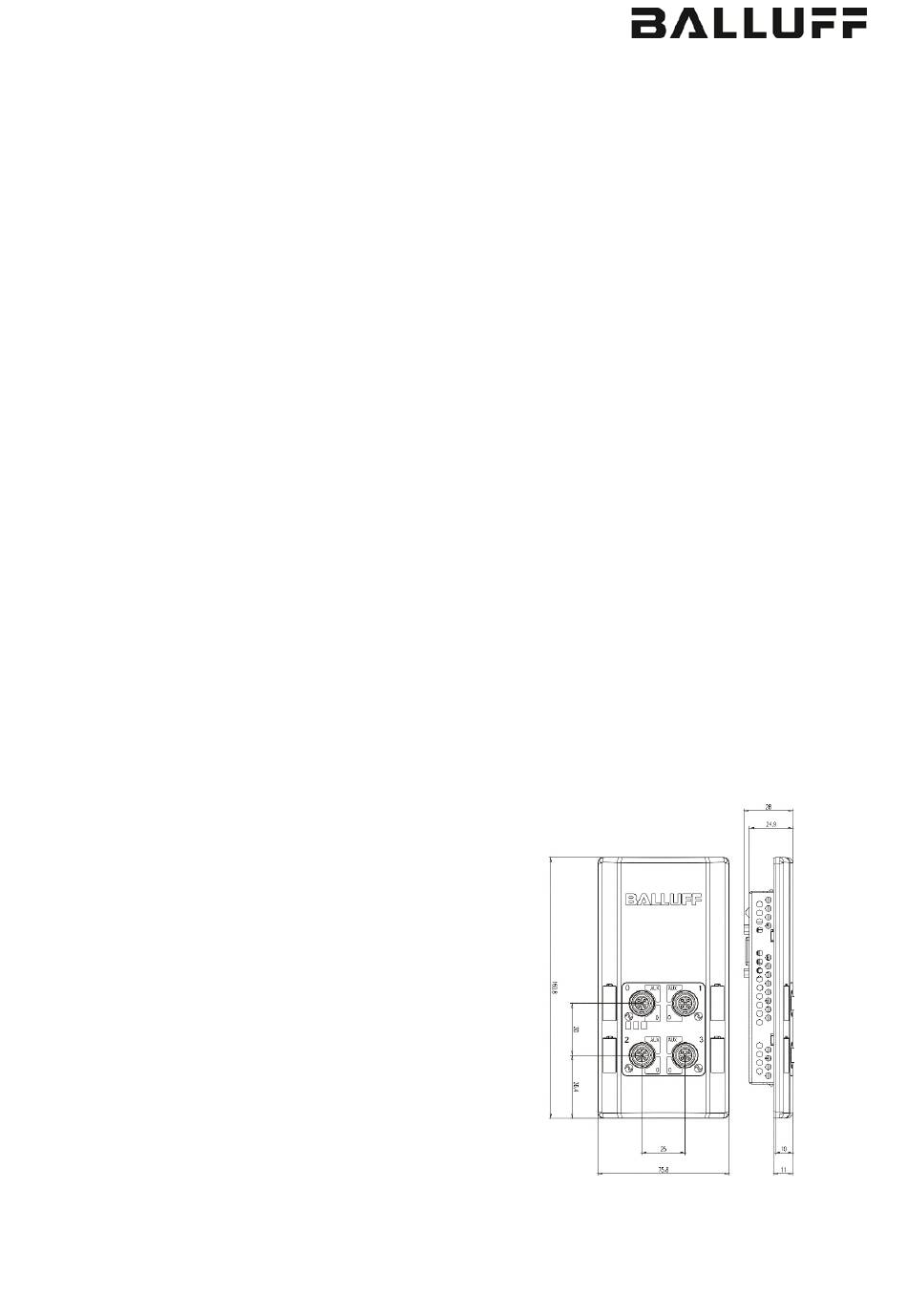

- Page 1 BNI PBS-504-001-K008 BNI PBS-504-002-K008 Profibus IO-Link Panelmaster User´s Guide...
-
Page 2: Table Of Contents
4.4. Conneting sensors / actuators IO-Link port Technical Data 5.1. Dimensions Front side 5.2. Dimensions Cutout Backside 5.3. Mechanical data Electrical Data Operating conditions 5.4. Function indicators LED Module status I/O- und IO-Link ports Appendix 6.1. Included material 6.2. Ordercode 6.3. Order information www.balluff.com... -
Page 3: Notes For The User
Balluff Network Interface Profibus, BNI PBS-504-00x-K008 Notes for the user 1.1. Structure of the The guide is organized so that the sections build on one another. guide Section 2: Basic safety information. Section 3: Getting started. ……. 1.2. Typografical The following typographical conventions are used in this Guide. -
Page 4: Safety
Attention! voltage Disconnect all power before servicing equipment. Note In the interest of product improvement, the Balluff GmbH reserves the right to change the specifications of the product and the contents of this manual at any time without notice. www.balluff.com... -
Page 5: Basic Knowledge
Balluff Network Interface Profibus, BNI PBS-504-00x-K008 Basic Knowledge 3.1. Product Balluff Network Interface BNI PBS-...: • description Used for connecting sensors/actuators to a Profibus-DP network. • Sensors/actuators can be connected through 4 standard I/O ports. Connection options: A total of 8 ports are available which can be freely configured. If for example 4 IO-Link ports are configured, 4 standard I/O ports can be used. -
Page 6: Communication Mode
Startup parameter setting possible using communication, then • modes (SIO- binary switching signal mode) 3.5. Replacing The BNI PBS-... modules are upward compatible. A defective module can be modules replaced with a module which has a greater or at least the same functionality. www.balluff.com... -
Page 7: Getting Started
Balluff Network Interface Profibus, BNI PBS-504-00x-K008 Getting started 4.1. Connection overview BNI PBS-504-00x.. Input / Output / IO-Link port 1 LED: Input / Output / IO-Link port Input / Output / IO-Link port 3 IO-Link logo Input / Output / IO-Link port 2... -
Page 8: Mechanical Connection
The module BNI PBS-504… is attached using 4 M5x10. connection The thread insert for mounting the module is 8mm. Mounting holes with 8mm thread insert Ground connection Power supply interface, terminal plugs Address switches Profibus interface Sub D 9 pole Grommet www.balluff.com... -
Page 9: Electrical Connection
Balluff Network Interface Profibus, BNI PBS-504-00x-K008 Getting started 4.3. Electrical connection Power supply The power supply is connected to terminal plugs, spring type on the back side of the unit. Function Description Bus communication / Sensor supply Bus communication / Sensor supply +24 V DC, max. -
Page 10: Profibus Interface
The Profibus address is et directly on the BNI PBS-504… using two BCD switches Permissible address range: 0 … 99. Each Profibus node must have a unique address assigned to it. Any change to the address does not become effective until power is reset on the modules. www.balluff.com... -
Page 11: Conneting Sensors / Actuators
Balluff Network Interface Profibus, BNI PBS-504-00x-K008 Getting started 4.4. Conneting Four I/O ports are provided for connecting the actuators / sensors for Standard I/O and/or IO-Link sensors / actuators IO-Link port M12, A-coded,female Function +24 V DC, 1,4 A AUX Power, 24 V IO-Link / Eingang /Ausgang (max.1.4 A) -
Page 12: Technical Data
Terminal plugs, spring type (on the backside) AUX power supply Terminal plugs, spring type (on the backside) I/O Ports M12, A coded (4 x female ) Enclosure rating Front side: IP54 (only when installed, plugged-in and threaded-in) Back side: IP20 Weight ca.: 355 g www.balluff.com... -
Page 13: Electrical Data
Balluff Network Interface Profibus, BNI PBS-504-00x-K008 Technical Data Electrical Operating voltage 18 ... 30 V DC Data Operation voltage AUXPower 18 ... 30 V DC, 12A Ripple < 1 % ≤ 200 mA Current draw without load Operating Ambient temperature -5 C …... -
Page 14: Function Indicators Led
Jedem M12-Port (IO-Link, E/A-Schnittstelle) sind LEDs zugeordnet um die ports Betriebszustände anzuzeigen. Anzeige LED 4 (PIN 4) Ausgang = 0 Eingang = 0 Gelb Ausgang = 1 Eingang = 1 Grün IO-Link: Kommunikation Grün IO-Link: keine Kommunikation blinkend I Ausgang > Imax Eingang: KS* IO-Link: Kommunikationfehler www.balluff.com... -
Page 15: Appendix
Balluff Network Interface Profibus, BNI PBS-504-00x-K008 Appendix 6.1. Included material The BNI PBS … consists of the following components: • IO-block • 2 blind plugs M12 • 20 labels • 1 grommet 6.2. Ordercode BNI PBS-504-00x-K008 Balluff Network Interface Profibus... - Page 16 Balluff GmbH Schurwaldstrasse 9 73765 Neuhausen a.d.F. Germany Tel. +49 7158 173-0 Fax +49 7158 5010 balluff@balluff.de...
