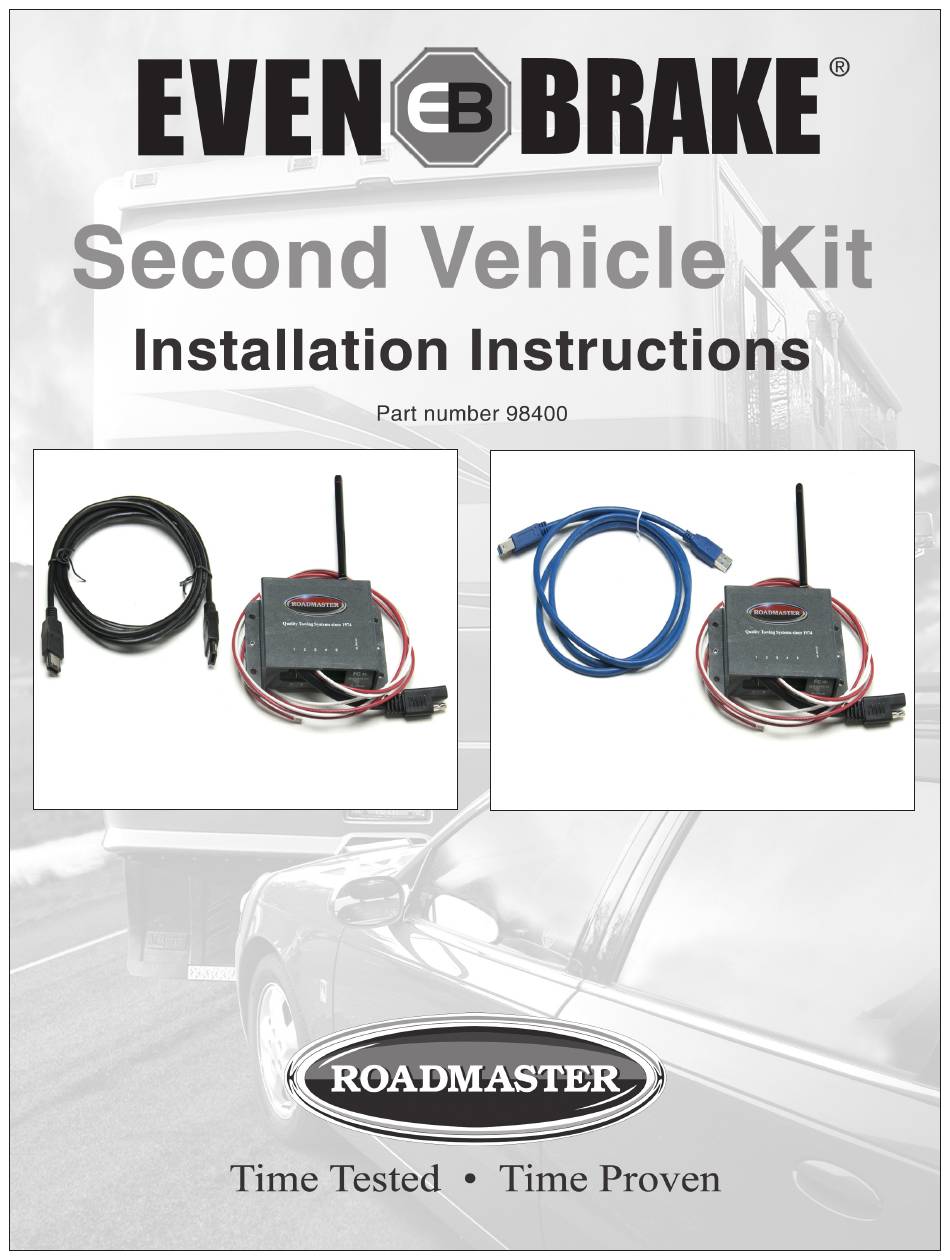

cable not
included
Even Brakes with a
black cable need second vehicle kit 98400
Check the Even Brake serial number before continuing.
This kit is compatible ONLY with Even Brake systems with serial numbers of 27,496 and below. Check the
serial number on the bottom of the Even Brake unit before proceeding.
ROADMASTER, Inc. • 6110 NE 127th Ave. • Vancouver, WA 98682 • 800-669-9690 • Fax 360-735-9300 • roadmasterinc.com
© 2006-2018 ROADMASTER, Inc. All rights reserved.
cable not
included
Even Brakes with a
blue cable need second vehicle kit 98450
CAUTION
853300-14
11/18
Advertisement
Related Manuals for Roadmaster Even Brake 98400

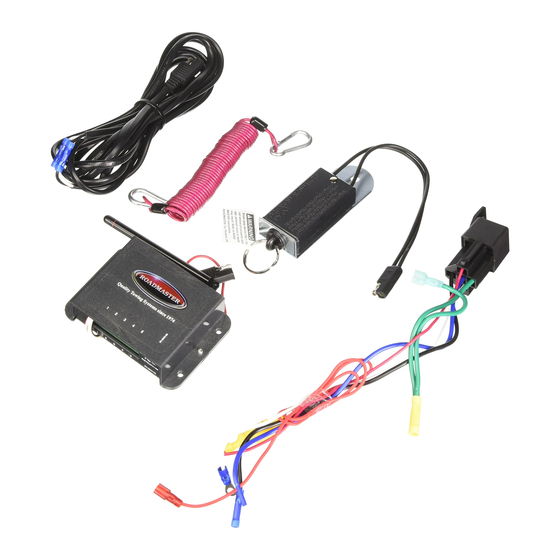

Summary of Contents for Roadmaster Even Brake 98400
- Page 1 This kit is compatible ONLY with Even Brake systems with serial numbers of 27,496 and below. Check the serial number on the bottom of the Even Brake unit before proceeding. ROADMASTER, Inc. • 6110 NE 127th Ave. • Vancouver, WA 98682 • 800-669-9690 • Fax 360-735-9300 • roadmasterinc.com © 2006-2018 ROADMASTER, Inc. All rights reserved.
-
Page 2: Statement Of Fcc Compliance
— refer to the vehicle owner’s manual or the dealership. ROADMASTER ex- pressly disallows any and all claims relating to tire IMPORTANT NOTICE! Safety Definitions These instructions contain information that is very important to know and understand. - Page 3 300115-22 ........ insulated female terminal, red All illustrations and specifications contained herein are based on the latest information available at the time of publication. ROADMASTER, Inc. reserves the right to make changes, at any time, without notice, in material, specifications and models, or to discontinue models.
- Page 4 If the socket is corroded or damaged, you can install ing. ROADMASTER’s optional 12-volt outlet kit (part number 2. Always check the ROADMASTER web site — road- 9332). When installed, this kit will provide constant power masterinc.com — for vehicle-specific information. Select to Even Brake.
-
Page 5: Installation Instructions
10. If you are a professional installer, return these instruc- continued from previous page Specific Info.’ Enter the vehicle’s make, model and year tions to the owner of the vehicle after the installation, for and scroll down the page. the owner’s future reference. 9. - Page 6 Figure 2 does the flashing for the light switch kits for many vehicles are available through turn signal; in a separate ROADMASTER; visit roadmasterinc.com for the most cur- system (Figure 2), there rent list. are amber or red turn Any one of the following tow lighting systems must also...

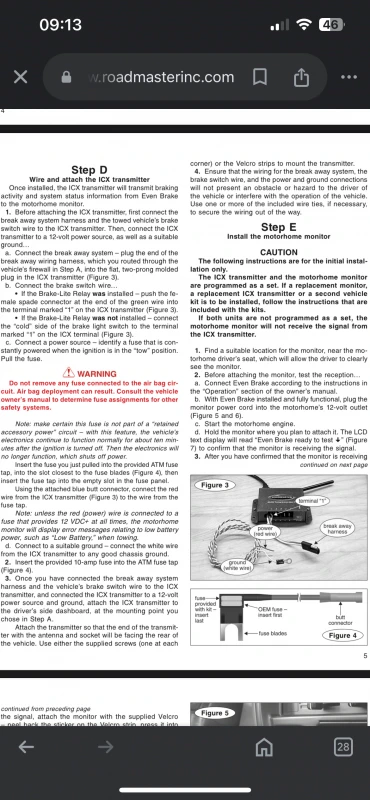

- Page 7 Step D the vehicle or interfere with the operation of the vehicle. Wire and attach the ICX transmitter Use one or more of the included wire ties, if necessary, 1. Before attaching the ICX transmitter, first connect the to secure the wiring out of the way. break away system harness and the towed vehicle’s brake switch wire to the ICX transmitter.
- Page 8 Note: the Even continued from preceding page read “Learning ICX #1 — Advance? OK .” Brake pedal clamp will not fit the brake pedals If you are programming the monitor for a second towed vehicle, press the button with the left-hand arrow (<) on of a small number of the monitor to scroll to the next message —...
- Page 9 Install six diodes Note: this wiring method can only be used if the brake Attaching the diodes farther away may cause the towed vehicle’s lights to work improperly and may lights illuminate with the engine off and the towed vehicle has separate lighting.
Need help?
Do you have a question about the Even Brake 98400 and is the answer not in the manual?
Questions and answers
I have a roadmaster even brake kit. The icx needs a wire on terminal #1 to work properly and I don't understand how to connect it!? Is it the signal from the RV or should I take the signal from the brake pedal of the towed vehicle? also if it is the signal from the towed vehicle, how does the even brake know when to press or even how much force it should apply? thank you for your response
To connect the wire on terminal #1 of the Roadmaster Even Brake 98400 kit:
- If the Brake-Lite Relay was installed: Connect the female spade connector at the end of the green wire to terminal #1 on the ICX transmitter.
- If the Brake-Lite Relay was not installed: Connect the “cold” side of the brake light switch to terminal #1 on the ICX transmitter.
You should take the signal from the brake pedal of the towed vehicle, not from the RV.
This answer is automatically generated
