Disassembly and folding

Transporting the wheelchair
Your Excel G-Logic is designed to be easily transported by car. Your wheelchair is foldable so the total width is
limited to an average width of 30-35 cm. Furthermore your wheelchair is equipped with swing-away and detachable
footrests. As well as the footrests, some other components are removable for transportation. The rear wheels can
be detached by using the quick-release system.
Folding and unfolding
To fold the wheelchair, please follow the following operations:
• Before you fold the wheelchair, remove the back and seat cushion;
• To completely fold your wheelchair the footrests need to be in the correct position as per photo 4;
• To fold the wheelchair you have to stand adjacent to it. Hold and pull the seat like shown on photo 5;
• The wheelchair can be made smaller and lighter for transportation purposes. To remove the rear wheels you
need to use the quick release axle system as per photo 6.

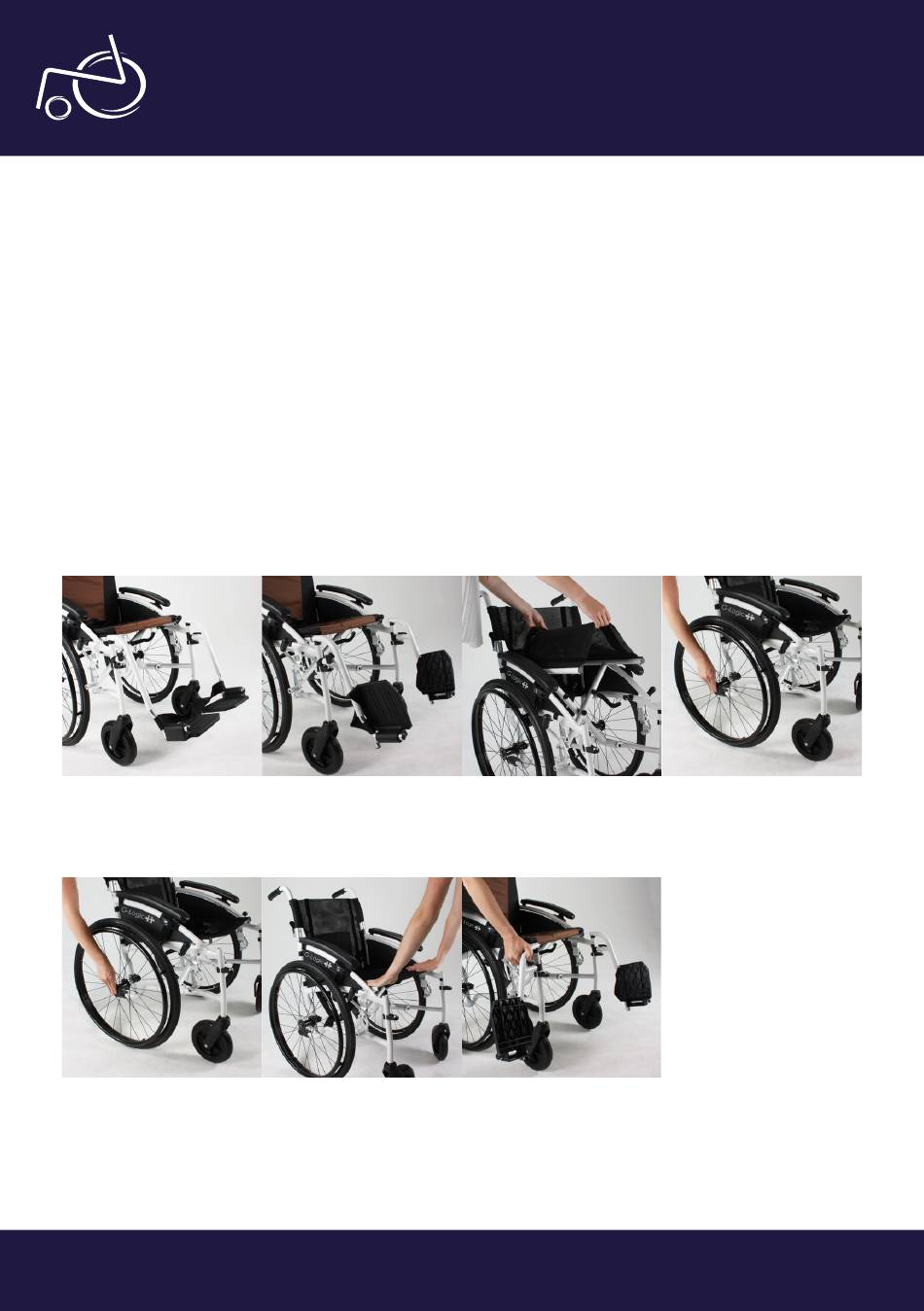

EXCEL G-LOGIC | PHOTO 3
To unfold your Excel G-Logic, please follow the above steps in reverse order.
EXCEL G-LOGIC | PHOTO 7
