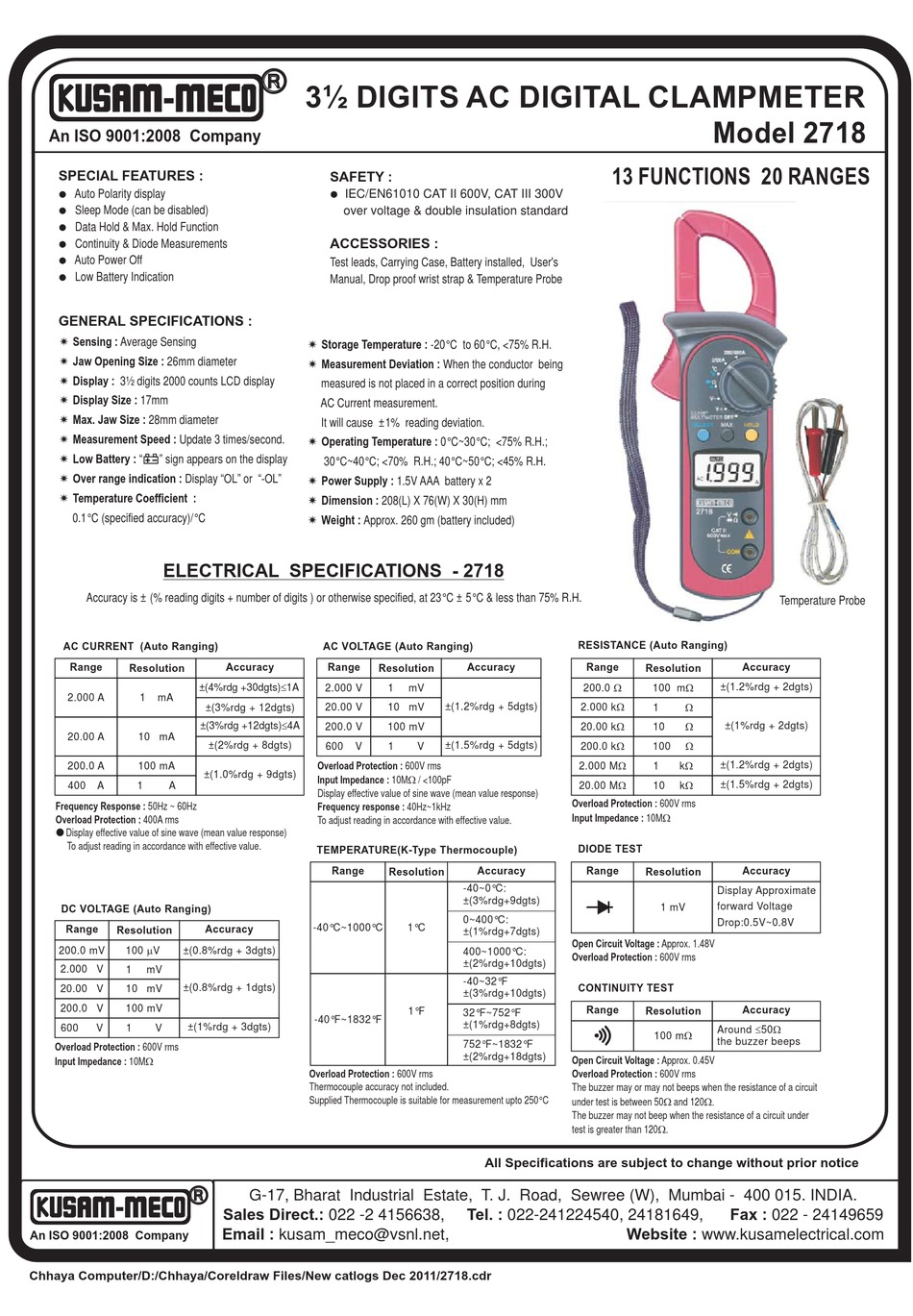

Kusam-meco 2718 Manual

An ISO 9001:2008 Company
SPECIAL FEATURES :
Auto Polarity display
Sleep Mode (can be disabled)
Data Hold & Max. Hold Function
Continuity & Diode Measurements
Auto Power Off
Low Battery Indication
GENERAL SPECIFICATIONS :
Sensing : Average Sensing
Jaw Opening Size : 26mm diameter
Display : 3½ digits 2000 counts LCD display
Display Size : 17mm
Max. Jaw Size : 28mm diameter
Measurement Speed : Update 3 times/second.
Low Battery : " " sign appears on the display
Over range indication : Display "OL" or "-OL"
Temperature Coefficient :
0.1°C (specified accuracy)/°C
ELECTRICAL SPECIFICATIONS - 2718
Accuracy is ± (% reading digits + number of digits ) or otherwise specified, at 23°C ± 5°C & less than 75% R.H.
AC CURRENT (Auto Ranging)
Range
Resolution
±(4%rdg +30dgts) 1A
2.000 A 1 mA
±(3%rdg +12dgts) 4A
20.00 A 10 mA
200.0 A 100 mA
400 A 1 A
Frequency Response : 50Hz ~ 60Hz
Overload Protection : 400A rms
Display effective value of sine wave (mean value response)
To adjust reading in accordance with effective value.
DC VOLTAGE (Auto Ranging)
Range
Resolution
200.0 mV 100 V ±(0.8%rdg + 3dgts)
2.000 V 1 mV
±(0.8%rdg + 1dgts)
20.00 V 10 mV
200.0 V 100 mV
±(1%rdg + 3dgts)
600 V 1 V
Overload Protection : 600V rms
Input Impedance : 10M
®
An ISO 9001:2008 Company
Chhaya Computer/D:/Chhaya/Coreldraw Files/New catlogs Dec 2011/2718.cdr
®
3½ DIGITS AC DIGITAL CLAMPMETER
SAFETY :
IEC/EN61010 CAT II 600V, CAT III 300V
over voltage & double insulation standard
ACCESSORIES :
Test leads, Carrying Case, Battery installed, User's
Manual, Drop proof wrist strap & Temperature Probe
Storage Temperature : -20°C to 60°C, <75% R.H.
Measurement Deviation : When the conductor being
measured is not placed in a correct position during
AC Current measurement.
It will cause ±1% reading deviation.
Operating Temperature : 0°C~30°C; <75% R.H.;
30°C~40°C; <70% R.H.; 40°C~50°C; <45% R.H.
Power Supply : 1.5V AAA battery x 2
Dimension : 208(L) X 76(W) X 30(H) mm
Weight : Approx. 260 gm (battery included)
AC VOLTAGE (Auto Ranging)
Accuracy Range
2.000 V
±(3%rdg + 12dgts) 20.00 V
200.0 V
±(2%rdg + 8dgts)
600 V
Overload Protection : 600V rms
±(1.0%rdg + 9dgts)
Input Impedance : 10M / <100pF
Display effective value of sine wave (mean value response)
Frequency response : 40Hz~1kHz
To adjust reading in accordance with effective value.
TEMPERATURE(K-Type Thermocouple)
Range
-40°C~1000°C
Accuracy
-40°F~1832°F
Overload Protection : 600V rms
Thermocouple accuracy not included.
Supplied Thermocouple is suitable for measurement upto 250°C
G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct.: 022 -2 4156638,
Email : kusam_meco@vsnl.net,
Accuracy
Resolution
1 mV
±(1.2%rdg + 5dgts)
10 mV
100 mV
±(1.5%rdg + 5dgts)
1 V
Accuracy
Resolution
-40~0°C:
±(3%rdg+9dgts)
0~400°C:
1°C
±(1%rdg+7dgts)
400~1000°C:
±(2%rdg+10dgts)
-40~32°F
±(3%rdg+10dgts)
1°F
32°F~752°F
±(1%rdg+8dgts)
752°F~1832°F
±(2%rdg+18dgts)
All Specifications are subject to change without prior notice
Tel. : 022-241224540, 24181649,
Model 2718
13 FUNCTIONS 20 RANGES
RESISTANCE (Auto Ranging)
Range Accuracy
Resolution
±(1.2%rdg + 2dgts)
200.0 100 m
2.000 k 1
±(1%rdg + 2dgts)
20.00 k 10
200.0 k 100
±(1.2%rdg + 2dgts)
2.000 M 1 k
±(1.5%rdg + 2dgts)
20.00 M 10 k
Overload Protection : 600V rms
Input Impedance : 10M
DIODE TEST
Range Accuracy
Resolution
Display Approximate
forward Voltage
1 mV
Drop:0.5V~0.8V
Open Circuit Voltage : Approx. 1.48V
Overload Protection : 600V rms
CONTINUITY TEST
Range Accuracy
Resolution
Around 50
100 m
the buzzer beeps
Open Circuit Voltage : Approx. 0.45V
Overload Protection : 600V rms
The buzzer may or may not beeps when the resistance of a circuit
under test is between 50 and 120
The buzzer may not beep when the resistance of a circuit under
test is greater than 120
Fax : 022 - 24149659
Website : www.kusamelectrical.com
Temperature Probe
