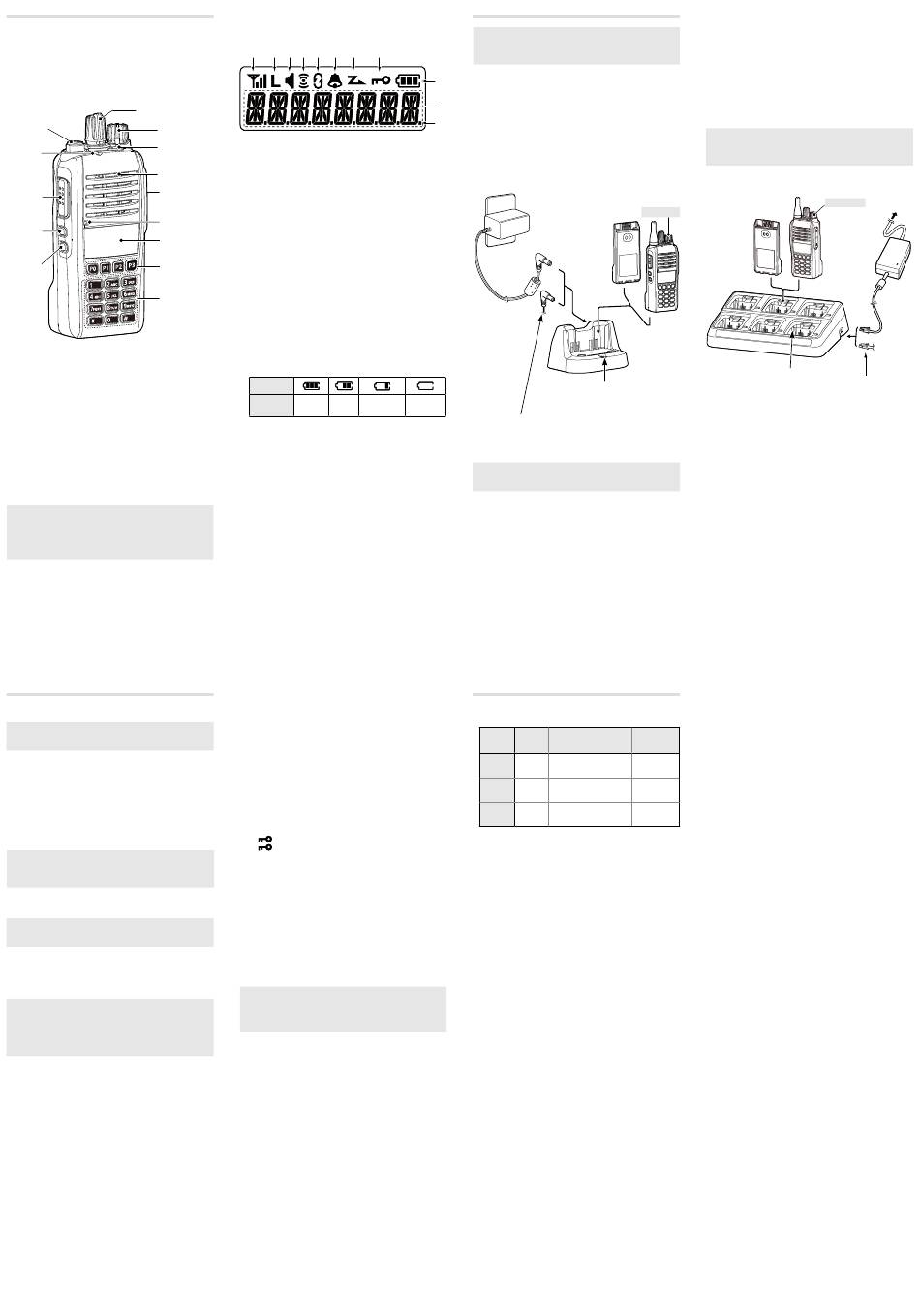

PANEL DESCRIPTION
There are 3 types of transceivers in the IC-F1100D and
IC-F2100D series.
• IC-F1100D / IC-F2100D: Non-display type
• IC-F1100DS / IC-F2100DS: Simple key type
• IC-F1100DT / IC-F2100DT: Ten-key type
The illustration below shows the Ten-key type transceiver.
[Rotary Selector]*
Antenna
connector
[VOL]
[Emer]*
Status
indicator
Speaker
Speaker
[PTT]
microphone
jack
Microphone
[Up]* 1,2
Function
[Upper]* 1,4
Display*
[Down]* 1,2
[P0],[P1],
[Lower]* 1,4
[P2],[P3]*
Ten-key*
*1: Dealer assignable.
*2: Only for the Simple key and Ten-key types.
*3: Only for the Ten-key type.
*4: Only for the Non-Display type.
D Status indicator
Lights red: Transmitting.
Lights green: Receiving or squelch is open.
Lights or blinks orange: A matching signal is received,
depending on the presetting.
Slowly blinks green: The battery should be charged.
Blinks green fast: The battery must be charged.
D Speaker microphone jack
CAUTION: DO NOT use the transceiver without the jack
cover or the optional equipment attached.
The transceiver meets IP67 requirements for dust-tight
and waterproof protection only when the jack cover or
the optional HM-168LWP, HM-171GPW, HS-94LWP, or
HS-95LWP is attached.
BASIC OPERATION
D Turning ON the transceiver
NOTE: Before using the transceiver for the first time, the
battery pack must be fully charged for optimum life and
operation. See the BATTERY CHARGING section.
z Rotate [VOL] to turn ON the transceiver.
D Receiving and Transmitting
Receiving:
1. Select a channel.
L Rotate [Rotary Selector] or push [CH Up] or
[CH Down], depending on the presetting.
2. When receiving a call, rotate [VOL] to adjust the audio
output level to a comfortable listening level.
NOTE: Depending on the presetting, the transceiver may
automatically transmit the microphone audio for the preset
time period when a matching signal is received. (Auto TX
function)
Transmitting:
CAUTION: Attach an antenna before transmitting.
Transmitting without an antenna may damage the
transceiver.
1. Wait until the channel is clear to avoid interference.
2. While holding down [PTT], speak at your normal voice
level.
3. Release [PTT] to receive.
IMPORTANT:
To maximize the readability of your signal:
1. After pushing [PTT], pause briefly before you start
speaking.
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak at your normal voice level.
D Function display
(For only the Simple key and Ten-key types)
1 2 3 4 5 6 7
1
1 SIGNAL STRENGTH INDICATOR
1
Displays the relative receive signal strength level.
2 LOW POWER ICON
Displayed when low output power is selected.
3 AUDIBLE ICON
• Displayed when the channel is in the 'Audible'
(unmuted) mode.
• Displayed when a matched 2-Tone or 5-Tone is
received.
GPS ICON
4
Displayed when the GPS signal is received, depending
2
on the presetting.
5 ENCRYPTION ICON
Displayed when the Encryption function is ON.
1, 2
6 BELL ICON
Displayed or blinks when a matching signal is received,
depending on the presetting.
1, 3
7 SCAN ICON
Displayed or blinks while scanning.
8 KEY LOCK ICON
Displayed when the Key Lock function is ON.
9 BATTERY INDICATOR
• Displays the remaining battery charge.
• Blinks when the battery charge decreases to a set
level.
Indication
Battery
Full Mid
Status
ALPHANUMERIC READOUT
10
Displays messages such as channel text.
11 SHIFT INDICATOR
Displayed when [Shift] is pushed.
D Key Lock function
You can use the Key Lock function to prevent accidental
channel changes and unnecessary function access,
depending on the presetting.
All assignable keys except the following are electronically
locked: [Monitor], [Call], [Call A], [Call B], [Emergency],
[Light], [Lock], [Lone Worker], [Siren], [Surveillance],
[Sp. Func 1] [Sp. Func 2], [Shift], and [PTT].
You can also make or receive calls, or turn the transceiver
ON or OFF, during the Key Lock function is ON.
z Hold down [Lock] for 1 second to turn the Key Lock
function ON or OFF.
For only the Simple-key and Ten-key types:
• " " is displayed when the Key Lock function is ON.
• " " disappears when the Key Lock function is OFF.
D AquaQuake Water Draining function
TM
If the [AquaQuake] is assigned to a key, the AquaQuake
Water Draining function clears water from the speaker grill
to maintain clear audio by vibrating the speaker cone.
1. Hold down [AquaQuake] to turn ON the AquaQuake
water draining function.
• A low frequency vibration is generating to remove
water from the speaker grill.
• Water in the speaker grill may muffle the sound
coming from the speaker.
2. Release the key to turn OFF the function.
NOTE:
• After the specified period of time expires, this function
automatically stops, even if a user continues to hold
down this key.
• This key works for only the internal speaker.
BATTERY CHARGING
NOTE: Before detaching or attaching a battery pack,
BE SURE to turn OFF the transceiver by rotating [VOL]
fully counter clockwise, until it makes a "click" sound.
8
Otherwise, a transceiver malfunction could occur.
9 D Rapid charging with the BC-213
You can rapidly charge the Li-ion battery pack with the
BC-213.
10
Charging time:
11
BC-213: Approximately 3.5 hours for the BP-280
Additionally needed item (purchase separately):
• A power adapter (may be supplied with the charger,
depending on the charger version).
Power adapter*
Charging Battery
required exhausted
The CP-23L (for a 12 V cigarette lighter socket) can be
used instead of the power adapter.
* A different type, or no power adapter is supplied,
depending on the charger version.
NOTE: If the charging indicator alternately blinks green
and orange, remove the battery pack or the transceiver
from the charger, then reinsert it.
OPTIONS
D BATTERY PACKS
• BP-278/BP-279/BP-280 BATTERY PACKS
Battery
Voltage
pack
BP-278 7.2 V
BP-279
7.2 V
BP-280
7.2 V
* When the power save function is turned ON, and the
operating periods are calculated under the following
conditions.
TX : RX : standby = 5 : 5 : 90
D CHARGERS
• BC-213 DESKTOP CHARGER + BC-123S AC
ADAPTER
To rapidly charge a single battery pack.
• BC-214 MULTI CHARGER + BC-157S AC ADAPTER
To rapidly charge up to 6 battery packs.
D DC CABLES
• CP-23L CIGARETTE LIGHTER CABLE
Use when charging the battery pack from a 12 V
cigarette lighter socket. (Use with the BC-213)
• OPC-656 DC POWER SOCKET
Use with a 13.8 V power source instead of the power
adapter. (Use with the BC-214)
D ANTENNAS
• FA-SC25V/FA-SC28V/FA-SC29V/FA-SC55V VHF
ANTENNAS
FA-SC25V: 136–150 MHz
FA-SC28V: 148–162 MHz
FA-SC29V: 160–174 MHz
FA-SC55V: 150–174 MHz
• FA-SC26VS/FA-SC27VS/FA-SC56VS/FA-SC57VS
VHF STUBBY ANTENNAS
FA-SC26VS: 136–144 MHz
FA-SC27VS: 142–150 MHz
FA-SC56VS: 150–162 MHz
FA-SC57VS: 160–174 MHz
• FA-SC61VC VHF CUT ANTENNA
FA-SC61VC: 136–174 MHz
• FA-SC25U/FA-SC57U/FA-SC72U/FA-SC73US UHF
ANTENNAS
FA-SC25U: 400–430 MHz
FA-SC57U: 430–470 MHz
FA-SC72U: 470–520 MHz
FA-SC73US: 450–490 MHz
• FA-SC25U/FA-SC57U/FA-SC72U/FA-SC73US UHF
ANTENNAS
FA-SC25U: 400–430 MHz
FA-SC57U: 430–470 MHz
FA-SC72U: 470–520 MHz
FA-SC73US: 450–490 MHz
• FA-SC26US UHF STUBBY ANTENNAS
FA-SC26US: 400–450 MHz
• FA-SC01U/FA-SC02U UHF ANTENNAS
FA-SC01U: 350–400 MHz
FA-SC02U: 330–380 MHz
• FA-SC61UC UHF CUT ANTENNAS
FA-SC61UC: 380–520 MHz
D Rapid charging with the BC-214
You can rapidly and simultaneously charge up to 6 battery
packs with the optional BC-214.
Charging time:
Approximately 2 to 3 hours for the BP-280
Additionally needed item (purchase separately):
• The BC-157S AC ADAPTER or the OPC-656 DC POWER
CABLE
CAUTION: DO NOT reverse the polarity when connecting
the OPC-656 to a power source. This will ruin the battery
charger.
Red: +, Black: _
Battery pack
+ Transceiver
Battery
Turn OFF
pack
BC-213 BC-214
Charging indicator
Lights orange: Charging
Lights green: Charged
*1: Charger adapter's shape may differ, depending on the
charger version.
*2: A different type, or no power adapter is supplied,
depending on the charger version.
OTHERS
• MB-130 CHARGER BRACKET
Mounts the BC-213 desktop charger on a variety of
places in a vehicle.
Approximate
Capacity
• MB-133 BELT CLIP
battery life*
• HM-158LA/HM-159LA/HM-168LWP/HM-171GPW
SPEAKER MICROPHONE
1130 mAh (minimum)
9 hours
Combination speaker-microphone that provides
1190 mAh (typical)
convenient operation while the transceiver is hanging on
your belt.
1485 mAh (minimum)
11.5 hours
The HM-171GPW includes high-performance GPS
1570 mAh (typical)
receiver.
2280 mAh (minimum) L Adjust the microphone gain before use.
18 hours
2400 mhA (typical) • HM-153LA/HM-166LA EARPHONE MICROPHONE
Ideal for hands-free operation. Clip the HM-153LA or
HM-166LA (with integrated PTT switch) to your lapel or
breast pocket.
L Adjust the microphone gain before use.
• HS-94/HS-95/HS-97 HEADSET
+ VS-4LA PTT SWITCH CABLE/OPC-2004LA
ADAPTER CABLE
HS-94: Ear-hook type
HS-95: Neck-arm type
HS-97: Throat microphone
VS-4LA: To connect to headsets
OPC-2004LA: To connect to headsets for VOX operation
L Adjust the both microphone and VOX gain before use.
• HS-94LWP/HS-95LWP HEADSET
HS-94LWP: Ear-hook type
HS-95LWP: Neck-arm type
L Adjust the both microphone and VOX gain before use.
Some options may not be available in some countries.
Ask your dealer for details.
Battery pack
+ Transceiver
To an
Battery
Turn OFF
AC outlet
pack
Power
adapter* 2
Charger adapter*
1
OPC-656
Connect to a DC power supply:
12 to 16 V, at least 7 A
Red: +, Black: _
