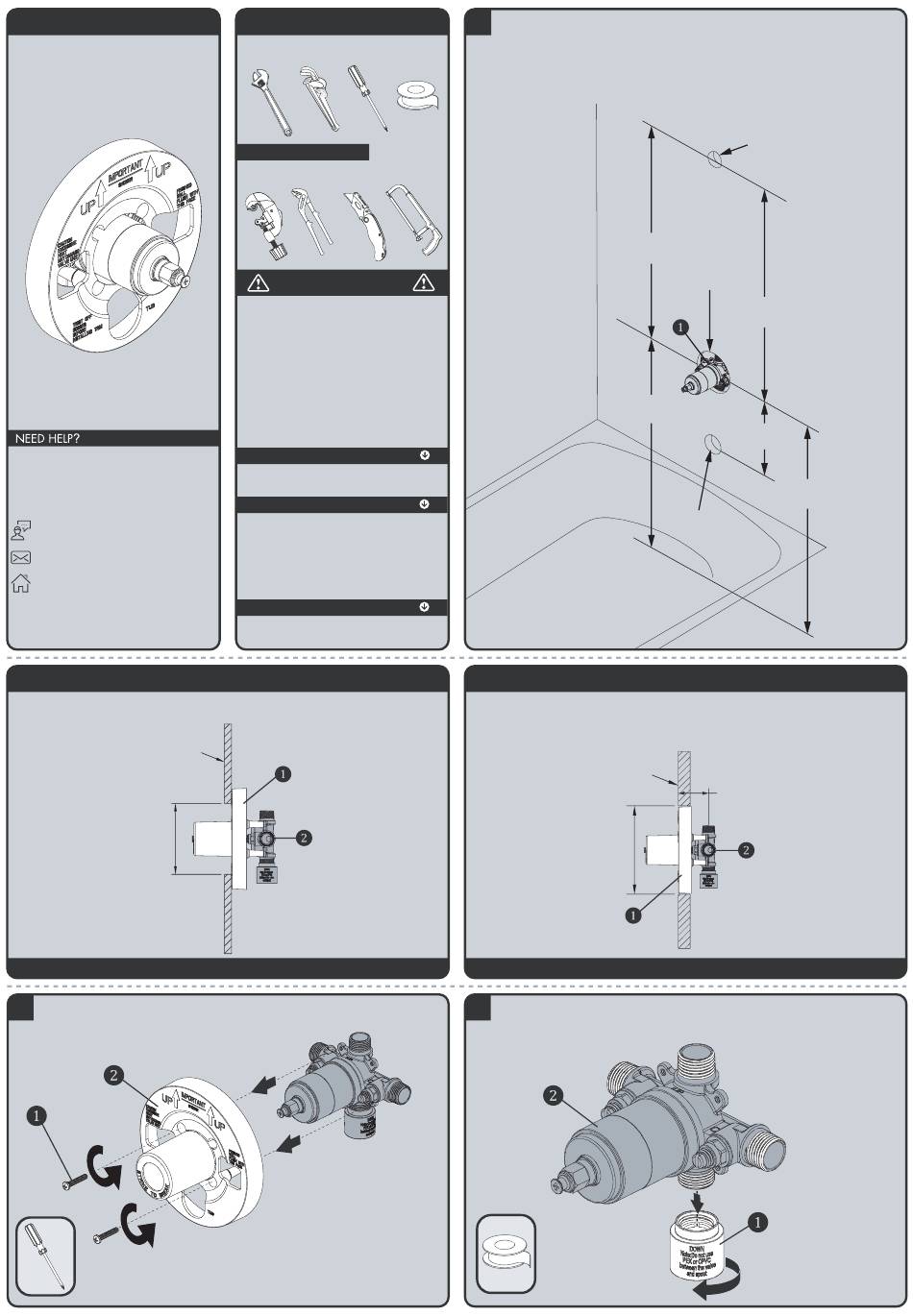

Speakman SM-12000 Installation Instructions

INSTRUCTIONS FOR MODELS
SM-12000
Valve Installation
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakman.com
www.speakman.com
92-CPV-12000-03
2A THIN WALL INSTALLATION
"Thin Walls"are usually built up with materials such as a fiberglass tub surround and will be the main source of support
for the valve. The plaster guard (1) remains attached to the valve (2). If you are performing a "Thin Wall" installation,
proceed to STEP 3.
FINISHED WALL
Ø 3-3/8 in" - 5"
NOTE: Be sure to position the body (2) correctly in the wall, with the markings "UP" facing upward.
3
Unscrew the screws (1), and remove the plaster guard (2),
TOOLS AND SUPPLIES
Adjustable Pipe Phillips Thread Seal
Wrench Wrench Screwdriver Tape
HELPFUL TOOLS & SUPPLIES:
Tubing Slip Joint Utility Hacksaw
Cutter Wrench Knife
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as outlined in this Installation
Manual.
• Inspect all connections after installation of valve.
• This valve has an operating range of 20-80 Psi.
• This valve is designed to be used in conjunction
with a shower-head rated at 1.75 gpm (6.6 L/min)
or higher flow rate.
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
MAINTENANCE
Your new Shower/Bath Valve is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of
harsh chemicals and abrasives on any of the Speakman
custom finish products may damage the finish and void
the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.
WARRANTY
Additional warranty information can be found at:
www.speakman.com
1
Shut off the water supply to the tub and shower. Verify that the hole sizes and positions in the wall are correct:
A. The shower and tub spout outlet holes should be 1¼" diameter.
B. To determine the Valve access hole size, see STEP 2A and STEP 2B.
C. The recommended valve depth to the finished wall is 1½" minimum to 2½" maximum. Position the valve body
(1) correctly in the wall with the "UP" pointing up. The 8" minimum from the valve body to the tub spout is
required for proper operation.
30"
Shower Only
48"
Shower Only
2B THICK WALL INSTALLATION
"Thick Walls"are usually built up with materials such as cement board, drywall, tile, etc. The plaster guard (1) is
positioned so that it is flush with the finished wall. This ensures that the valve will be at the correct position to accept the
trim. The depth for valve body (2) in wall is measured from center of Valve inlets to finished wall surface. The accepted
depth distance is 1½" - 2½". When the depth distance is 1½" - 2", there will be interference between the plaster guard
and escutcheon, we suggest removing the plaster guard after the wall installation.
FINISHED WALL
Ø6"
NOTE: Be sure to position the body (2) correctly in the wall, with the markings "UP" facing upward.
4
Remove the protective cap (1) from the valve body (2). If you are performing a pipe fitting installation, wrap
thread sealant tape (not included) around the pipe threads in a clockwise direction.
Ø1¼" Shower Outlet
ØSee Step 2
48"
Tub & Shower
8"
Minimum
30"
Tub & Shower
Ø1¼" Tub Outlet
1½"-2½"
