Installation, Operation & Maintenance Instructions
DESCRIPTION
Speakman Rainier Collection Combination Series unites the best products included in our Rainier Series.
The combination begins with our anti-scald balanced pressure valve with integral stops, featuring a brass
body and adjustable temperature limit stop. The metal construction wall plate and handle are designed with
definitive Rainier Collection styling. Piston type pressure balancing/ceramic regulating cartridge assembly
with built-in check valves. Meets ASME A112.18.1 / CSA B125.1 & ASSE 1016 standards.
SPECIFICATIONS
SM-8001-P ANTI-SCALD BALANCED PRESSURE VALVE:
CONNECTIONS: ½" Female Copper Sweat Inlets & Shower Outlet
½" NPT Female tub outlet
FLOW RATE: For use with Shower Heads rated at 2.0 gpm (7.6 L/min.) or higher.
MEETS: ASME A112.18.1 / CSA B125.1 & ASSE 1016 standards
INSTRUCTIONS
See individual product manuals for installation of the components and warranty information.

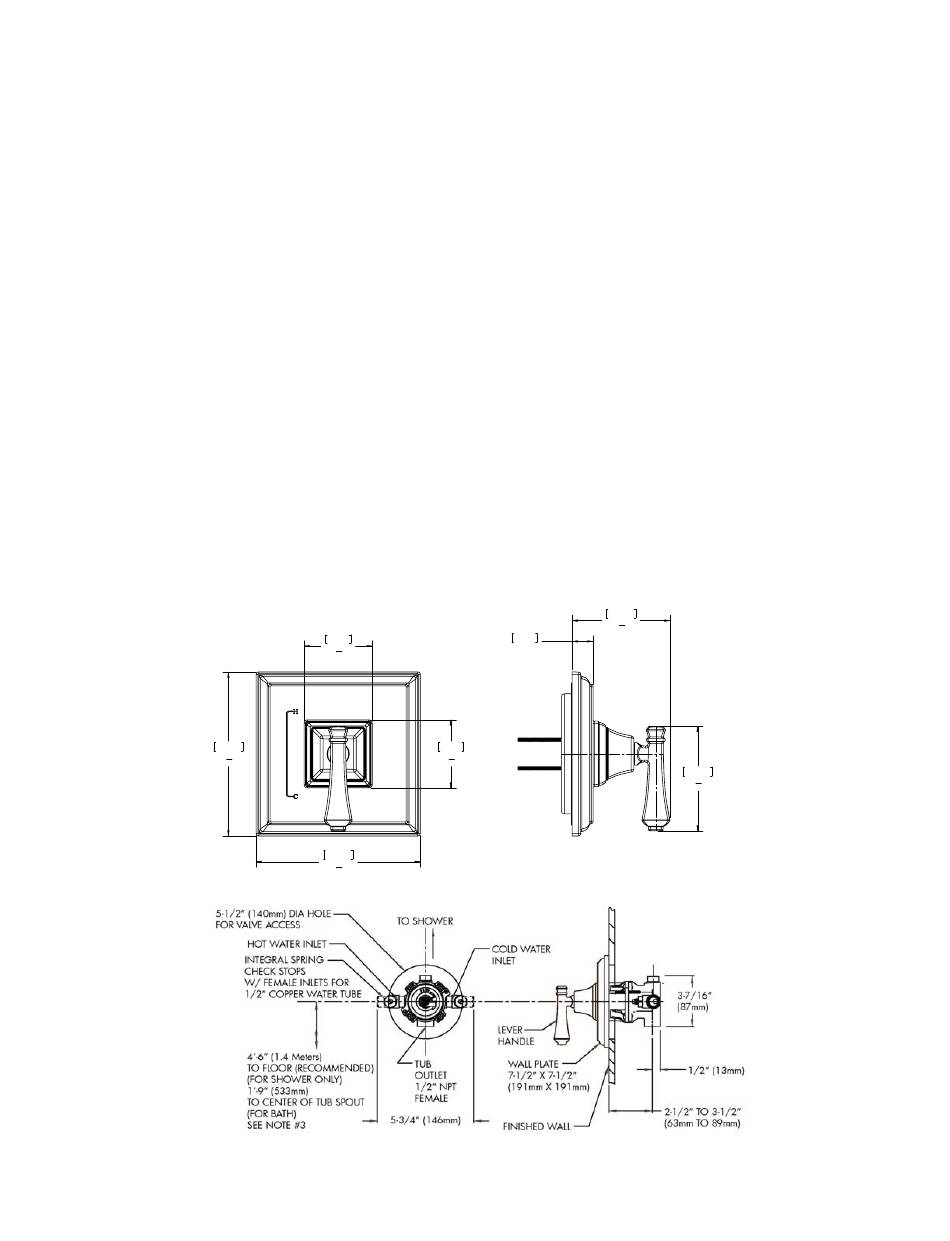

ROUGH-IN
190mm
400 Anchor Mill Rd. New Castle, DE 19720
SPEAKMAN
RAINIER COLLECTION COMBINATION SERIES
79mm
3 1
"
8
7 1
"
2
190mm
7 1
"
2
SPEAKMAN
02/21/18
www.speakman.com
®
SM-8001-P
24mm
1"
79mm
3 1
"
8
®
Phone: 800-537-2107
92-SM-8001-P-01
113mm
4 1
"
2
121mm
4 3
"
4
Fax: 800-977-2747
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Speakman CPV-P-IS
Summary of Contents for Speakman CPV-P-IS
- Page 1 RAINIER COLLECTION COMBINATION SERIES DESCRIPTION Speakman Rainier Collection Combination Series unites the best products included in our Rainier Series. The combination begins with our anti-scald balanced pressure valve with integral stops, featuring a brass body and adjustable temperature limit stop. The metal construction wall plate and handle are designed with definitive Rainier Collection styling.
-
Page 2: Maintenance
The use of harsh chemicals and abrasives on any of the Thread Seal Phillips Tubing Speakman custom finish products may damage the Tape Screwdriver Cutter finish and void the product warranty. Please be sure to only use approved cleaners. - Page 3 Make piping connections for all accessories. If your installation is for a shower only, apply Ensure Valve is positioned plumb and level. If your model of shower valve has Integral Take care to protect surrounding area when thread seal tape to the included ½” Pipe Plug Remove Rough-In Template from Valve.
- Page 4 SPEAKMAN CPV-P-IS / CPV-P-DV / CPV-3000 / CPV-3000-IS / CPV-3400 REPAIR PARTS ® ITEM NO. PART NO. DESCRIPTION RPG05-0718 4 SCREWS, BONNET, AND BONNET O-RING RPG05-0884 REPLACEMENT CARTRIDGE FOR MODELS CPV-P-IS, CPV-P-DV RPG05-0843 REPLACEMENT CARTRIDGE FOR MODELS CPV-3000, CPV-3000-IS, CPV-3400...
- Page 5 SPEAKMAN CPV-P-DV ROUGH-IN DIAGRAM ® NOTES: COMPLIANCE: ASME A112.18.1/CSA B125.1 Shower Valve ASSE1016 1" 25mm HOLE FOR 1/2" SWEAT CONNECTIONS: 6'-6" [2 METERS] " CONNECTION SHOWER ARM Hot/Cold Inlets: ½” Female Copper Sweat TO FLOOR 140mm Shower Outlet: ½” Female Copper Sweat HOLE FOR Tub Outlet: ½”...
- Page 6 SPEAKMAN CPV-3000-IS ROUGH-IN DIAGRAM ® NOTES: COMPLIANCE: ASME A112.18.1/CSA B125.1 1" Shower Valve ASSE1016 25mm 6'-6" [2 METERS] HOLE FOR TO FLOOR SHOWER ARM " CONNECTIONS: 140mm Hot/Cold Inlets: ½” Female Copper Sweat HOLE FOR Shower Outlet: ½” Female Copper Sweat VALVE ACCESS Tub Outlet: ½”...
- Page 7 Cover your drain to prevent loss of parts. MAINTENANCE For additional assistance or service please contact: Your new Speakman Product is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with a soft cloth. The use of harsh SPEAKMAN ®...
- Page 8 SPEAKMAN CPT-8001-P REPAIR PARTS ® ITEM NO. PART NO. DESCRIPTION RPG05-0874 SCREWS AND SPLINE ADAPTERS RPG10-104283-XX (XX=FINISH) TRIM PLATE FOR CPT-8001-P RPG04-0392-XX (XX=FINISH) HANDLE ASSEMBLY FOR CPT-8001-P SPEAKMAN CPT-8001-P ROUGH-IN DIAGRAM ® 1" 25mm HOLE FOR SHOWER ARM " "...
