GREISINGER GLF-100 Operating Manual

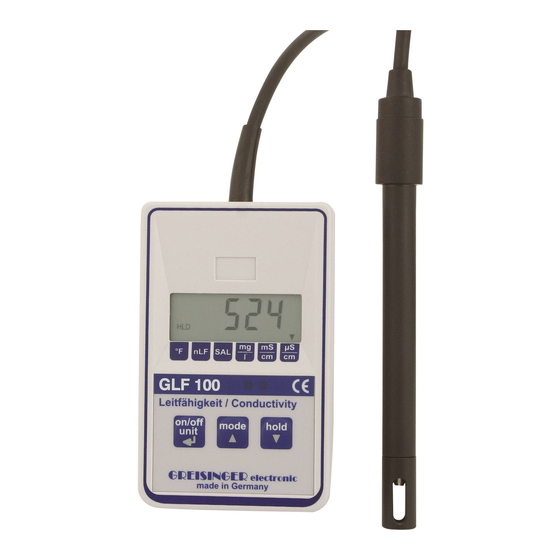

Conductivity measuring instrument
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

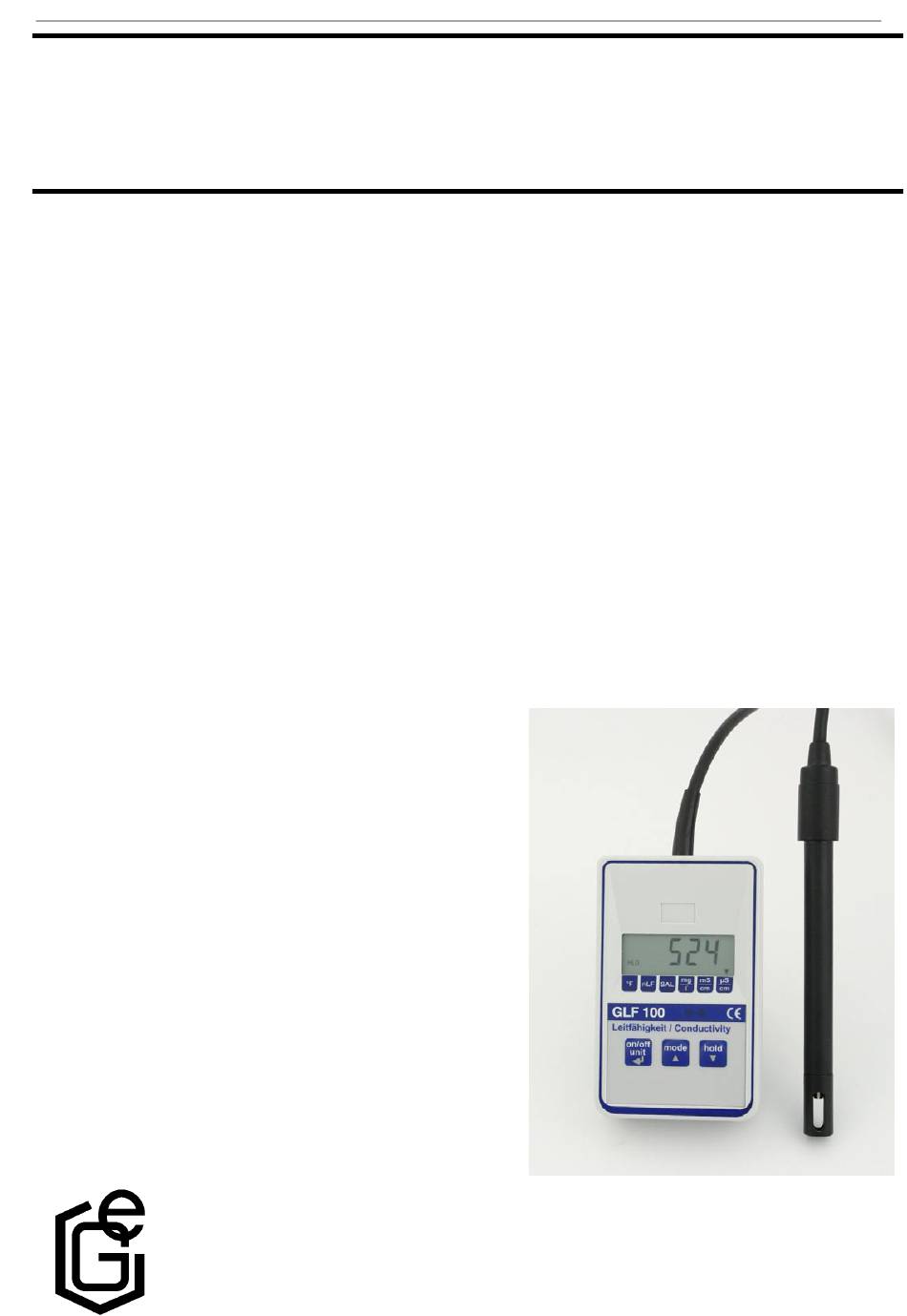

H66.0.01.6C-01
Conductivity measuring instrument
CONTENTS
1
IN GENERAL............................................................................................................................................................................ 2
1.1
1.2
1.3
1.4
1.5
...................................................................................................................................................................... 2
2
GENERAL INFORMATION ABOUT CONDUCTIVITY MEASURING ......................................................................... 3
2.1
2.2
2.3
2.4
-/
-
2.5
-
3
CONFIGURATION OF THE INSTRUMENT ...................................................................................................................... 4
4
ADJUSTING OF THE INSTRUMENT .................................................................................................................................. 5
5
SYSTEM MESSAGES.............................................................................................................................................................. 5
6
INSPECTION OF THE ACCURACY / ADJUSTMENT SERVICES ................................................................................. 5
7
SPECIFICATION ..................................................................................................................................................................... 6
precise measurements of conductivity, TDS (total dissolved
solids) and Salinity
Applications
•
Fresh and seawater aquaristics
•
Fish farming
•
Drinking water monitoring
etc.
GREISINGER
Operating Manual
GLF 100
......................................................................................................................................................... 2
.......................................................................................................................................... 2
................................................................................................................................................................ 2
............................................................................................................................................................. 2
................................................................................................................................ 3
............................................................................................................................................................... 3
........................................................................................................................................... 3
................................................................................................................................................ 3
................................................................................................................................................................ 3
Operating Manual GLF100
as of Version 1.0
electronic GmbH
page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLF-100 and is the answer not in the manual?

Questions and answers

Related Manuals for GREISINGER GLF-100

Summary of Contents for GREISINGER GLF-100

  • Page 1: Operating Manual

    SYSTEM MESSAGES................................5 INSPECTION OF THE ACCURACY / ADJUSTMENT SERVICES ................. 5 SPECIFICATION ..................................6 precise measurements of conductivity, TDS (total dissolved solids) and Salinity Applications • Fresh and seawater aquaristics • Fish farming • Drinking water monitoring etc. GREISINGER electronic GmbH...

  • Page 2: In General

    H66.0.01.6C-01 Operating Manual GLF100 page 2 of 6 1 In General 1.1 Safety Instructions This device has been designed and tested in accordance to the safety regulations for electronic devices. However, its trouble-free operation and reliability cannot be guaranteed unless the standard safety measures and special safety advises given in this manual will be adhered to when using it.

  • Page 3: General Information About Conductivity Measuring

    H66.0.01.6C-01 Operating Manual GLF100 page 3 of 6 2 General Information About Conductivity Measuring 2.1 The Conductivity Measuring Cell During the measurement, the conductivity measuring cell must be dipped at least in so far, that at least 30mm beginning from the top of the measuring cell, is located in the medium. The maximum immersion depth for continuous operation should not exceed 110mm.

  • Page 4: Configuration Of The Instrument

    H66.0.01.6C-01 Operating Manual GLF100 page 4 of 6 3 Configuration of the instrument To configure the instruments according to Your needs proceed like follows:: • Switch off instrument. • Switch on and press mode-key during the segment test ( ), until the display shows the first parameter ‚P_oF‘ •...

  • Page 5: Adjusting Of The Instrument

    H66.0.01.6C-01 Operating Manual GLF100 page 5 of 6 4 Adjusting of the instrument The cell correction may change due to natural ageing or deposits at the measuring cell. In case you have an accurate reference liquid, you may adjust the instrument by changing the cell constant accordingly. The temperature measuring is very stable and has to be adjusted in very seldom cases only.

  • Page 6: Specification

    H66.0.01.6C-01 Operating Manual GLF100 page 6 of 6 7 Specification Measuring Principle Conductivity measuring via 2 pole graphite electrode Meas. Ranges Range Resolution Conductivity 0 ... 2000µS/cm 1µS/cm 0.01 ... 20.00mS/cm 0.01mS/cm 0.1 ... 100.0mS/cm 0.1mS/cm 0 ... 1999 mg/l 1mg/l Salinity 0.0 ...
