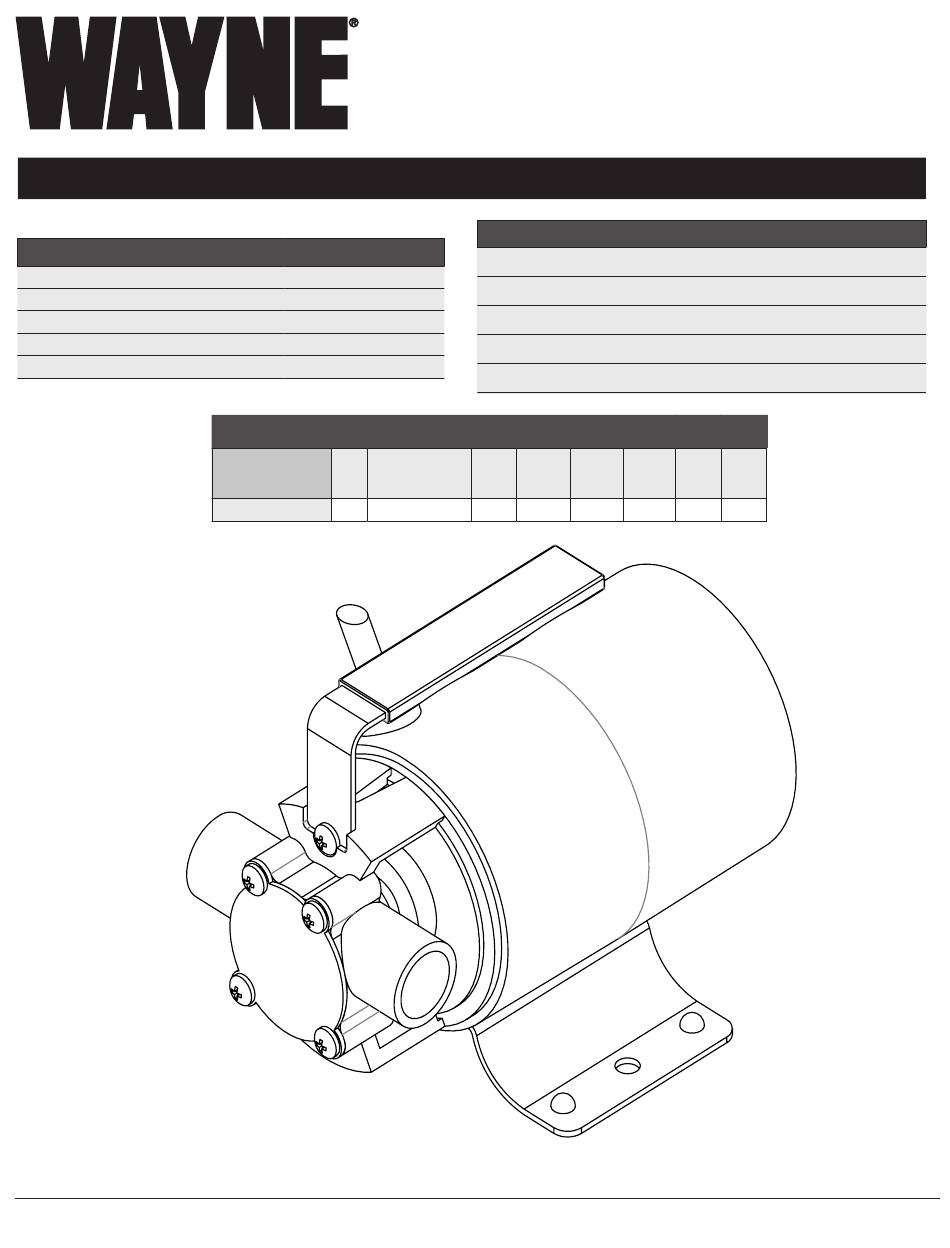

Operating Instructions and Parts Manual
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
POWER
CIRCUIT REQUIREMENT
LIQUID TEMPERATURE RANGE
© 2018, WAYNE/Scott Fetzer Company.
12 V, DC
Brush Type
12 V
15 A (minimum)
40° F- 120° F
PERFORMANCE
Model
Volt
Discharge Head
PC1
12

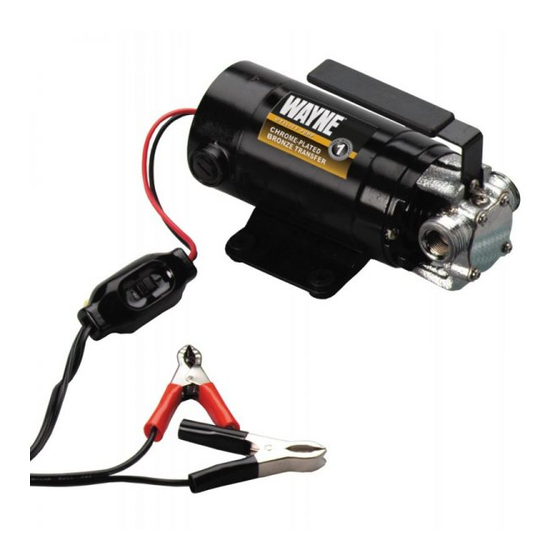

Self-Priming Transfer Pump
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
MOTOR HOUSE
IMPELLER
VOLUTE
PUMP SUCTION
PUMP DISCHARGE
0 ft.
5 ft.
Gal/hr
310
300
www.waynepumps.com
CONSTRUCTION
Coated Steel
Thermoplastic
Plated Bronze
3/4 in. Plated Bronze Hose Fittings
3/4 in. Plated Bronze Hose Fittings
10 ft.
15 ft.
20 ft.
25 ft.
265
230
185
145
620002-001 B 0/18
PC1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wayne PC1
Summary of Contents for Wayne PC1
- Page 1 LIQUID TEMPERATURE RANGE 40° F- 120° F PUMP DISCHARGE 3/4 in. Plated Bronze Hose Fittings PERFORMANCE Model Volt Discharge Head 0 ft. 5 ft. 10 ft. 15 ft. 20 ft. 25 ft. Gal/hr © 2018, WAYNE/Scott Fetzer Company. www.waynepumps.com 620002-001 B 0/18...
-
Page 2: General Safety Information
Operating Instructions and Parts Manual DESCRIPTION GENERAL SAFETY INFORMATION This self-priming transfer pump is designed to easily transfer clear water from one point to another in a temporary application. This Transfer Pump is convenient when normal power is not readily available. Typical applications include removing water from pool covers, clogged drains, stock tanks, water basins, boats, cisterns, etc. -
Page 3: Installation
électrique mortel. Connect the red clamp to the positive (+) type battery terminal. PC1 operates on 12 V DC only. Voltage and current of power Connect the black clamp to the negative (-) type battery terminal. supply must match the requirements of the pump. This pump has See 12V wiring diagram below (Figure 1). -
Page 4: Important Battery Information
Operating Instructions and Parts Manual IMPORTANT BATTERY INFORMATION If battery acid contacts your eye(s), flush with cold running water for 20 minutes and seek immediate medical Be certain that the area around the batteries is well ventilated. Before attention. If acid contacts your skin or clothing, wash immediately servicing the batteries, blow away gasses by waving a piece of with soap and water. -
Page 5: Maintenance
Operating Instructions and Parts Manual NOTES MAINTENANCE Always disconnect power source before attempting to install, service, or maintain the pump. Toujours débrancher le cordon d'alimentation avant d'essayer d'installer, de réparer ou de faire l'entretien de la pompe. IMPELLER REPLACEMENT NOTE: These parts are designed to handle most clear, nonflammable liquids with slight amounts of abrasives. -
Page 6: Troubleshooting Chart
LIMITED WARRANTY For one year for PC1 model from the date of purchase, from an authorized dealer, Wayne Water Systems will repair or replace, at its option for the original purchaser, any part or parts of its Multi-Use Pumps or Water Pumps (“Product”) found upon examination by Wayne Water Systems to be defective in materials or workmanship. - Page 7 For Replacement Parts or Customer Support, Call 1-800-237-0987 Please provide following information: Address parts correspondence to: - Model number WAYNE Water Systems - Serial number (if any) 101 Production Drive - Part description and number as shown in parts list Harrison, OH 45030 U.S.A.
- Page 8 NOTES...
