Setup Guide

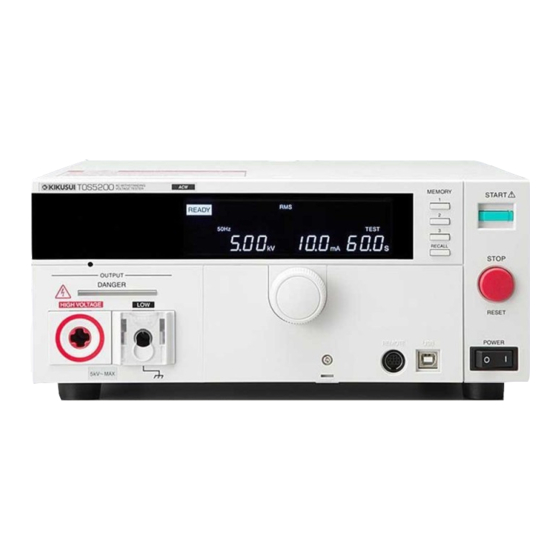

Withstanding Voltage Tester
TOS5200
Thank you for purchasing the TOS5200 Withstanding Voltage
Tester.
Notes to the Supervisor
■ If the operators cannot understand the language
used in this manual, translate the TOS5200 manu-
1
als
into the appropriate language.
■ Make sure that the operators understand the infor-
mation in the TOS5200 manuals
ate the product.
■ Keep the TOS5200 manuals
so that the operators can read them at any time.
■ If the tester will be used to repeatedly perform
tests with fixed conditions, such as when being
used as part of a manufacturing line, attach the
protection cover to ensure safe operation of the
tester. This is useful in preventing incorrect opera-
tion of the tester.
1: See "About the TOS5200 Manuals" on page 2.
KIKUSUI ELECTRONICS CORP.
1-1-3 Higashiyamata, Tsuzuki-ku, Yokohama,
224-0023, Japan
Tel: +81-45-593-7570
Fax: +81-45-593-7571
TOS5200
PART NO. Z1-006-140, IB028003
Jul. 2016
1
before they oper-
1
close to the product
DANGER
This product generates high
voltage!
●
Improper operation can lead to serious
accidents.
● To prevent accidents, be sure to read the
section "Safety Precautions during
Testing" in this setup guide.
● Keep this setup guide close to the
product so that the operators can read
the manual at any time.
Dangerous Operations
You will receive a potentially fatal electric shock if:
■ You touch an output terminal while output is being
generated.
■ You touch a test lead that is connected to an out-
put terminal while output is being generated.
■ You touch the device under test (DUT) while output
is being generated.
■ You touch a location that is electrically connected
to an output terminal while output is being gener-
ated.
You may receive a potentially fatal electric shock if:
■ You operate the tester without grounding it.
■ You operate the tester without using rubber gloves
for electrical work.
■ You come close to a location that is electrically
connected to an output terminal while output is
being generated.
Website
http://www.kikusui.co.jp/en
The newest version of the TOS5200 manuals can be
downloaded from Download service of Kikusui website.
