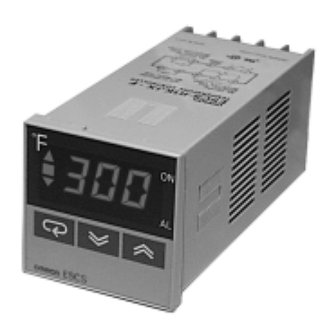

Temperature Controller E5CS-X 1/16 DIN Sized Controller Offers Selectable Control, Alarm Modes Accurate to ±0.5% of full scale Multiple temperature scale ranges allow flexibility to match application Field-selectable temperature ranges in °F and °C Selectable ON/OFF and PID control with auto-tuning of proportional band...
E5CS-X E5CS-X J ACCESSORIES (ORDER SEPARATELY) Description Part number Protective cover Hard plastic; protects front panel against dust, dirt and water drops Y92A-48 Panel mounting adapter Replacement for one supplied with each unit Y92F-30 Specifications Part number E5CS-j1KJX E5CS-j1PX E5CS-j1GX...
Page 3
E5CS-X E5CS-X Nomenclature 1. Main 9. Deviation indicators display 2. Control output indicator 8. Display data identifier 3. Alarm indicator 4. Up key 7. Write protection key 6. Return key 5. Down key Description Description The hidden write protection key provides protection against...
Page 4
E5CS-X E5CS-X Connections Voltage output type 20 mA, 12 VDC Contact output type 100 to 240 VAC, 50/60 Hz Thermocouple input type Alarm output Platinum RTD input type Thermistor input type Operation Temperature range selector switch J SETTINGS BEFORE APPLYING POWER...
Page 5
E5CS-X E5CS-X J FUNCTION SELECTOR SWITCH The function selector switch is a 6-pin in-line DIP switch. The following table shows the selection made by each switch position. Function Switch number Key protection for Enables protection Up/Down keys Disables protection Used for factory-authorized...
Page 6
E5CS-X E5CS-X Determining Control Output Operation If the temperature controller is used to control a heater, the con- trol output can be set to perform a reverse (inverted) operation. Set switch 3 of the control output mode selector switch to OFF Switch 4 ON: Input shift function enabled.
Page 7
E5CS-X E5CS-X J SELECTING A SCALE RANGE Use the rotary DIP switch to select the temperature scale range. changed to the maximum or minimum value of the newly set The tables below show the switch setting number for each range.
Page 8
E5CS-X E5CS-X J SELECTING ALARM MODES Select one of the eight alarm modes by using the rotary DIP switch located next to the rotary DIP switch for temperature scale range selection. The following table shows alarm functions. The selector switch is factory-set to position 2, upper-limit alarm.
Page 9
Precautions The E5CS-X temperature controller has self-diagnostic functions that display the following error messages to simplify troubleshooting. Message Cause Control output...
Page 10
E5CS-X Installation J MOUNTING J CONNECTIONS All E5CS-X models conform to DIN 43700 standard. Recom- Connection Examples mended panel thickness is 1 to 4 mm (0.04 to 0.16 in). Use M3.5 solderless terminals with the temperature controller’s M3.5 self-rising pressure plate screws.
