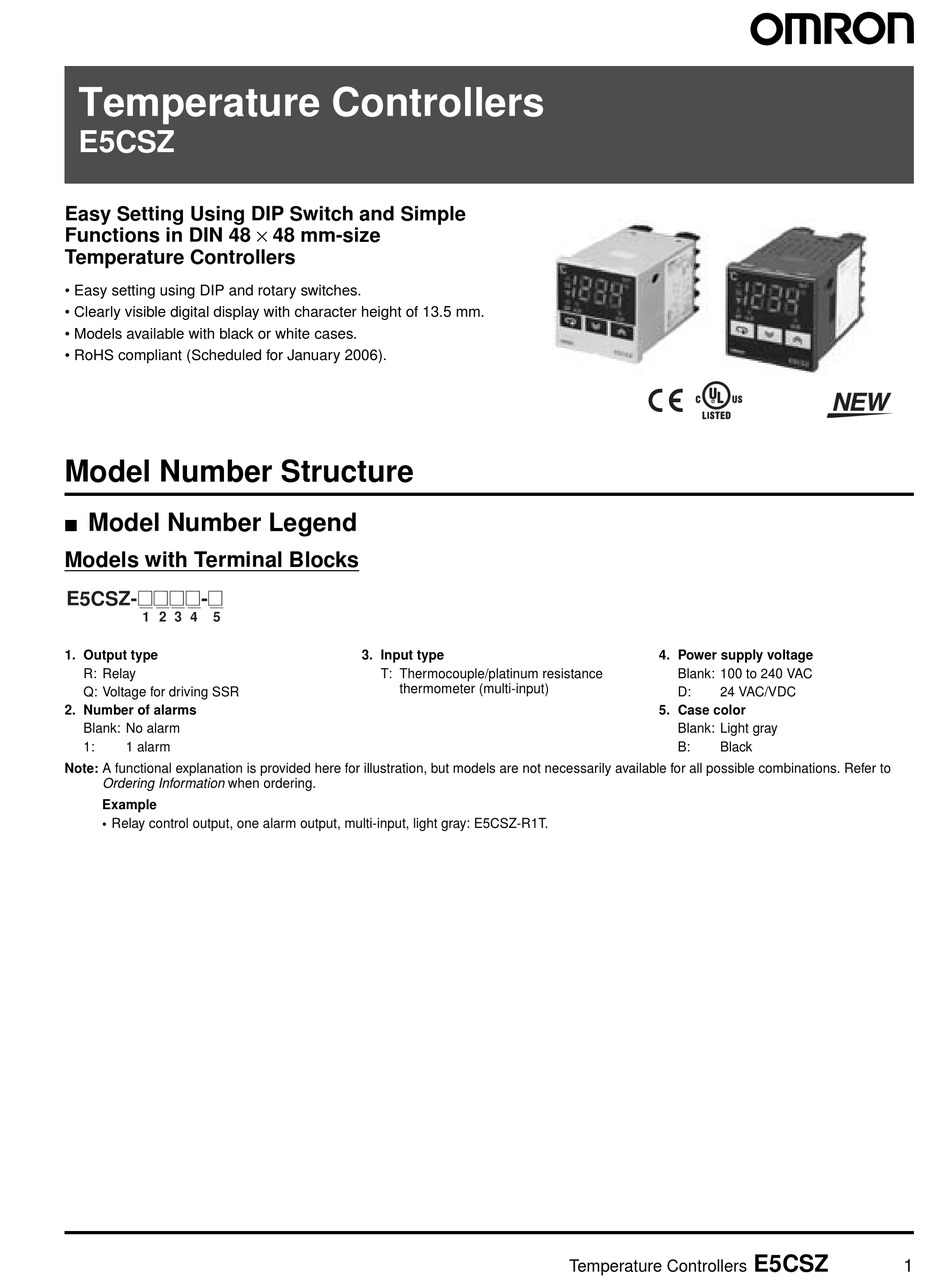

Temperature Controllers
E5CSZ
Easy Setting Using DIP Switch and Simple
Functions in DIN 48 × 48 mm-size
Temperature Controllers
• Easy setting using DIP and rotary switches.
• Clearly visible digital display with character height of 13.5 mm.
• Models available with black or white cases.
• RoHS compliant (Scheduled for January 2006).
Model Number Structure
Model Number Legend
■
Models with Terminal Blocks
E5CSZ-@@@@-@
1 2 3 4
5
1. Output type
R: Relay
Q: Voltage for driving SSR
2. Number of alarms
Blank: No alarm
1:
1 alarm
Note: A functional explanation is provided here for illustration, but models are not necessarily available for all possible combinations. Refer to
Ordering Information when ordering.
Example
• Relay control output, one alarm output, multi-input, light gray: E5CSZ-R1T.
3. Input type
T: Thermocouple/platinum resistance
thermometer (multi-input)
4. Power supply voltage
Blank: 100 to 240 VAC
D:
24 VAC/VDC
5. Case color
Blank: Light gray
B:
Black
Temperature Controllers
E5CSZ
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omron E5CSZ
Summary of Contents for Omron E5CSZ
- Page 1 Note: A functional explanation is provided here for illustration, but models are not necessarily available for all possible combinations. Refer to Ordering Information when ordering. Example • Relay control output, one alarm output, multi-input, light gray: E5CSZ-R1T. E5CSZ Temperature Controllers...
-
Page 2: Ordering Information
Control output TC/Pt multi-input voltage alarm points Case color: Light gray 1/16 DIN 100 to 240 VAC Relay E5CSZ-RT 48 × 48 × 78 mm Voltage (for driving SSR) E5CSZ-QT (W × H × D) Relay E5CSZ-R1T Voltage (for driving SSR) - Page 3 • L: ±2 ° C ±1 digit max. 2. The following exceptions apply to platinum resistance thermometers. Input set values 0, 1, 2, 3 for E5CSZ: 0.5% FS ±1 digit max. Input set value 1 for E5CSZ: 0.5% FS ±1 digit max.
-
Page 4: Temperature Range
−99 Setting number The shaded value indicates the default setting status. 1 ° C 0.1 ° C 1 ° C Minimum setting unit Do not set the temperature range switch to between No. 5 and No. 9. E5CSZ Temperature Controllers... -
Page 5: External Connection Diagram
2. Models with 100 to 240 VAC and 24 VAC/VDC are separate. Models using 24 VDC have no polarity. 3. The number of alarm outputs (none or 1) depends on the model. Nomenclature E5CSZ Models with Terminal Blocks Output indicator Deviation indicators... -
Page 6: Operation
3. When inserting the E5CSZ, check to make sure that the sealing rubber is in place and push the E5CSZ toward the rear case until 1. Insert the tool into the two tool insertion holes (one on the top and it snaps into position. - Page 7 199.9 or 0.0 to 99.9, the values will be multiplied by 10 (e.g., 0.5 becomes 5). If the unit is changed in the reverse direction, the values will be divided by 10. After changing the range, set the SP and alarm value again. E5CSZ Temperature Controllers...
-
Page 8: Operation Settings
Alarm output Note: Turn OFF the power before changing the DIP switch settings on the E5CSZ. Each of the switch settings will be enabled after the power is turned ON. For details on the position of the temperature range switch, control mode switches, and alarm mode switch, refer to page 6. - Page 9 Press for at least 2 s. AT execution in progress simultaneously with or before starting Controller AT cancelled operation. Press for at least 2 s. AT execution in progress Note: One of the deviation indicators (▲■▼) will flash. E5CSZ Temperature Controllers...
-
Page 10: Protect Switch
(2) Using the E5CSZ in Devices for Fahrenheit-scale Users (Displaying in ° F) Turn ON switch 6 to display temperatures in ° F. Temperature Range for °F The temperature is set to ° F using the same temperature range switch as ° C. -
Page 11: Installation
1. Insert the E5CSZ into the mounting hole in the panel. 2. Push the adapter from the terminals up to the panel, and temporarily fasten the E5CSZ. 3. Tighten the two fastening screws on the adapter. Alternately tighten the two screws little by little to maintain a balance. Tighten the screws to a torque of 0.29 to 0.39 N·m. -
Page 12: Platinum Resistance Thermometer
Burnout --- flashing fff flashing 2 or 3 wires disconnected --- flashing Short-circuit Note: The resistance value for platinum resistance thermometers is 100 Ω at 0 ° C and 140 Ω at 100 ° C. E5CSZ Temperature Controllers... -
Page 13: Model Number Legend
Main Differences Voltage Blank 100 to 240 VAC specifications Terminal block models use the model number E5CSZ. 24 VAC/VDC The suffix “D” is added to models with a supply voltage of Case color Blank Light gray 24 VAC/VDC. -
Page 14: Terminal Arrangement
Terminal Arrangement ■ • The terminal arrangement has changed from a horizontal to vertical configuration. Previous model E5CSZ Voltage output Relay output 100 to 240 VAC, 12 VDC, 50/60 Hz or 24 VAC/VDC, 20 mA 50/60 Hz 12 VDC, SOURCE... - Page 15 Previous model E5CSZ Alarm Mode Switch (Alarm Model Only) Function Selection Alarm Lower-limit Alarm type Alarm output operation Modes value 0, 9 Alarm function OFF Upper-limit Upper- and lower- limit Upper-limit Lower-limit Upper- and lower- limit range Upper- and lower-...
-
Page 16: Terminal Cover
44.8×44.8 60 min. L = (48 × N−2.5) Mounting side-by-side (group mounting of N Controllers) E5CSZ Note: Terminals cannot be removed. E5CSZ + Adapter for Flush Mounting Y92F-30 Adapter for flush mounting Panel (Provided) Adapter for flush mounting E5CSZ Tightening screws 76.5... -
Page 17: Precautions For Safe Use
Allow as much space as possible between the Temperature locked securely in place. Controller and devices that generate powerful high frequencies (high-frequency welders, high-frequency sewing machines, etc.) or surge. E5CSZ Temperature Controllers... -
Page 18: Precautions For Correct Use
Controller by the edge of the front panel when handling it. 21.Do not use paint thinner or similar chemical to clean with. Use standard grade alcohol. 22.Use tools when separating parts for disposal. Contact with the sharp internal parts may cause injury. E5CSZ Temperature Controllers... - Page 19 E5CSZ Temperature Controllers...
-
Page 20: Warranty And Application Considerations
CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE...
