GB

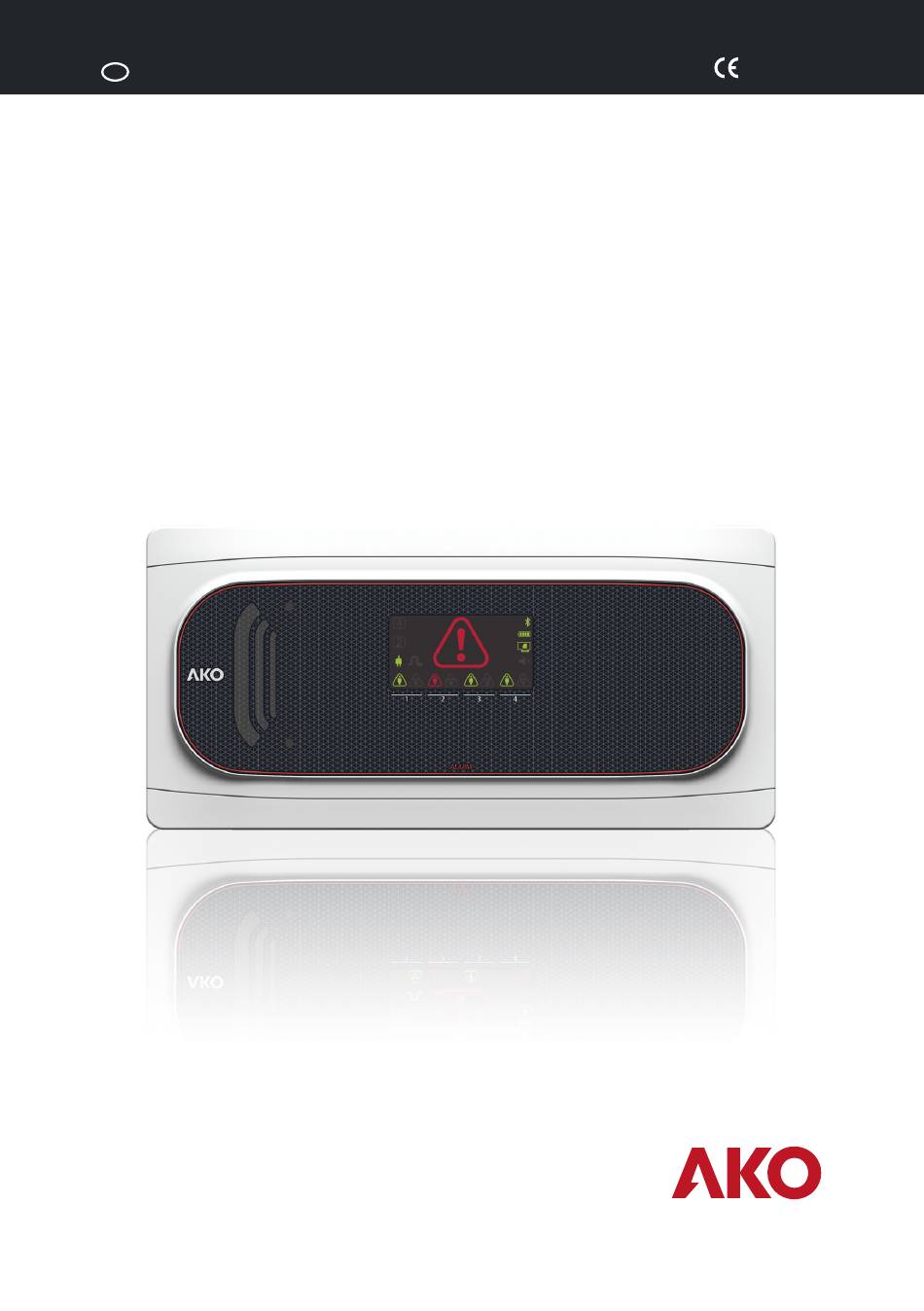

5542H402 Ed.03
AKO-55424
Trapped person alarm
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 55424 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AKO 55424

Summary of Contents for AKO 55424

  • Page 1 5542H402 Ed.03 AKO-55424 Trapped person alarm User Manual...

  • Page 2: Table Of Contents

    Only qualified personnel should install or perform technical assistance on this product. This product is designed to be used in the applications described in the product manual. AKO Electromecánica gives no guarantee of its operation in any use not foreseen in the manual, and is not responsible for any damage resulting from improper use, configuration, installation or commissioning.

  • Page 3: Versions And References

    5542H402 Ed.03 1.- Versions and references MODEL DESCRIPTION POWER SUPPLY 100-240 V~ Station alarm for 4 chambers AKO-55424 50/60 Hz AKO-55326 Luminous push-button AKO-58120 Protector for push-button AKO-55424 AKO-55326 AKO-55326 ALARM AKO-58120 2.- Warnings -The alarm and push-buttons should be installed in a place protected from vibrations, water and corrosive gases, where the ambient temperature does not exceed the value indicated in the technical data.

  • Page 4: Equipment Description

    5542H402 Ed.03 3.- Equipment description Alarm display Visual alarm Audible alarm ALARM AUTO-CONFIGURATION push-button (See page 7) Input Input Input Input Indicators Constant green: Trapped person push-button connected. Quick-flashing red: Malfunction / wiring fault in push-button. Slow-flashing red: Push-button not detected or disconnected. Constant red: Trapped person alarm activated.

  • Page 5: Installation

    5542H402 Ed.03 4.- Installation - Remove the bezels (1) from the device. - Loosen the screws (2) with a 1/4 turn and open the cover (3). - Drill the holes needed for the cable entry glands using the pre-stamped centres on the sides of the housing for guidance.

  • Page 6: Wiring

    5542H402 Ed.03 Wiring The wiring between the push-button and the station must NEVER be installed in a conduit alongside power, control or supply cables. Always disconnect the power supply to carry out wiring. For disconnection, the power supply circuit must be equipped with a switch of at least 2 A, 230 V, located near the device.

  • Page 7: Configuration

    5542H402 Ed.03 5.- Configuration Input auto-detection Step 1 When receiving a power supply for the first time, the alarm enters INPUT AUTO-DETECTION MODE, lighting up the input indicators sequentially in green. Step 2 Begin AUTO-DETECTION by pushing the ‘AUTOCONFIG’ push-button for 5 seconds (See page 4).

  • Page 8: Operation

    5542H402 Ed.03 6.- Operation No alarms The input indicators are green. Alarm activated The station emits an audible alarm sound, shows the affected input(s) in red, the general alarm indicator illuminates and the visual alarm flashes. Wiring error / malfunction The station emits 3 short beeps every two minutes and the input indicator affected flashes red.

  • Page 9: Connectivity

    Once modified, the original address indicated on the plate will no longer be valid. AKO-5012 AKO-80039 AKO-80039 Tr-: Yellow RS-485 >25 ** Tr+: Orange GND: Black CAMRegis AKOGAS AKOControl* AKOALARM SECURE AKOControl* AKOCORE CONTROL Terminating resistors are not required. *AKO controller with communication **AKO-80024 Use if connecting more than 25 devices...

  • Page 10: Technical Specifications

    Accumulators ..........................Ni-MH 1.6 Ah Lighting + alarm autonomy ......................> 10 Hours (*) No. of inputs...............................4 Compatibility of inputs....................AKO-55326 push-button Relays.............................SP T D 8(2)A 250 V~ Working ambient temperature ......................-5 ºC to 50 ºC Storage ambient temperature ......................-30 ºC to 60 ºC Protection degree ............................IP 65...

  • Page 11: Accessories

    5542H402 Ed.03 10.- Accessories Protector AKO-58120 Protects AKO-55326 push-button from possible impact.
  • Page 12 AKO ELECTROMECÁNICA , S.A.L. Avda. Roquetes, 30-38 08812 • Sant Pere de Ribes. Barcelona • Spain. Tel.: +34 902 333 145 Fax: +34 938 934 054 www.ako.com We reserve the right to supply materials that might vary slightly to those described in our Technical Sheets. Updated information is available on our website.
