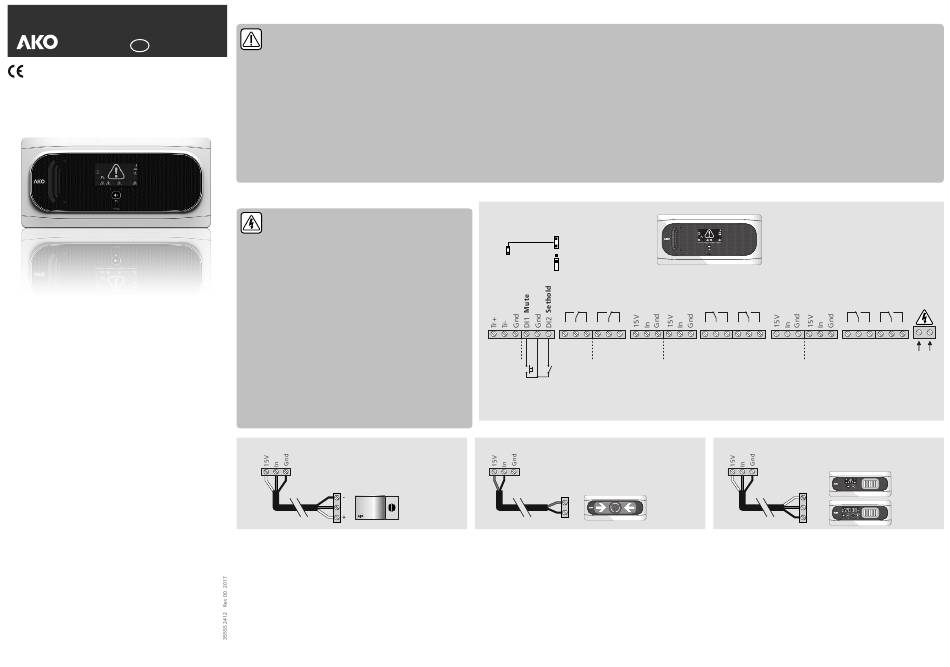

AKO -558241 Quick Manual

GB 5552H412 Ed.01
Gas leak detection
+ trapped person alarm
Quick guide
AKO-555241 AKO-558241
AKO-555242 AKO-558242
AKO ELECTROMECÁNICA , S.A.L.
Avda. Roquetes, 30-38
08812 • Sant Pere de Ribes.
Barcelona • Spain.
Tel.: +34 902 333 145
Fax: +34 938 934 054
www.ako.com
We reserve the right to supply materials that might vary slightly to those described in
our Technical Sheets. Updated information is available on our website.
Warnings
-The alarm and the transmitters / detectors should be installed in a place protected from vibrations, water and corrosive gases, where the ambient temperature does not exceed the value indicated in
the technical data. The station should be installed in a monitored area, where it is guaranteed that people able to alert to the presence of alarms will be present.
-Neither the alarm nor the gas transmitter / detector are suitable for areas classified as potentially explosive.
-Transmitters / detectors measure gas concentration at a given point. If the gas leak does not reach the transmitter / detector, the alarm will not be activated.
-Transmitters / detectors cannot supervise areas. If perimeter supervision is required, several transmitters / detectors should be installed surrounding the area to be supervised.
-Thoroughly studying transmitters' / detectors' location is recommended, bearing in mind the areas most vulnerable to suffering leaks, the type of gas used, the size and shape of the room, air flows,
maintenance work, etc.
-The EN-378 and F-GAS international standards require that correct transmitter / detector functioning be checked at least once per year. Review what current local regulations specify for these cases.
Consult the appropriate verification method in the transmitter / detector manual.
Work conditions:
-Avoid handling refrigerant gases near the transmitter / detector. Do not paint the transmitter / detector or place it near solvents or paints. Exposure to acetone vapours may cause false alarms.
-The transmitter / detector should be installed away from:
-Smoke outlets located in or originating from engines, generators or motorised machinery (fork-lift trucks, etc.).
-Particularly damp areas or with strong ventilation.
Wiring
Always disconnect the power supply to carry out wiring.
The wiring between the transmitter / detector / push-button
and the station should NEVER be installed in a conduit alongside
power, control or supply cables.
For disconnection, the power supply circuit must be equipped with
a switch of at least 2 A, 230 V, located near the device. The power
supply cable will be H05VV-F or NYM 1x16/3. The section to be
used will depend on current local regulations, but should never be
2
less than 1.5 mm .
Cables for wiring the relay contact should have the relevant
section for the device to be connected
The 120 / 230 V~ wiring must be kept clear of any other external
element.
Make sure you have connected the batteries before
starting up the device. (AKO-558xxx models are not equipped
with batteries.).
Certain international standards indicate that alarm power supply
should originate from a different circuit to that used for the
refrigeration and ventilation system. Be sure to comply with
current local regulations.
Gas detector
Input x
S

Technical specifications

Power supply ........................................................................................................100-240 V~ 50/60 Hz
Maximum input power ...................................................................................................................15 W
Accumulators (Only AKO-555xxx) .......................................................................................Ni-MH 1.6 Ah
Lighting + alarm autonomy (Only AKO-555xxx).................................................................> 10 Hours (*)
No. of inputs AKO-555241/558241..............................................................................................2
AKO-555242/558242..............................................................................................4
Compatibility of inputs........................................AKO-52326, AKO-5221x, AKO-5761x, AKO-575xxx
Relays.......................................................................................................................SPDT 8(2)A 250 V~
Working ambient temperature ...........................................................................................-5 ºC to 50 ºC
Pre-alarm
jumper
Pre-alarm disabled
Pre-alarm enabled
Input 1 Input 2
RS485 RY1 Gas Fail
1 C 2 NO C NC
Trapped Gas
person system
failure
Remote Remote
mute Set Hold
H.E. push-button
Input x
15V
Out
Storage ambient temperature.......................................................................................-30 ºC to 60 ºC
Protection degree........................................................................................................................IP 65
Installation category...................................................................................................II s/ EN 61010-1
Pollution degree.........................................................................................................II s/ EN 61010-1
Double isolation between power supply, secondary circuit and relay output.
Sound power ........................................................................................................90 dB(A) at 1 metre
MODBUS address ........................................................................................................Shown on label
Maximum push-button cable distance........................................................................................300 m
Dimensions .........................................................................290 mm (W) x 141 mm (H) x 84.4 mm (D)
SECURE
Input 3* Input 4*
RY2 RY3 RY4*
NC C NO NC C NO NC C NO NC
Gas Gas Gas
Pre-Alarm Alarm Pre-Alarm
CAM 1 CAM 1 CAM 2
*Only AKO-555242 / 558242
Gas transmitter / detector
Input x
AKO-575xxx / AKO-5761x
15V
S
GND
RY5* Vac
C NO
Gas
Alarm
100 -
CAM 2
240 V~
50/60 Hz
