AKO -55624 Quick Manual

GB 5572H412 Ed.01
Gas Leak Detection Alarm
Quick guide
AKO-55624 AKO-55724
AKO ELECTROMECÁNICA , S.A.L.
Avda. Roquetes, 30-38
08812 • Sant Pere de Ribes.
Barcelona • Spain.
Tel.: +34 902 333 145
Fax: +34 938 934 054
www.ako.com
We reserve the right to supply materials that might vary slightly to those described in
our Technical Sheets. Updated information is available on our website.

Warnings

-The alarm and the transmitters / detectors should be installed in a place protected from vibrations, water and corrosive gases, where the ambient temperature does not exceed the value indicated in
the technical data. The station should be installed in a monitored area, where it is guaranteed that people able to alert to the presence of alarms will be present.
-Neither the alarm nor the gas transmitter / detector are suitable for areas classified as potentially explosive.
-Transmitters / detectors measure gas concentration at a given point. If the gas leak does not reach the transmitter / detector, the alarm will not be activated.
-Transmitters / detectors cannot supervise areas. If perimeter supervision is required, several transmitters / detectors should be installed surrounding the area to be supervised.
-Thoroughly studying transmitters' / detectors' location is recommended, bearing in mind the areas most vulnerable to suffering leaks, the type of gas used, the size and shape of the room, air flows,
Maintenance work, etc.
-The EN-378 and F-GAS international standards require that correct transmitter / detector functioning be checked at least once per year. Review what current local regulations specify for these cases.
Consult the appropriate verification method in the transmitter / detector manual. Be sure to always comply with current local regulations.
Work conditions:
-Avoid handling refrigerant gases near the transmitter / detector. Do not paint the transmitter / detector or place it near solvents or paints. Exposure to acetone vapours may cause false alarms.
-The transmitter / detector should be installed away from: -Smoke outlets located in or originating from engines, generators or motorised machinery (fork-lift trucks, etc.).

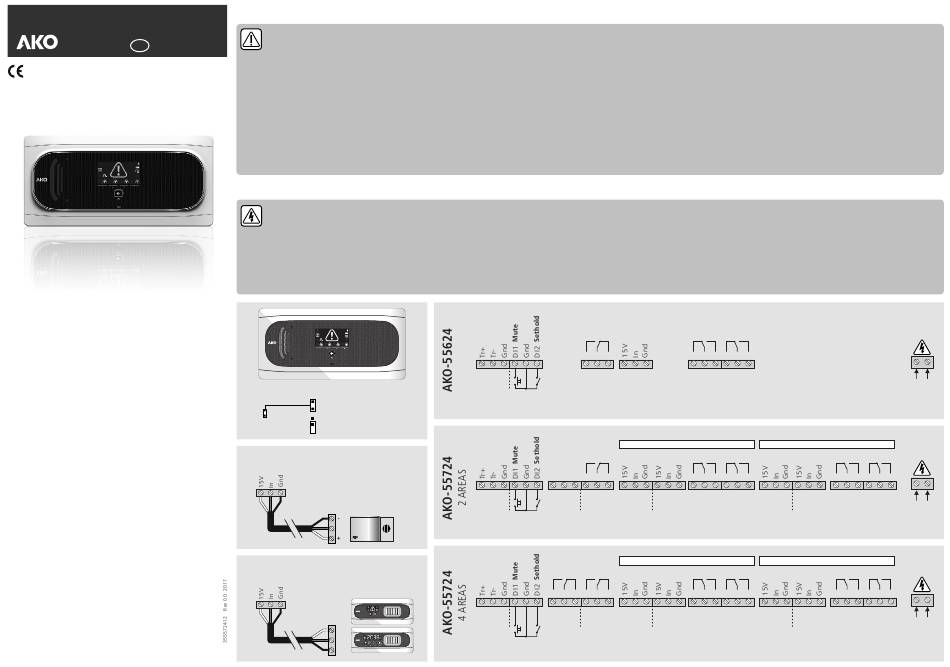

Wiring

Always disconnect the power supply to carry out wiring.
The wiring between the transmitter / detector / push-button and the station should NEVER be installed in a conduit alongside power, control or supply cables.
For disconnection, the power supply circuit must be equipped with a switch of at least 2 A, 230 V, located near the device. The power supply cable will be H05VV-F or NYM 1x16/3. The section to be used will
depend on current local regulations, but should never be less than 1.5 mm .
Cables for wiring the relay contact should have the relevant section for the device to be connected
The 120 / 230 V~ wiring area must be kept clear of any other external element.
Certain international standards indicate that alarm power supply should originate from a different circuit to that used for the refrigeration and ventilation system. Be sure to comply with current local
regulations.
GAS
Pre-alarm
jumper
Pre-alarm disabled
Pre-alarm enabled
Gas detector AKO-5221x
Input x
S
Gas transmitter / Gas detector
AKO-575xxx / AKO-5761x
Input x
15V
S
GND
-Areas which are particularly damp or have strong ventilation.
2
RS485 Gas Fail
NO C NC
Gas
system
failure
Remote Remote
mute Set Hold
RS485 Gas Fail
NO C NC
Gas
system
failure
Remote Remote
mute Set Hold
RS485 RY1 Gas Fail
1 C 2 NO C NC
Gas Gas
Pre-Alarm system
Areas 1-4 failure
Remote Remote
mute Set Hold
Input 1
RY2 RY3
NC C NO NC C NO
Input 1 Gas Gas
Pre-Alarm Alarm
Area 1
Input 1 Input 2 Input 3 Input 4
RY2 RY3
NC C NO NC C NO
Gas Gas
Input 1 Input 2 Input 1 Input 2
Pre-Alarm Alarm
Area 1 Area 1 Area 2 Area 2
Area 1 Area 1
Areas 1 and 2
Input 2 Input 4
Input 1 RY2 RY3 Input 3
NC C NO NC C NO
Input 1 Input 2 Gas Gas Input 3 Input 4
Alarm Alarm
Area 1 Area 2
Vac
100 - 240 V~
50/60 Hz
Area 2
RY4 RY5 Vac
NC C NO NC C NO
Gas Gas
Pre-Alarm Alarm
100 - 240 V~
Area 2 Area 2
50/60 Hz
Areas 3 and 4
RY4 RY5 Vac
NC C NO NC C NO
Gas Gas
Alarm Alarm
100 - 240 V~
Area 3 Area 4
50/60 Hz
