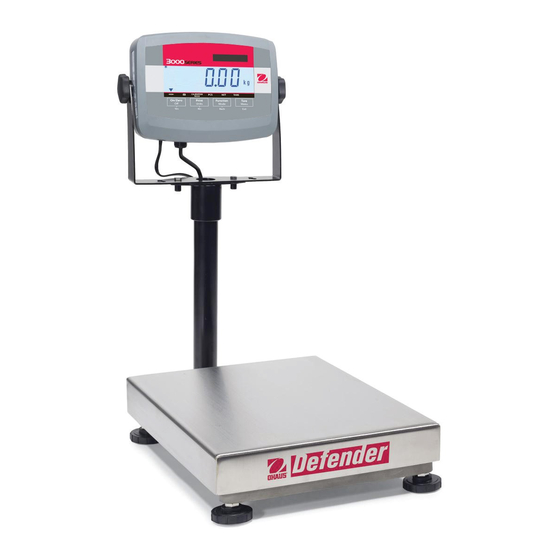

DEFENDER SERIES SCALES
Assembly Instructions
(Refer to Documentation CD
for operating instructions)
Remove Scale and
Attach Indicator to Bracket.
Accessories from carton.
Attach Bracket to Column.
10mm
Install Platform.
Adjust 4 levelling feet.
Remove Shipping
Spacers.
17 mm
Connect Power Cord to Indicator.
Attach Column and
Plug Power Supply to Wall Outlet.
secure Load Cell Cable.
10mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OHAUS Defender 3000
Summary of Contents for OHAUS Defender 3000
- Page 1 DEFENDER SERIES SCALES Assembly Instructions (Refer to Documentation CD for operating instructions) Remove Scale and Attach Indicator to Bracket. Accessories from carton. Attach Bracket to Column. 10mm Install Platform. Adjust 4 levelling feet. Remove Shipping Spacers. 17 mm Connect Power Cord to Indicator. Attach Column and Plug Power Supply to Wall Outlet.
- Page 2 OVERVIEW OF CONTROLS AND FUNCTIONS NOTE: REFER TO DEFENDER SERIES CD DISK FOR COMPLETE INSTRUCTIONS *80251057* P/N 80251057 © Ohaus Corporation 2006, all rights reserved. Printed in China...
