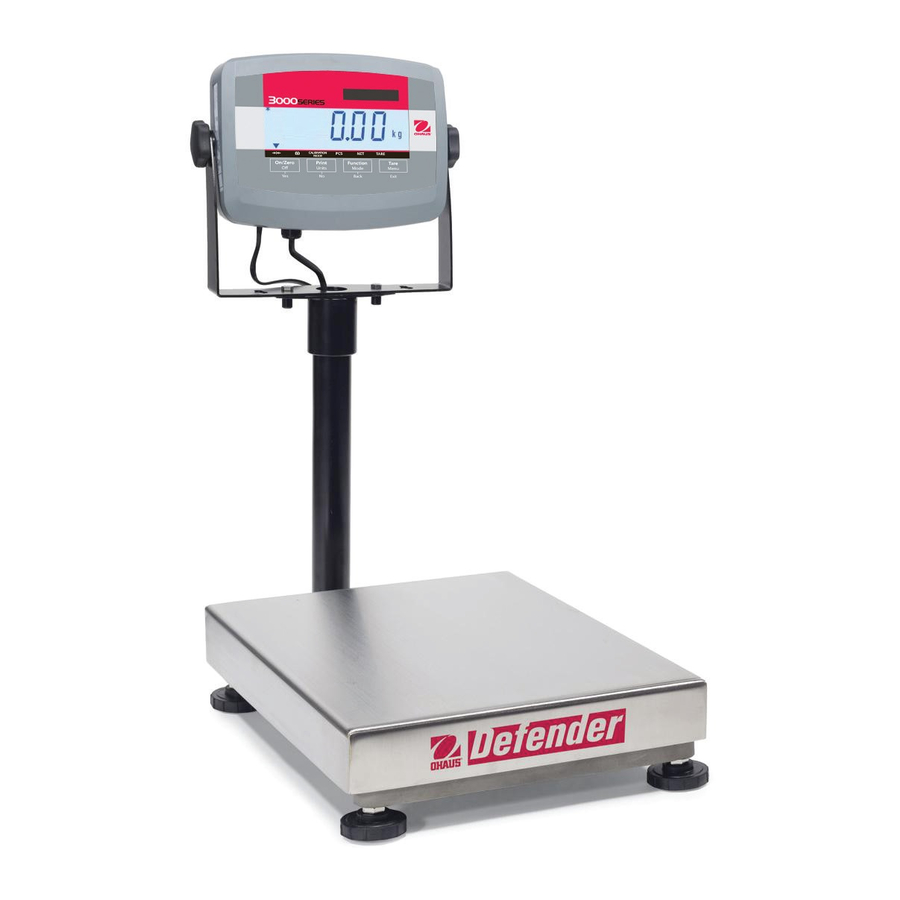

DEFENDER™ SERIES SCALE

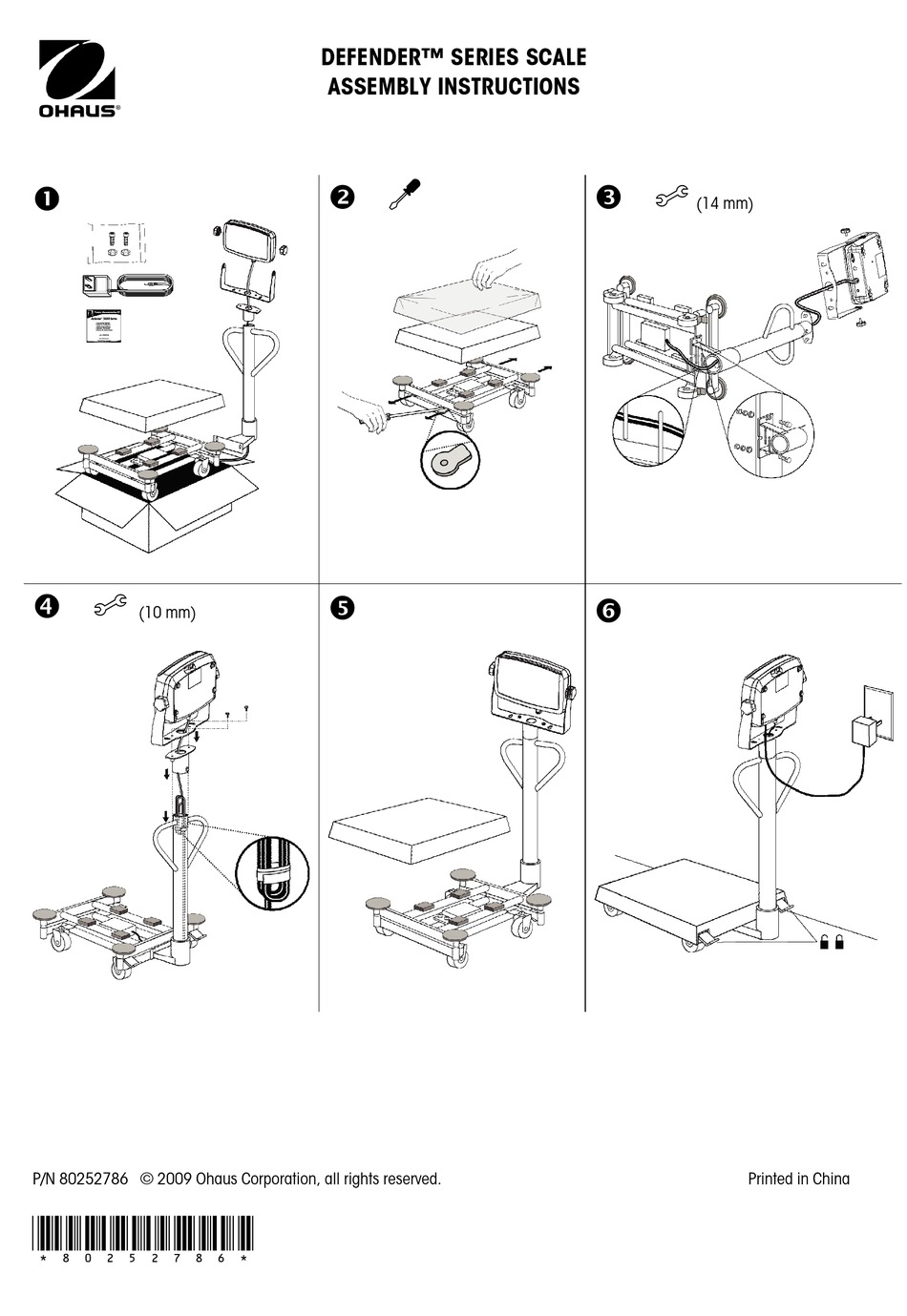

ASSEMBLY INSTRUCTIONS
(14 mm)
(10 mm)
P/N 80252786 © 2009 Ohaus Corporation, all rights reserved.
Printed in China
*80252786*
