anovafurnishings.com
888.535.5005 tel
tAble components:
3 x Table Top Plank
Right Leg
2 x Seat Plank
Assembly HArdwAre:
22 x
Torx T30 X 3.0"
T25 X 3.0"
Washer Head Screw
Torx Head Screw
Assembly:
The assembly is a two-person operation.
1. Inspect the shipping container contents for damage and to determine that all components and hardware are present.
2. Assemble the Table over the shipping packaging or padded work area to avoid scratching the product.
Note: Before assembling the Nuts to the Bolts, it is recommended that a light oil or petroleum jelly be applied to the screw threads
3. Lay the three Table Top Planks out on the padded work area. The Table Top Planks can be distinguished from the Seat Planks
because the Table Top Planks have four predrilled through holes and four inner pilot holes while the Seat Planks have five
predrilled through holes. Arrange the Table Top planks with the four inner pilot holes facing up.
4. Locate the two Angle Brace Mounts. Use the T25
Torx Driver to start six T25 x 2.5" Torx Screws
into the predrilled holes in one of the Angle Brace
Mounts. Drive the Screws into the Brace Mount
Right Leg
until the points emerge on the other side. Place
the Angle Brace Mount over one of the inner rows
of predrilled pilot holes in the Table Top Planks,
Right Leg
aligning the points of the Torx Screws with the
pilot holes.
Use the T25 Torx Driver to drive the Screws into
the Table Top Planks until tight.
Repeat this step for the other Angle Brace Mount.

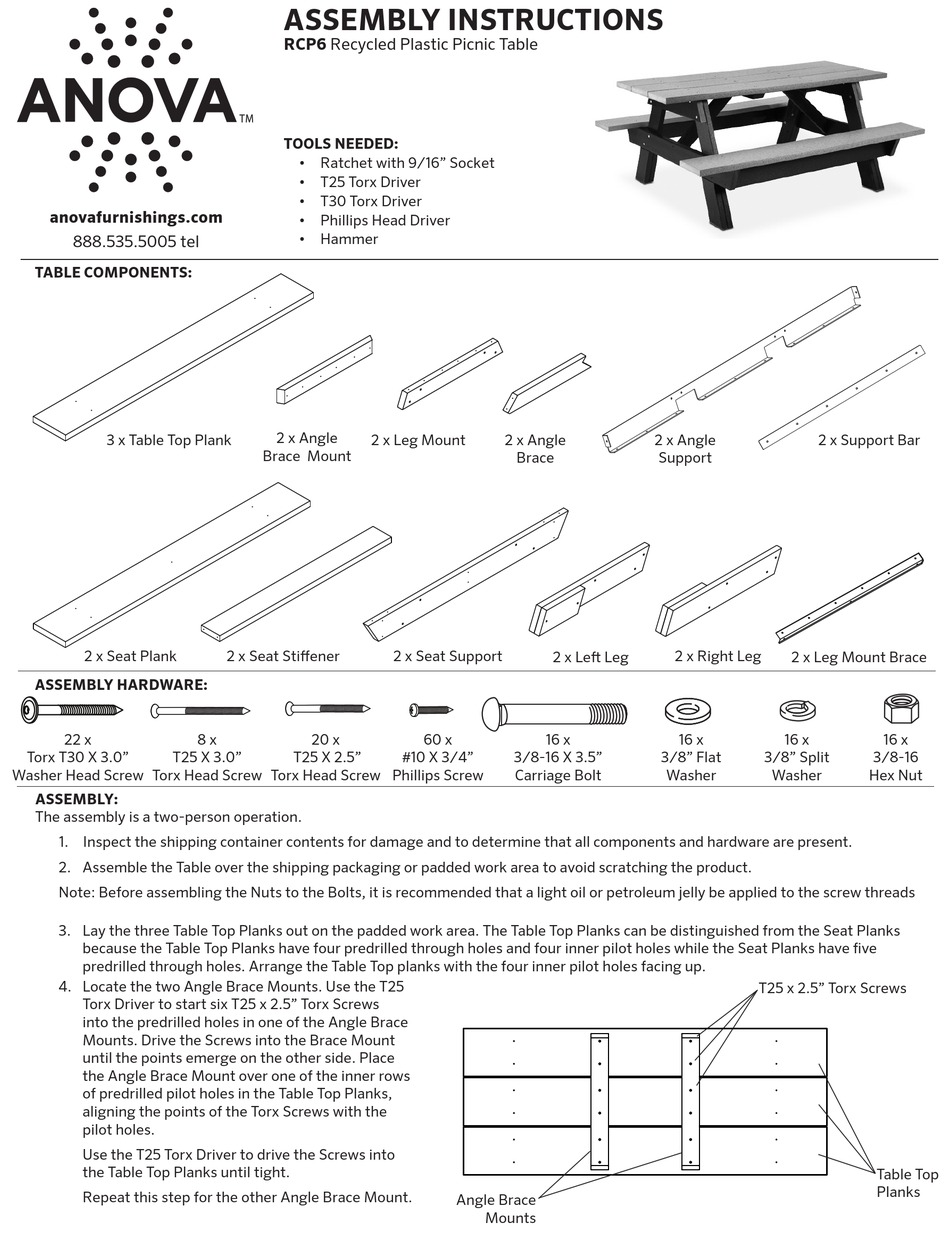

Assembly InstructIons
rcp6 Recycled Plastic Picnic Table
tools needed:
•
Ratchet with 9/16" Socket
•
T25 Torx Driver
•
T30 Torx Driver
•
Phillips Head Driver
•
Hammer
2 x Angle
2 x Leg Mount
Brace Mount
2 x Seat Stiffener
8 x
20 x
T25 X 2.5"
Torx Head Screw
2 x Angle
Brace
Left Leg
2 x Seat Support
2 x Left Leg
60 x
16 x
#10 X 3/4"
3/8-16 X 3.5"
Phillips Screw
Carriage Bolt
Left Leg
Left Leg
Angle Brace
Mounts
2 x Angle
2 x Support Bar
Support
2 x Right Leg
2 x Leg Mount Brace
16 x
16 x
3/8" Flat
3/8" Split
Washer
Washer
T25 x 2.5" Torx Screws
16 x
3/8-16
Hex Nut
Table Top
Planks
Advertisement
Table of Contents
Related Manuals for Anova rcp6
Summary of Contents for Anova rcp6
-
Page 1: Tools Needed
Assembly InstructIons rcp6 Recycled Plastic Picnic Table tools needed: • Ratchet with 9/16” Socket • T25 Torx Driver • T30 Torx Driver anovafurnishings.com • Phillips Head Driver • Hammer 888.535.5005 tel tAble components: 2 x Angle 3 x Table Top Plank... - Page 2 5. Install a Support Bar along the inside edge of one of the Angle Brace Mounts. Angle Brace Mount Phillips Screws Note: The Support Bar has small chamfers on the upper corners. Install the Support Bar so the chamfers are away from the Table Top Surface.
- Page 3 11. Return to the Table Top Assembly. Orient the Table Top so that the top surface is facing upward. Start one T30 x 3” Washer Head Screw into each of the corner pilot holes. Stop when the point of the screw emerges from the bottom side of the Table Top. Carefully lift the Table Top Assembly and position it over the assembled Leg Structure and line up the emerging points of the Washer Head Screws with the appropriate pilot holes in the Leg Mount component of the assembled Leg Structure.
- Page 4 14. Install four Phillips Head Screws through the Angle Support and into the Angle Braces, then install a Phillips Head Screw through the ends of the Angle Support and into the Leg Mounts. 15. Install the remaining Angle Support on the other side of the Angle Braces in the same manner. Angle Brace Leg Mount Phillips Head Screws...
