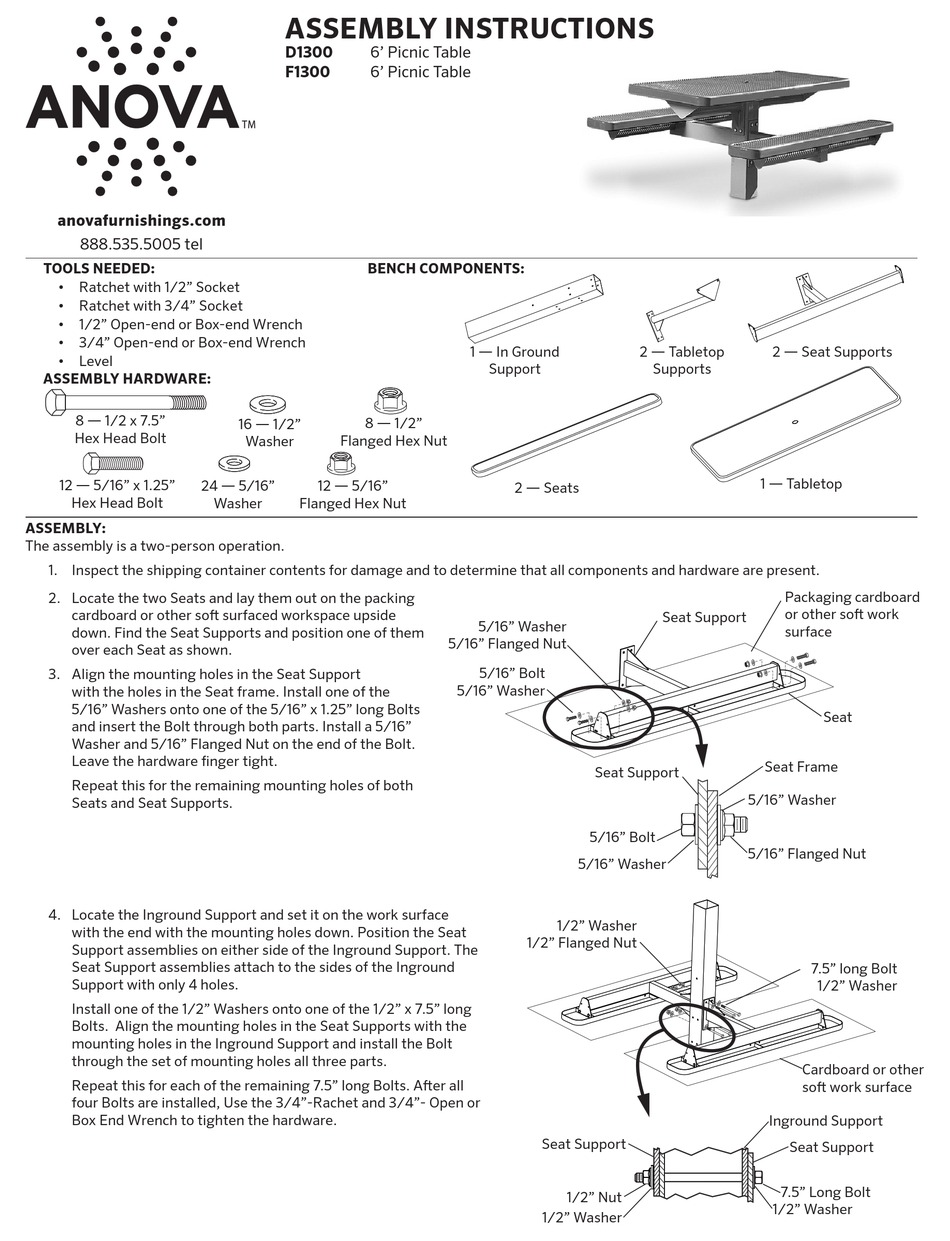

Anova D1300 Assembly & Instruction Manual

anovafurnishings.com
888.535.5005 tel
tools neeDeD:
• Ratchet with 1/2" Socket
• Ratchet with 3/4" Socket
• 1/2" Open-end or Box-end Wrench
• 3/4" Open-end or Box-end Wrench
• Level
Assembly HArDwAre:
8 — 1/2 x 7.5"
Hex Head Bolt
12 — 5/16" x 1.25"
24 — 5/16"
Hex Head Bolt
Assembly:
The assembly is a two-person operation.
1. Inspect the shipping container contents for damage and to determine that all components and hardware are present.
2. Locate the two Seats and lay them out on the packing
cardboard or other soft surfaced workspace upside
down. Find the Seat Supports and position one of them
over each Seat as shown.
3. Align the mounting holes in the Seat Support
with the holes in the Seat frame. Install one of the
5/16" Washers onto one of the 5/16" x 1.25" long Bolts
and insert the Bolt through both parts. Install a 5/16"
Washer and 5/16" Flanged Nut on the end of the Bolt.
Leave the hardware finger tight.
Repeat this for the remaining mounting holes of both
Seats and Seat Supports.
4. Locate the Inground Support and set it on the work surface
with the end with the mounting holes down. Position the Seat
Support assemblies on either side of the Inground Support. The
Seat Support assemblies attach to the sides of the Inground
Support with only 4 holes.
Install one of the 1/2" Washers onto one of the 1/2" x 7.5" long
Bolts. Align the mounting holes in the Seat Supports with the
mounting holes in the Inground Support and install the Bolt
through the set of mounting holes all three parts.
Repeat this for each of the remaining 7.5" long Bolts. After all
four Bolts are installed, Use the 3/4"-Rachet and 3/4"- Open or
Box End Wrench to tighten the hardware.
Assembly InstructIons
D1300
6' Picnic Table
F1300 6' Picnic Table
bencH components:
8 — 1/2"
16 — 1/2"
Washer Flanged Hex Nut
12 — 5/16"
Washer Flanged Hex Nut
1 — In Ground
Support
2 — Seats
5/16" Washer
5/16" Flanged Nut
5/16" Bolt
5/16" Washer
Seat Support
5/16" Bolt
5/16" Washer
1/2" Washer
1/2" Flanged Nut
Seat Support
1/2" Nut
1/2" Washer
2 — Tabletop 2 — Seat Supports
Supports
1 — Tabletop
Packaging cardboard
or other soft work
Seat Support
surface
Seat Frame
5/16" Washer
5/16" Flanged Nut
7.5" long Bolt
1/2" Washer
Cardboard or other
soft work surface
Inground Support
Seat Support
7.5" Long Bolt
1/2" Washer
Seat
