Anova D114 Assembly Instructions

anovafurnishings.com
888.535.5005 tel

TOOLS NEEDED:

• Ratchet with 1/2" socket
• 1/2" Open-end or box-end wrench
• Phillips screwdriver
• Rubber mallet

TABLE COMPONENTS:

(1) Table Top
ASSEMBLY HARDWARE: All hardware is stainless steel.
(8) 5/16" - 18 x 1 1/4"
Hex Head Bolts

Assembly:

The assembly is a two-person operation.
1. Inspect the shipping container contents for damage and to determine that all components and hardware are present.
2. Lay all parts on a soft work surface or on the shipping packaging to prevent damage to finish.
NOTE: Before assembling the nuts to the bolts, it is
recommended that a light oil or petroleum jelly be applied to
the screw threads.
3. Locate the table top and place it upside down on the work
surface as shown.
4. Position one of the supports next to the mounting flange of
the table top. Align the mounting holes in the support with the
mounting holes of the flange.
5. Place a flat washer on one of the 1 1/4" hex head bolts and insert
the bolt through one of the mounting holes in the table top
mounting flange and the table top support. Place a flat washer
and nylock nut on the end of the bolt and tighten it finger tight.
Repeat this process on the other side of the table top support.
Leave the hardware finger tight so adjustments can be made
during assembly.
6. Repeat Steps 4 and 5 for the remaining three table top supports.

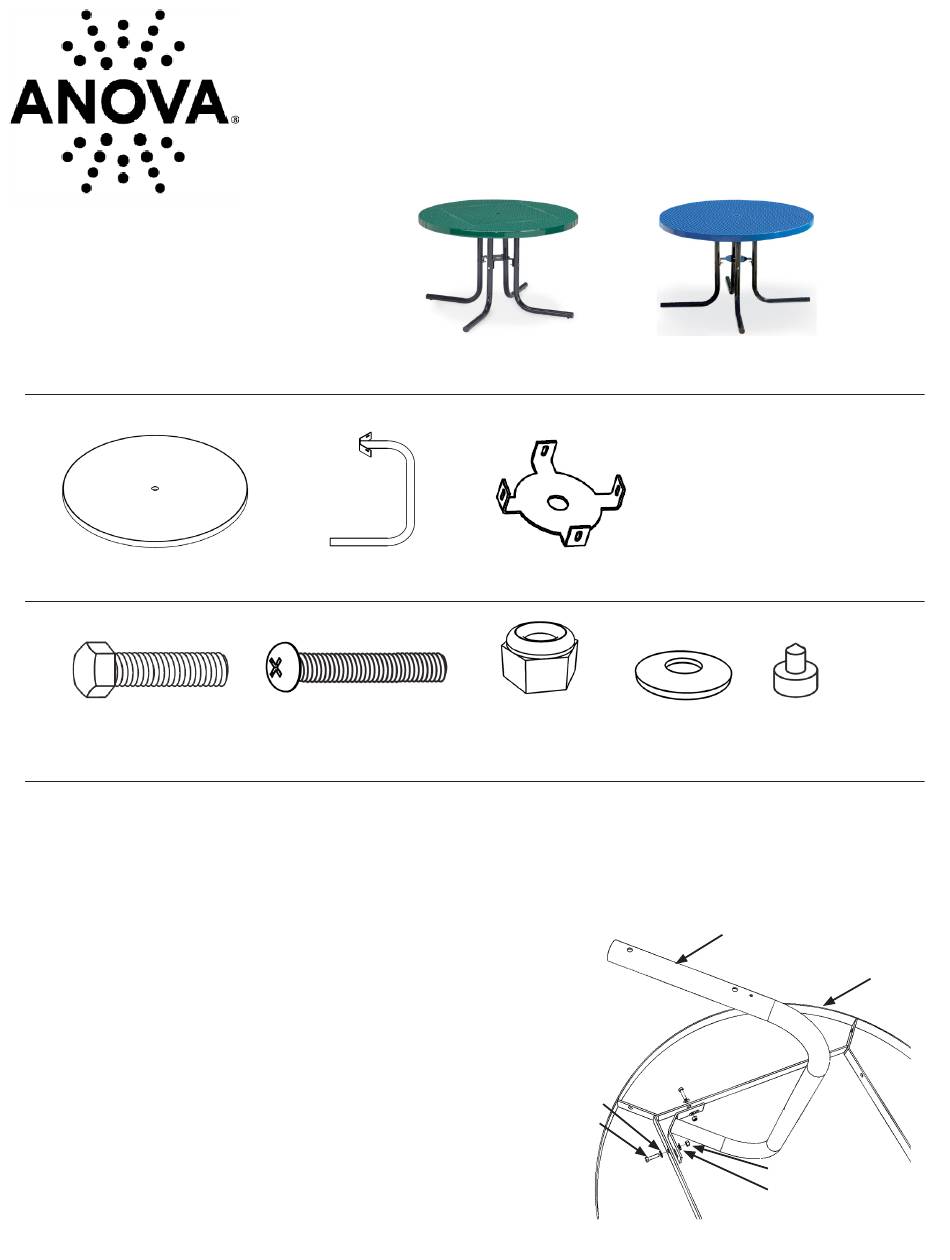

Assembly Instructions
Streetside Café Tables

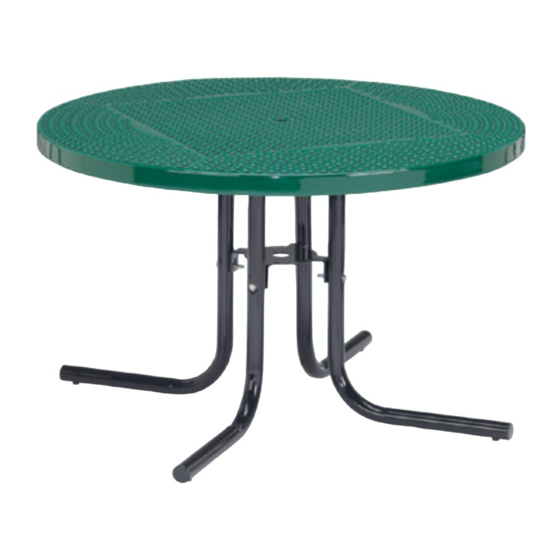

D1147 - 46" Round Perforated Steel Table
F1147 - 46" Round Expanded Steel Table
Round Perforated Steel Table
(4) Table Top Supports
(4) 5/16 - 18 x 2 1/2"
Phillips Head Screws
Round Expanded Steel Table
(1) Cross Brace
(12) 5/16" - 18 (24) 5/16" Flat
Nylock Nuts Washers
5/16" Flat Washer
5/16"-18 x 1 1/4"
Hex Head Bolt
(8) Plugs
Table Top Support
Table Top
5/16" -18 Nylock Nut
5/16" Flat Washer
1
