KTM 990 Adventure Repair Manual page 50

3-19
2
6
8
9
bl
1
3
4
7
5
9
bk
bl

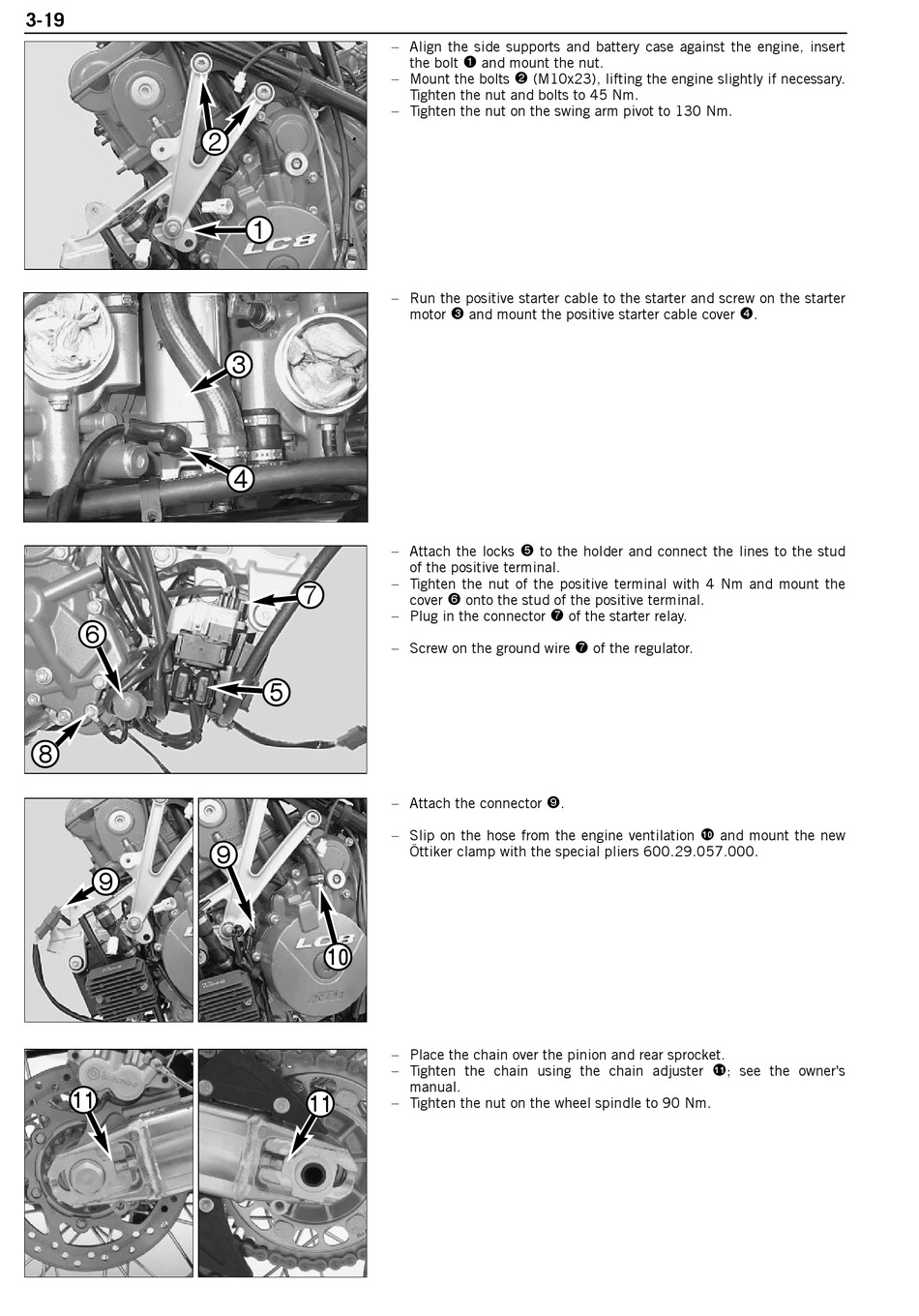

– Align the side supports and battery case against the engine, insert
the bolt and mount the nut.
1
– Mount the bolts (M10x23), lifting the engine slightly if necessary.
2
Tighten the nut and bolts to 45 Nm.
– Tighten the nut on the swing arm pivot to 130 Nm.
– Run the positive starter cable to the starter and screw on the starter
motor and mount the positive starter cable cover
3
– Attach the locks to the holder and connect the lines to the stud
5
of the positive terminal.
– Tighten the nut of the positive terminal with 4 Nm and mount the
cover onto the stud of the positive terminal.
6
– Plug in the connector
7
– Screw on the ground wire
– Attach the connector .
9
– Slip on the hose from the engine ventilation
Öttiker clamp with the special pliers 600.29.057.000.
– Place the chain over the pinion and rear sprocket.
– Tighten the chain using the chain adjuster
manual.
– Tighten the nut on the wheel spindle to 90 Nm.
4
of the starter relay.
of the regulator.
7
and mount the new
bk
; see the owner's
bl
.
